Transaxle Range (Tr) Switch Adjustment

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the fresh-air duct and air cleaner component. (See INTAKE AIR SYSTEM .)
  3. Remove the splash shield.
  4. Remove the clip and disconnect the selector cable.
    Fig 1: Removing Clip And Disconnecting Selector Cable
    G01914434Courtesy of MAZDA MOTORS CORP.
  5. Rotate the manual shaft to the converter housing side fully, then return 2 notches to set the N position.
    Fig 2: Identifying Converter Housing Side Shaft Position
    G01914435Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the TR switch connector.

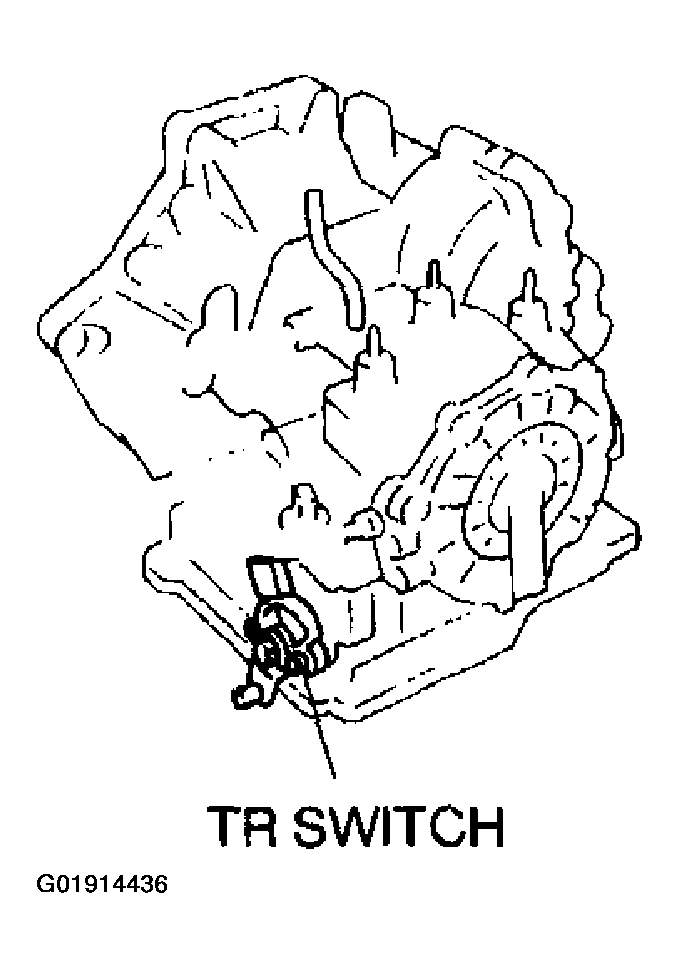

    Fig 3: Disconnecting TR Switch Connector
    G01914436Courtesy of MAZDA MOTORS CORP.
  7. Loosen the TR switch mounting bolts.

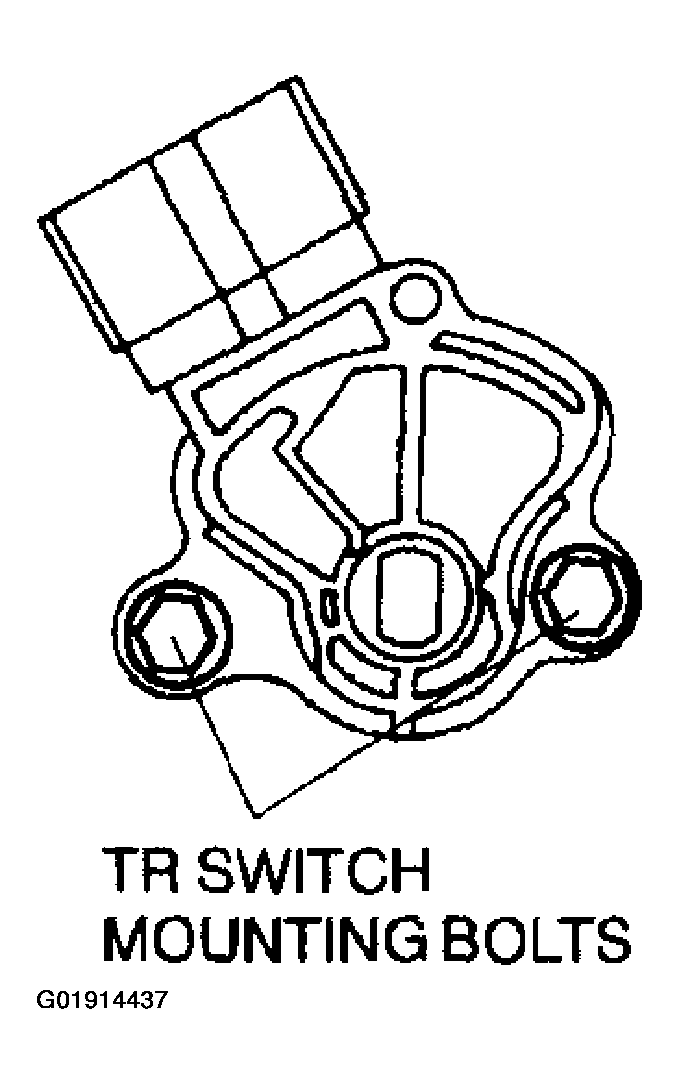

    Fig 4: Removing TR Switch Mounting Bolts
    G01914437Courtesy of MAZDA MOTORS CORP.
  8. Connect an ohmmeter between terminals B and H.
  9. Adjust the switch to the point where there is continuity between the terminals.
  10. Tighten the TR switch mounting bolts.

    Tightening Torque

    7.9-10.7 N.m {80-110 kgf.cm, 69.5-95.4 in.lbf}

    Fig 5: Identifying Connector Terminal
    G01914438Courtesy of MAZDA MOTORS CORP.
  11. Verify that the selector lever range position and TR switch are aligned.
  12. Connect the TR switch connector.
  13. Install the clip as shown in the figure.
    Fig 6: Installing Clip
    G01914439Courtesy of MAZDA MOTORS CORP.
  14. Connect the selector cable.
  15. Install the splash shield.
  16. Install the air cleaner component and fresh-air duct. (See INTAKE AIR SYSTEM .)
  17. Connect the negative battery cable.
    Fig 7: Connecting Negative Battery Cable
    G01914440Courtesy of MAZDA MOTORS CORP.
