Transaxle Fluid Temperature (TFT) Sensor Inspection

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Measure the resistance between the terminals E and H.
- If it is out of specifications, replace the TFT sensor. (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION .)

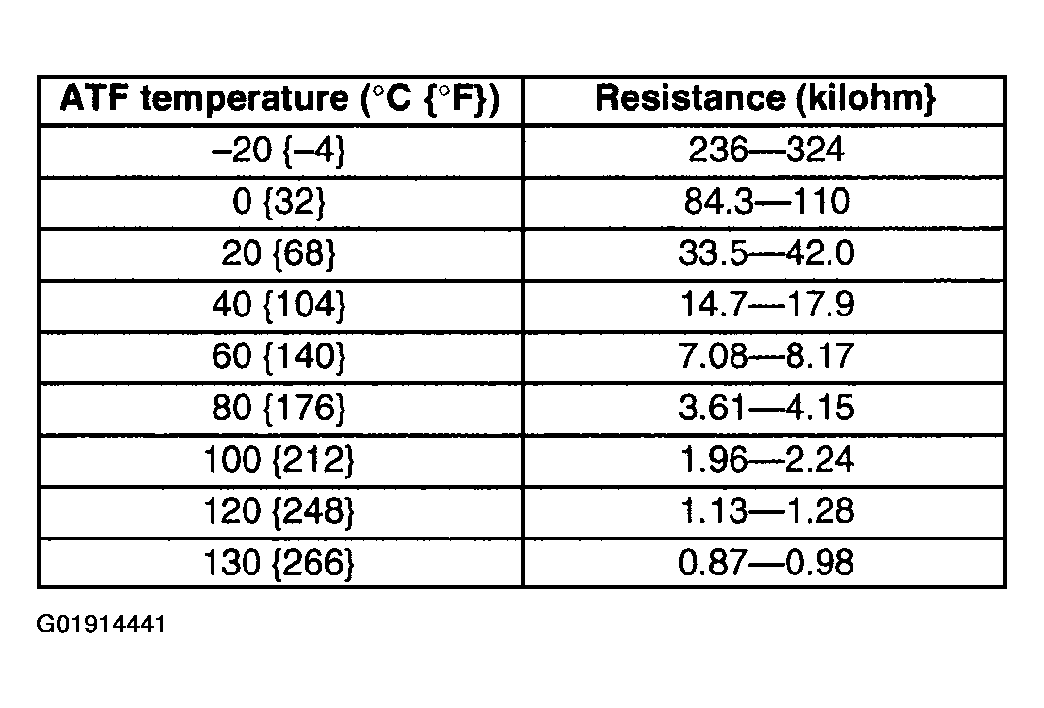

  Fig 1: Temperature And Resistance Chart
  Courtesy of MAZDA MOTORS CORP.

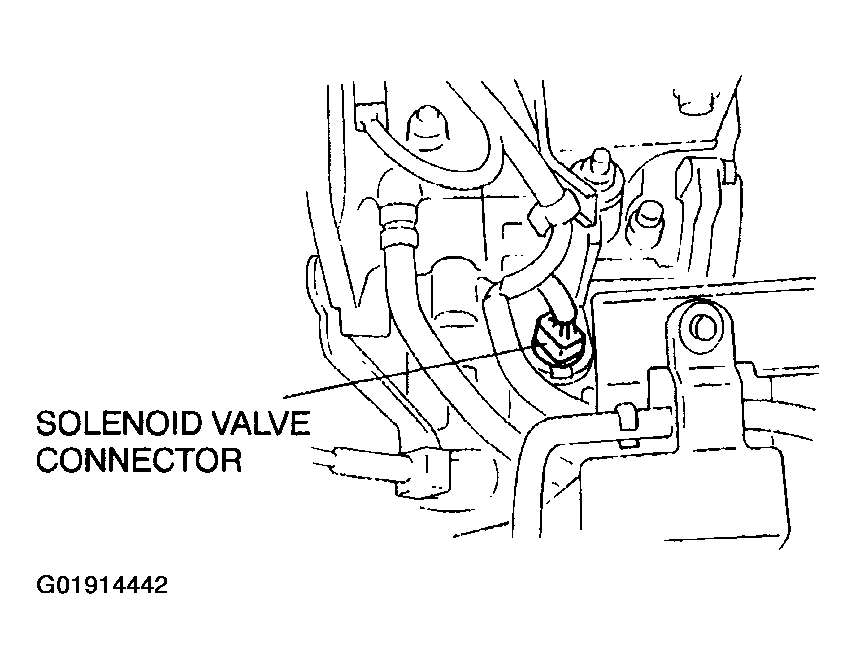

  Fig 2: Identifying Solenoid Valve Connector
  Courtesy of MAZDA MOTORS CORP.

  Fig 3: Temperature And Resistance Graph
  Courtesy of MAZDA MOTORS CORP.

  Fig 4: Identifying Part Side Connector
  Courtesy of MAZDA MOTORS CORP.
