Front Door Trim Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inner garnish.
  2. Remove the regulator handle if equipped.
  3. Remove screws A and the fastener.
  4. Slide the pull handle cover toward the front of the vehicle, then disengage tab B from the front door trim.
  5. Remove the screws C.
  6. Disengage clips D using a fastener remover from the body.
  7. Pull the front door trim upward, then disengage pins E from the body.
  8. Extract the inner handle from the front door trim.
  9. Disconnect the power window main switch connector (driver's side).
  10. Disconnect the power window sub switch connector (passenger's side).

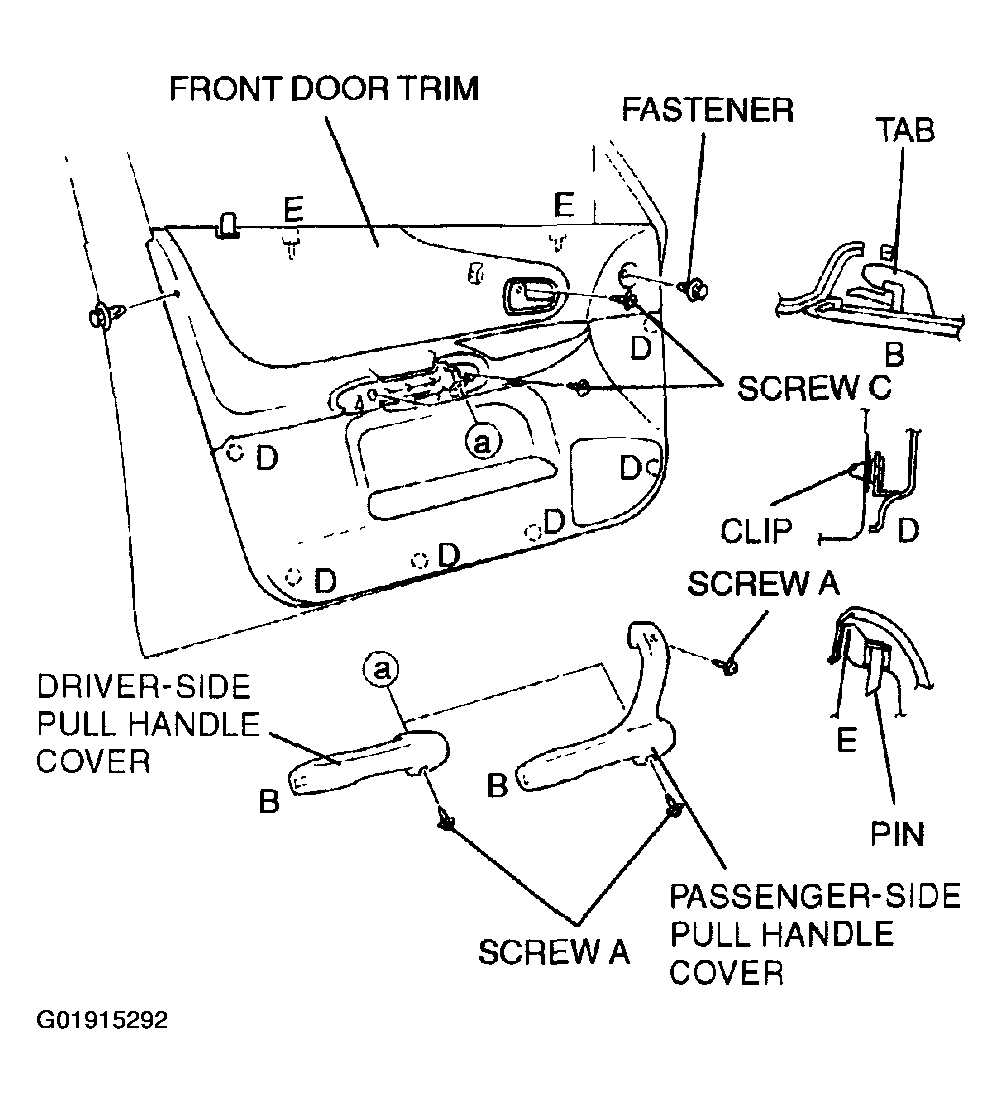

    Fig 1: Removing Front Door Trim
    G01915292Courtesy of MAZDA MOTORS CORP.
  11. Install in the reverse order of removal.
