Rear Wiper and Washer

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
Inspect for continuity between the wiper and washer switch terminals using an ohmmeter.
- If not as specified, replace the wiper and washer switch.
Fig 1: Rear Wiper And Washer Terminals Continuity Reference Chart
Courtesy of MAZDA MOTORS CORP.

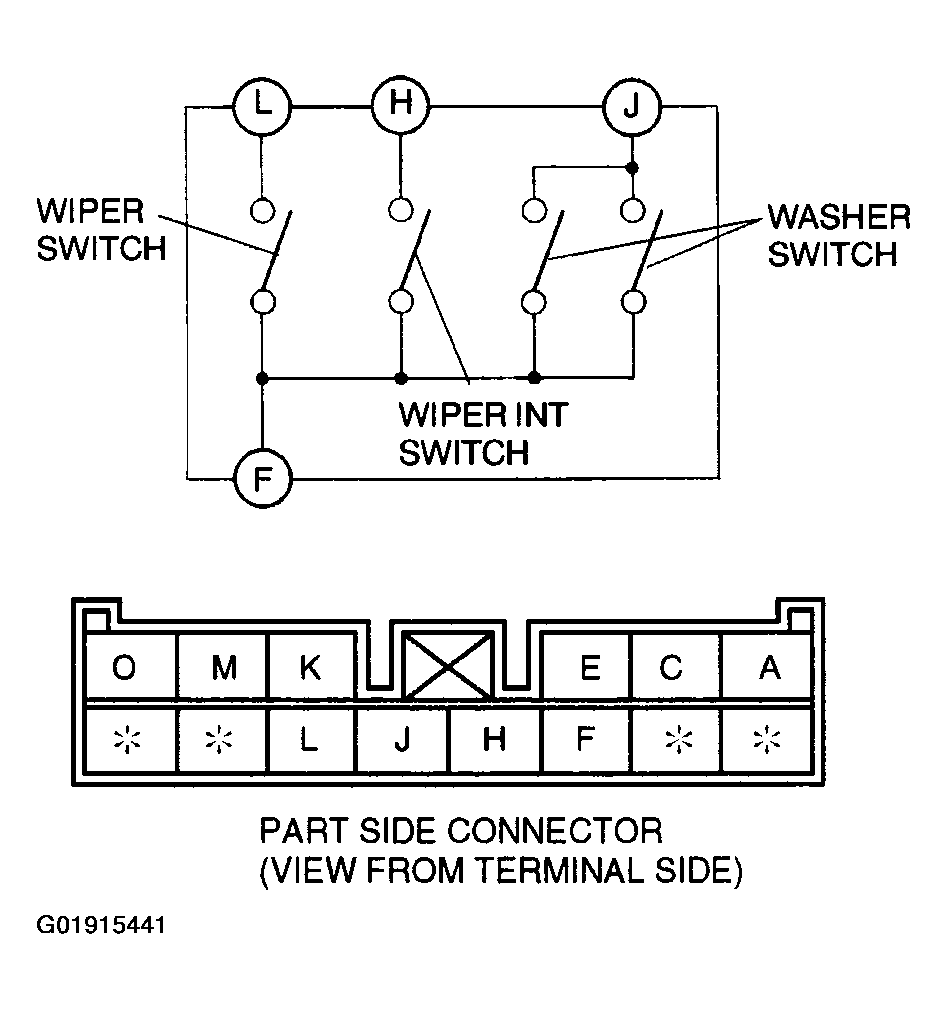

Fig 2: Inspecting For Continuity Between Wiper And Washer Switch Terminals
Courtesy of MAZDA MOTORS CORP.
