Headliner Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Turn the seaming welt and weatherstrip over.
  3. Remove the A-pillar trims. (See A-PILLAR TRIM REMOVAL/INSTALLATION  .)
  4. Remove the B-pillar upper trims. (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION  .)
  5. Remove the C-pillar trims. (See C-PILLAR TRIM REMOVAL/INSTALLATION  .)
  6. Remove the interior and map light if not equipped with a sliding sunroof. (See INTERIOR AND MAP LIGHT REMOVAL/INSTALLATION .)
  7. Remove the map light and interior light if equipped with a sliding sunroof. (See INTERIOR LIGHT REMOVAL/INSTALLATION .) (See MAP LIGHT REMOVAL/INSTALLATION .)
  8. Remove the screws then remove the sunvisor and assist handle.
  9. Fold tabs A up if equipped with a sliding sunroof.
  10. Remove the fasteners.

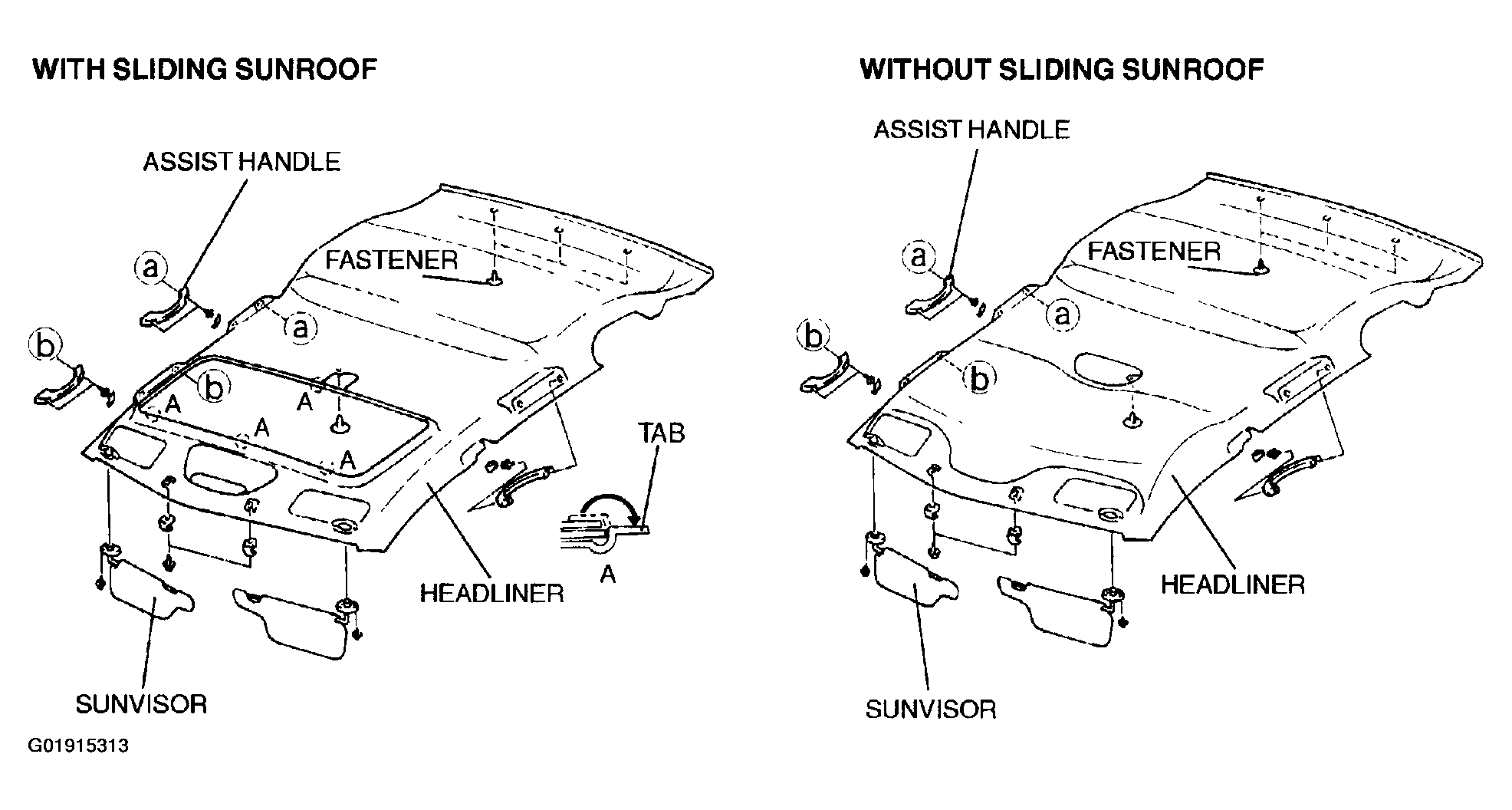

    Fig 1: Removing Roof Headliner
    G01915313Courtesy of MAZDA MOTORS CORP.
  11. Remove the headliner diagonally from the passenger-side front door frame.
    Fig 2: Removing Headliner Diagonally From Passenger-Side Front Door Frame
    G01915314Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • To protect the trim, seaming welt, etc. from scratches when removing the headliner from the vehicle, affix protective tape to the console, shift lever knob and door frame.
    Fig 3: Installing Headliner Diagonally To Passenger-Side Front Door Frame
    G01915315Courtesy of MAZDA MOTORS CORP.
  12. Install in the reverse order of removal.
