A-Pillar Trim Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the seaming welt over.
  2. Disengage clips A and B using a fastener remover.
  3. Pull the A-pillar trim upward, then disengage hooks C and D.

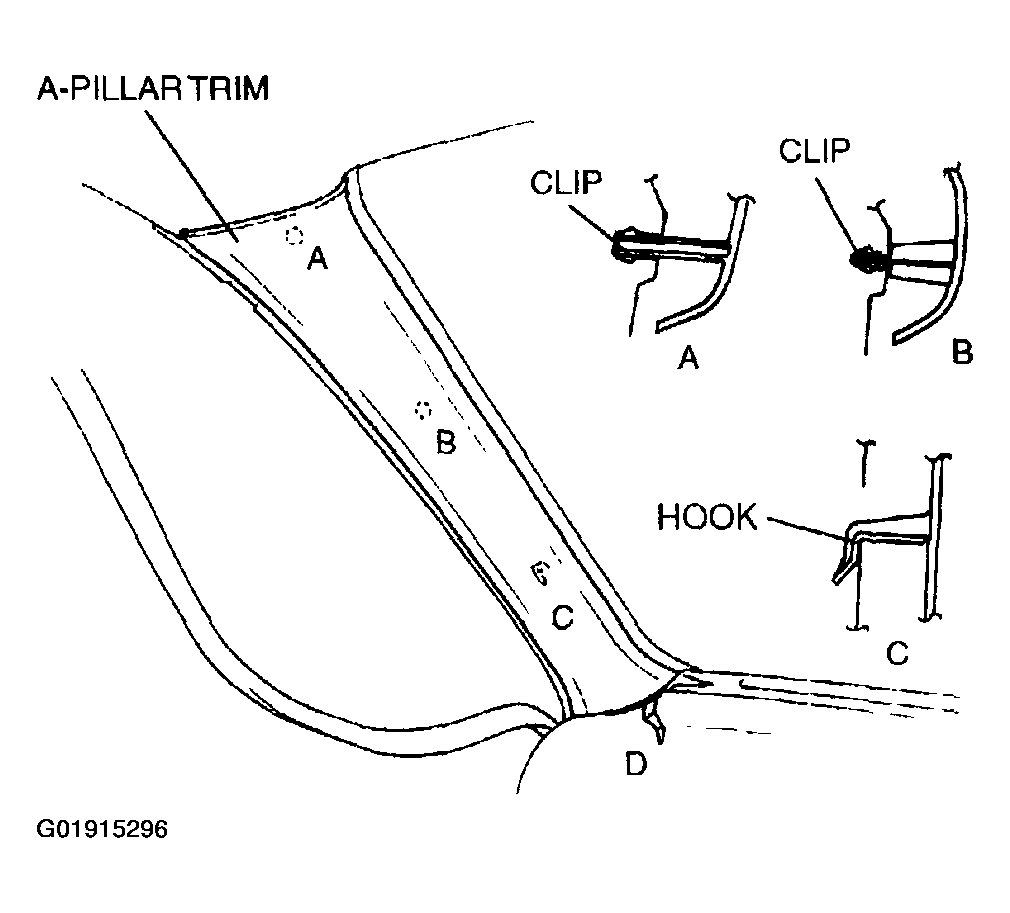

    Fig 1: Removing A-Pillar Trim
    G01915296Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
