Rear Door Lock And Opener Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the rear door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.
    Fig 1: Removing Rear Door Lock And Opener Order Table
    G01915133Courtesy of MAZDA MOTORS CORP.

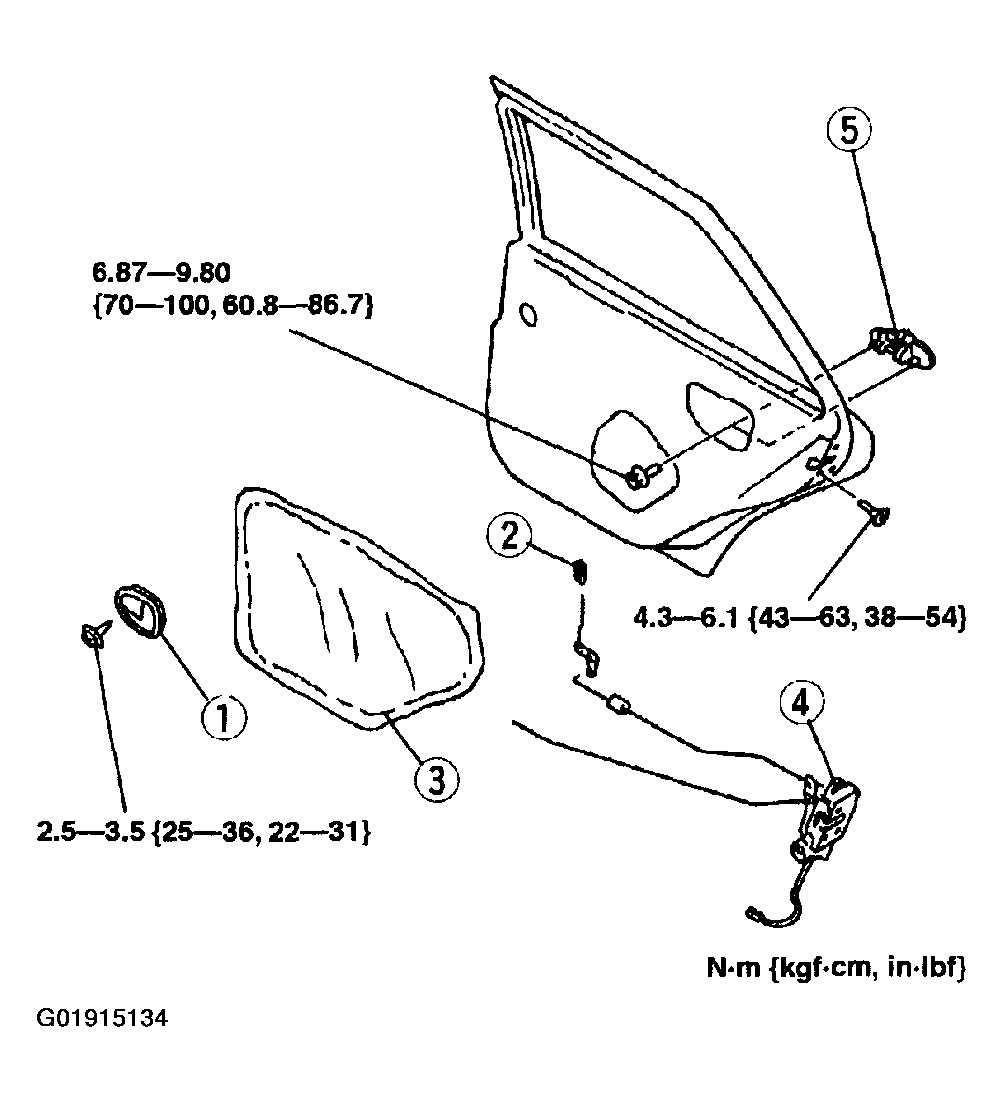

    Fig 2: Removing Rear Door Lock And Opener Components
    G01915134Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
