Rear Door Trim Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable if equipped with power window.
Remove the regulator handle if equipped.
Insert a tape-wrapped fastener remover under the pull-handle cover, and disengage tab A.

Fig 1: Inserting Tape-Wrapped Fastener Remover Under Pull-Handle Cover
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver into the access hole under the forward pull-handle cover, and remove the pull-handle cover by pulling it upward and diagonally while pushing clip B.

Fig 2: Removing Pull-Handle Cover Using Tape-Wrapped Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.

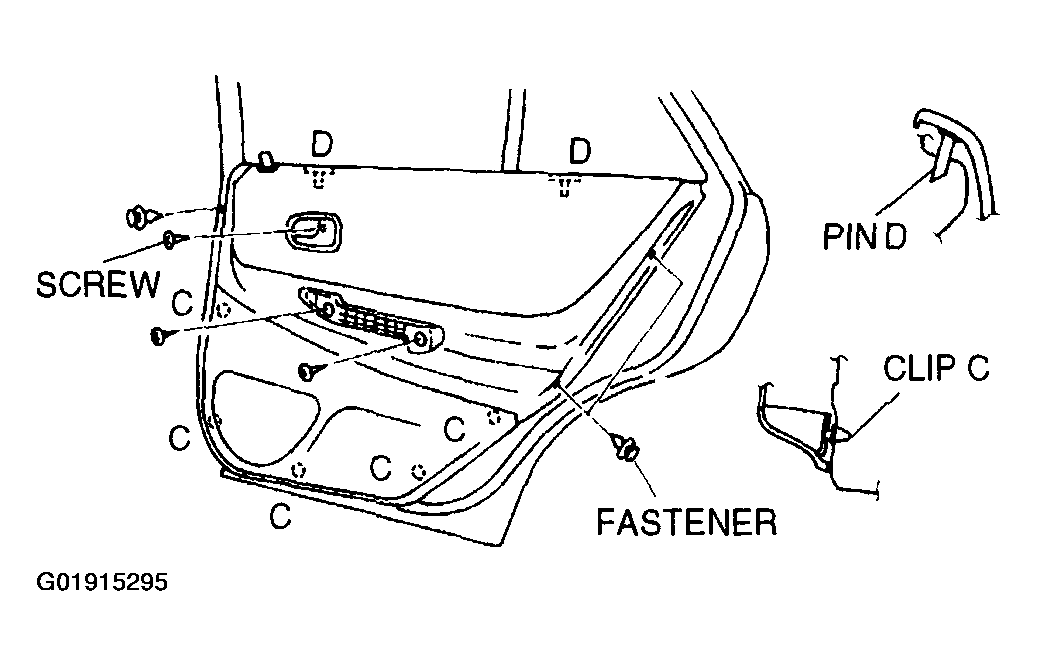

Remove the screws and fasteners.
Disengage clips C using a fastener remover.
Pull the rear door trim upward, then disengage pins D from the body.
Disconnect the power window sub switch connector if equipped.
Remove the inner handle from the rear door trim.

Fig 3: Removing Inner Handle From Rear Door Trim
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
