Fuel-Filler Lid And Opener Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. To remove the fuel-filler lid opener, remove the left side trunk side trim.
  2. To remove the fuel-filler lid opener cable, perform the following.
    1. Remove the driver's seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
    2. Remove the driver-side front and rear scuff plate.
    3. Remove the driver-side B-pillar lower trim.
    4. Remove the driver's seat belt lower anchor.
    5. Remove the driver-side tire house trim.
    6. Remove the driver-side trunk side trim.
    7. Turn the floor covering over.

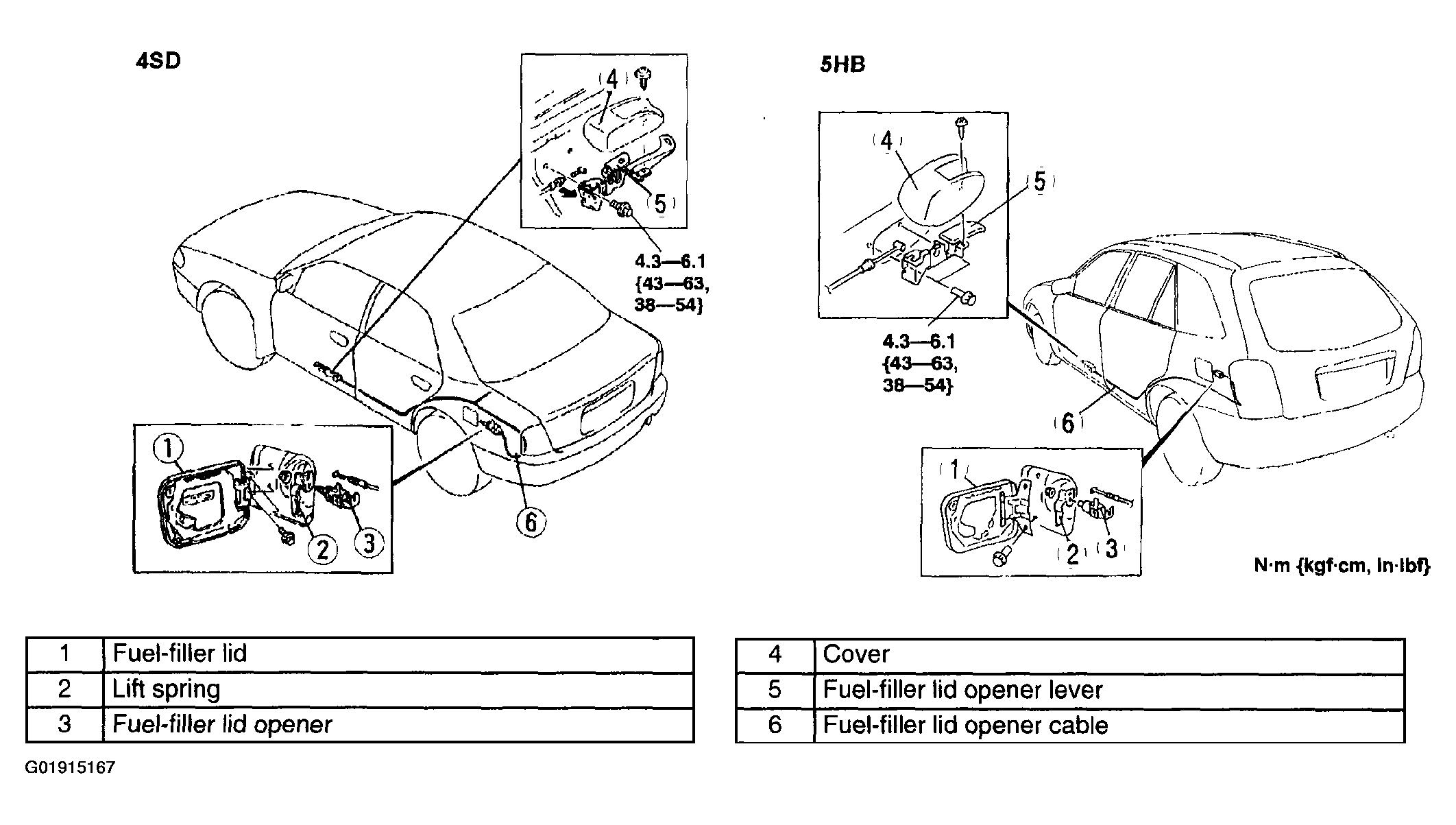

    Fig 1: Removing Fuel-Filler Lid And Opener
    G01915167Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. Remove in the order indicated in the table.
  5. Adjust the fuel-filler lid. (See FUEL-FILLER LID ADJUSTMENT .)
