Front Door Lock And Opener Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the front door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the illustration.
    Fig 1: Front Door Lock And Opener Removing Order
    G01915127Courtesy of MAZDA MOTORS CORP.

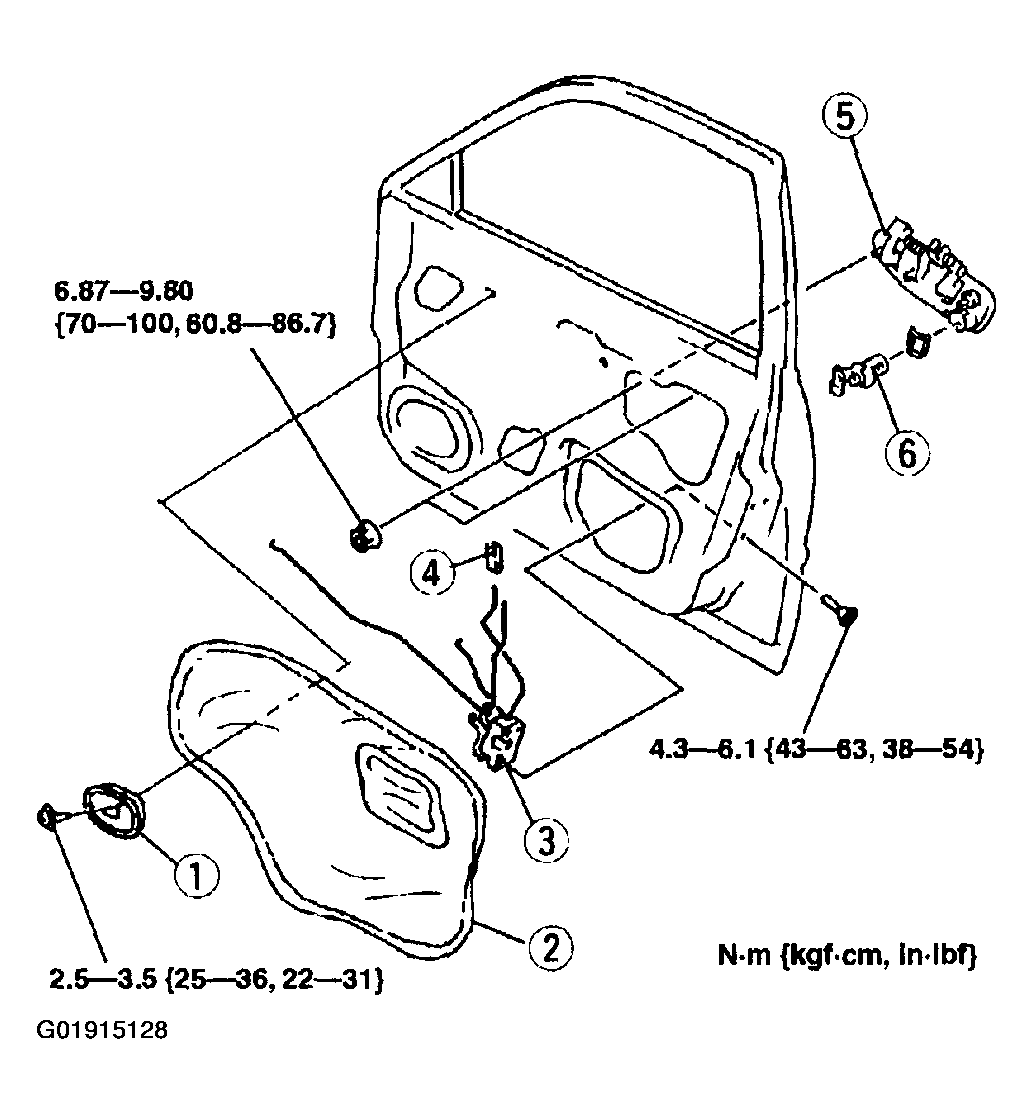

    Fig 2: Removing Front Door Lock And Opener Components
    G01915128Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
