Rear Door Glass And Guide Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Open the rear door glass completely.
Disconnect the negative battery cable.
Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
Remove the inner handle.
Remove in the order indicated in the table.

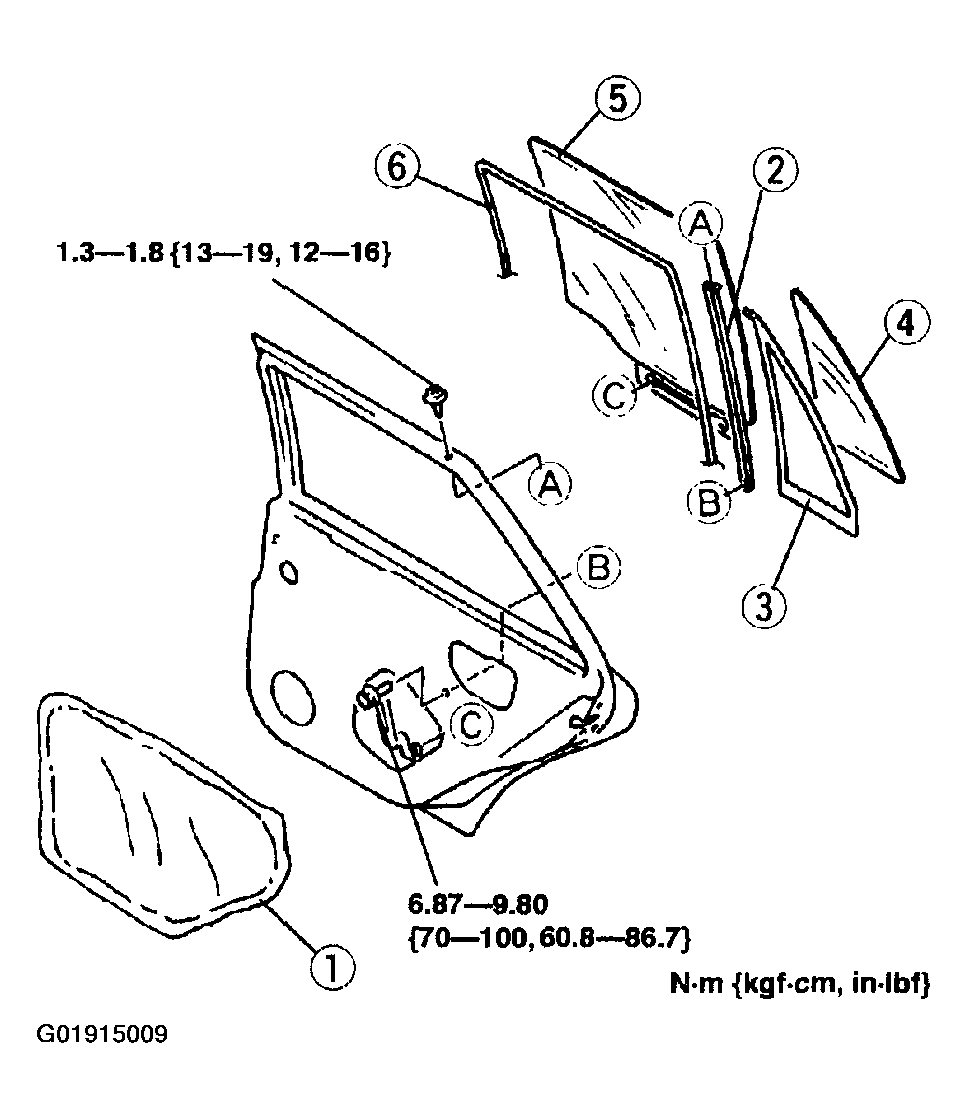

Fig 1: Identifying Removing Sequence Of Rear Door Glass And Guide (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Removing Sequence Of Rear Door Glass And Guide (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
