Power Outside Mirror Inspection

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the power outside mirror connector. (See POWER OUTSIDE MIRROR REMOVAL/INSTALLATION .)
Apply battery positive voltage to the power outside mirror and inspect the operation of the power outside mirror.
- If not as specified, replace the climate control unit.

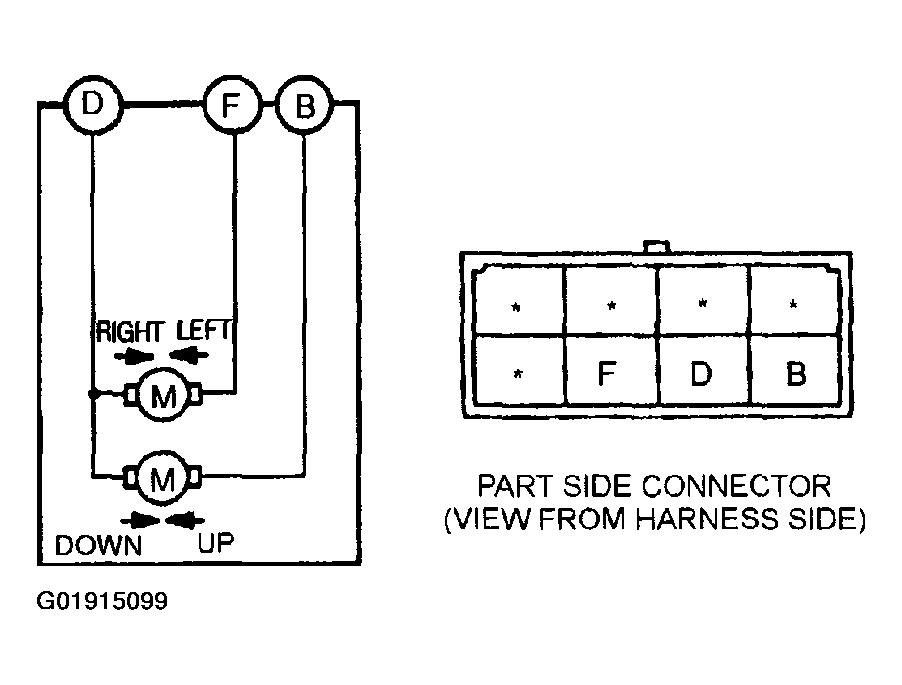

Fig 1: Power Outside Mirror Operation
Courtesy of MAZDA MOTORS CORP.

Fig 2: Inspecting Power Outside Mirror
Courtesy of MAZDA MOTORS CORP.
