Rear Door Disassembly/Assembly

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Disassemble in the order indicated in the table.
  5. Assemble in the reverse order of disassembly.

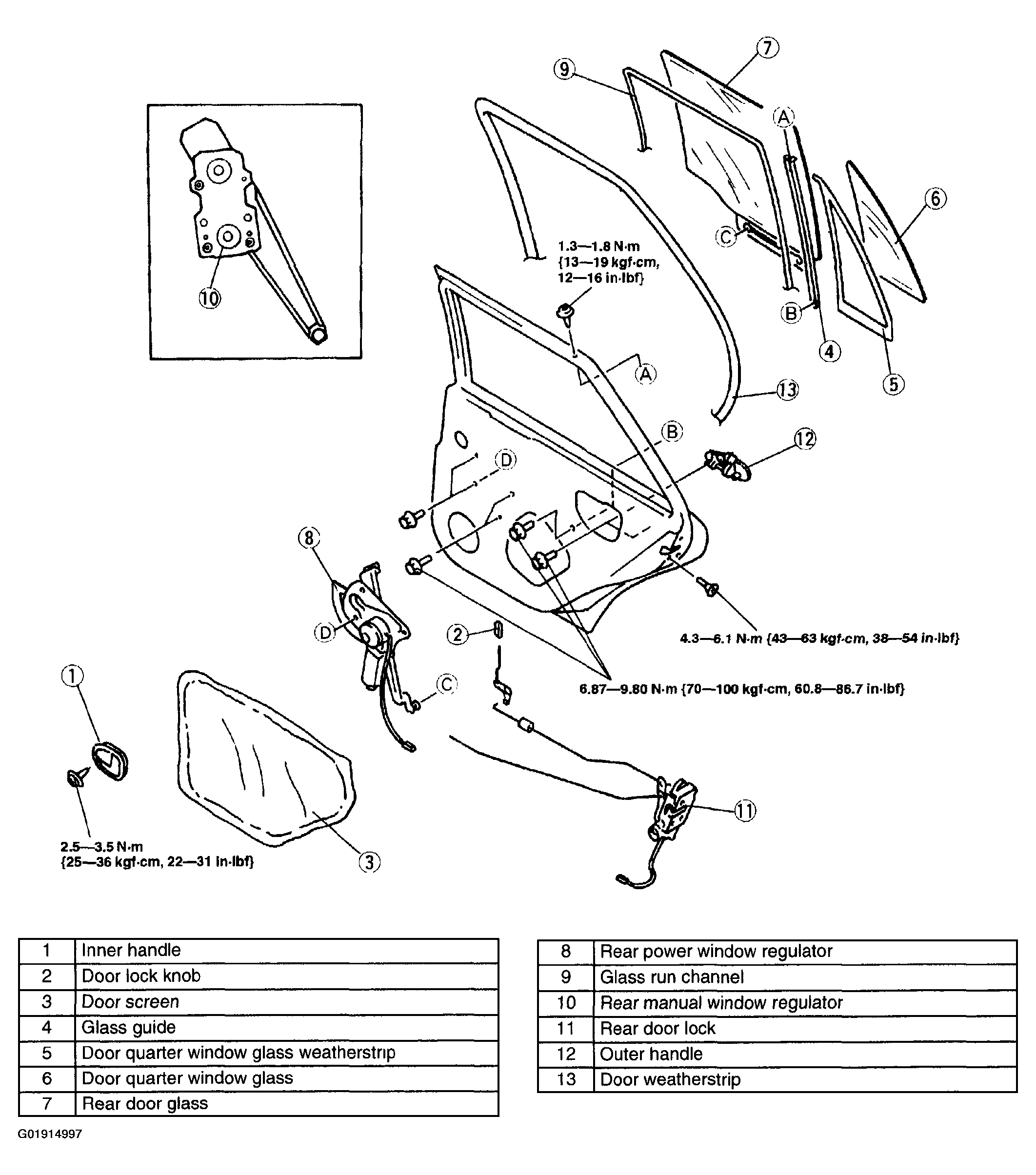

    Fig 1: Identifying Components Of Rear Door
    G01914997Courtesy of MAZDA MOTORS CORP.
