Power Steering Oil Pump Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the figure.

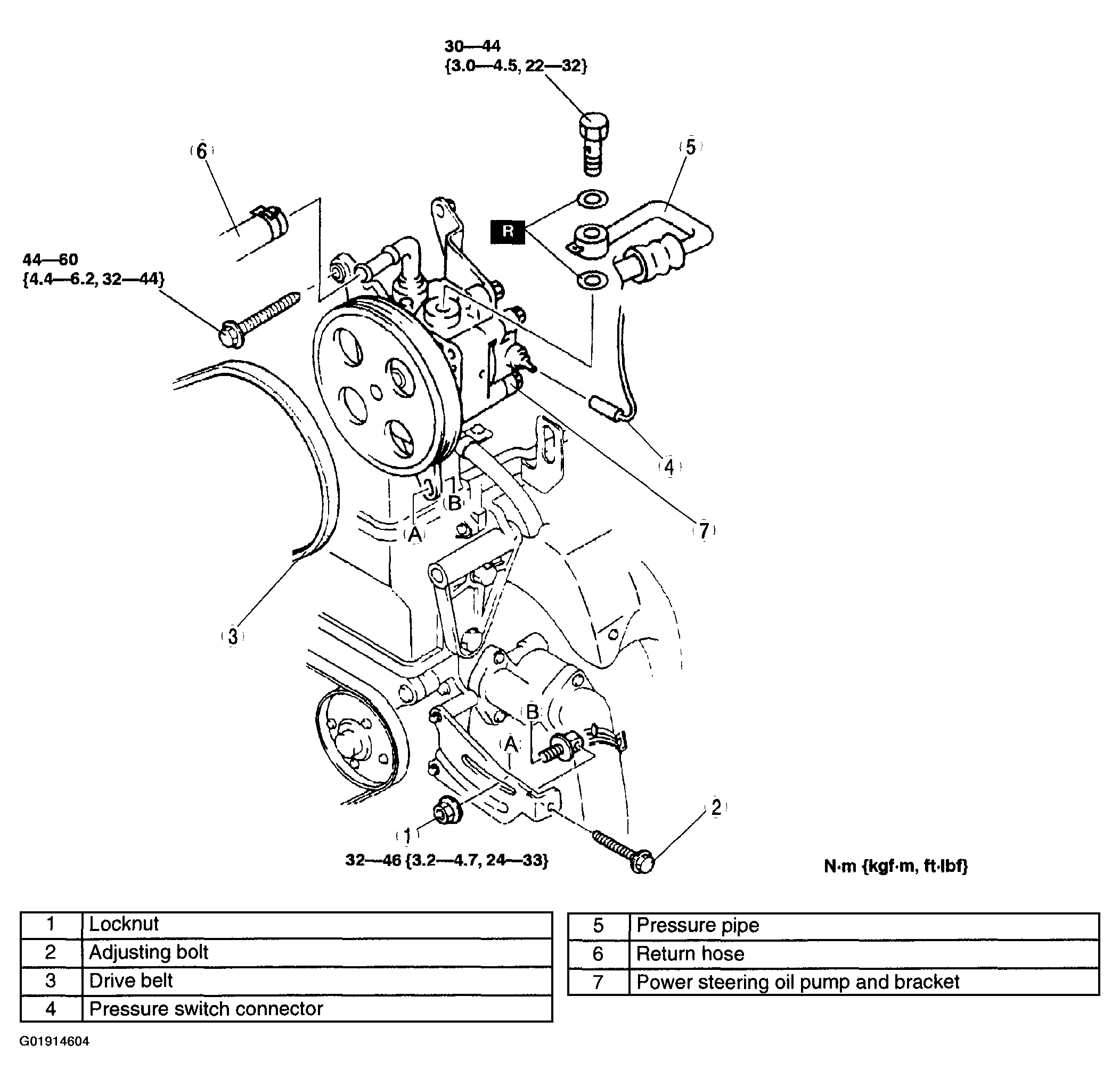

Fig 1: Removing/Installing Power Steering Oil Pump - ZM
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the drive belt. (See DRIVE BELT ADJUSTMENT (ZM) for Canadian.) (See DRIVE BELT ADJUSTMENT [FS] for US.)

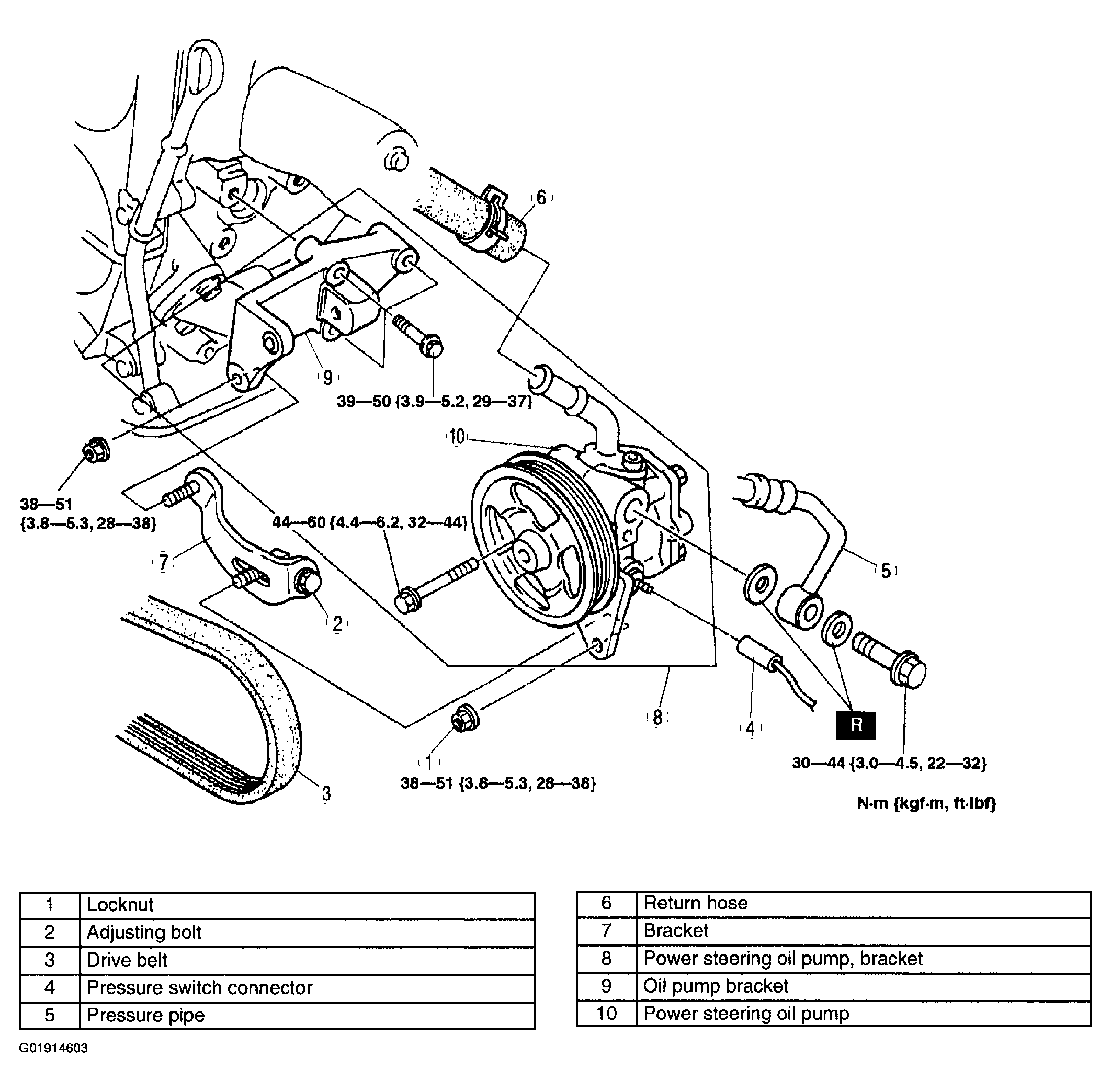

Fig 2: Removing /Installing Power Steering Oil Pump - FS, FS With TC

Courtesy of MAZDA MOTORS CORP.
