Drive Belt Adjustment

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Loosen mounting bolt A and B.

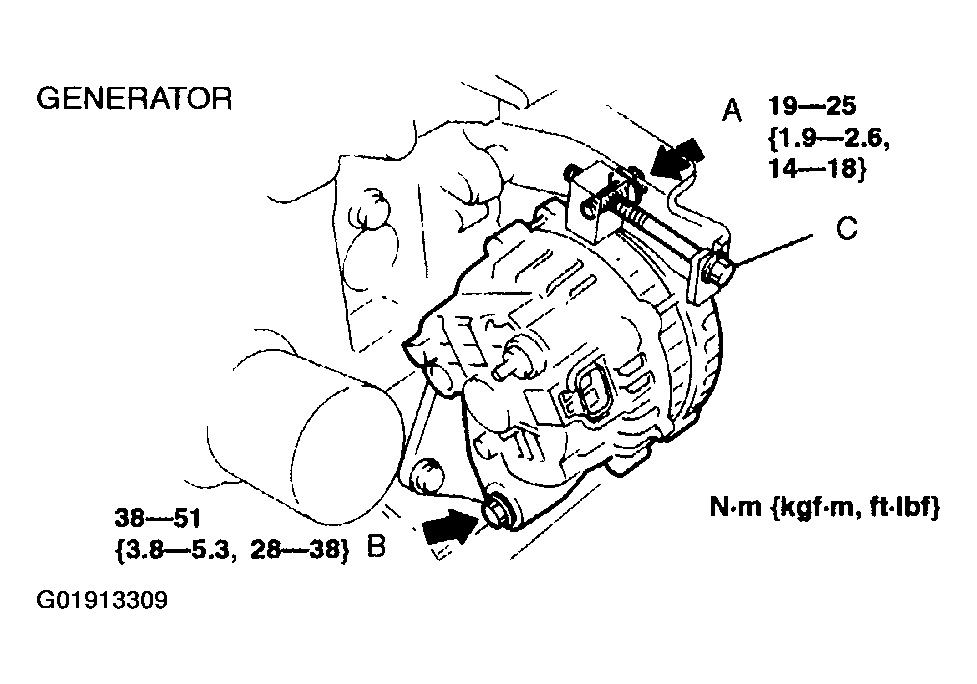

Fig 1: Adjusting Drive Belt Deflection - Generator With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Adjust the belt deflection or tension by turning the adjusting bolt C.

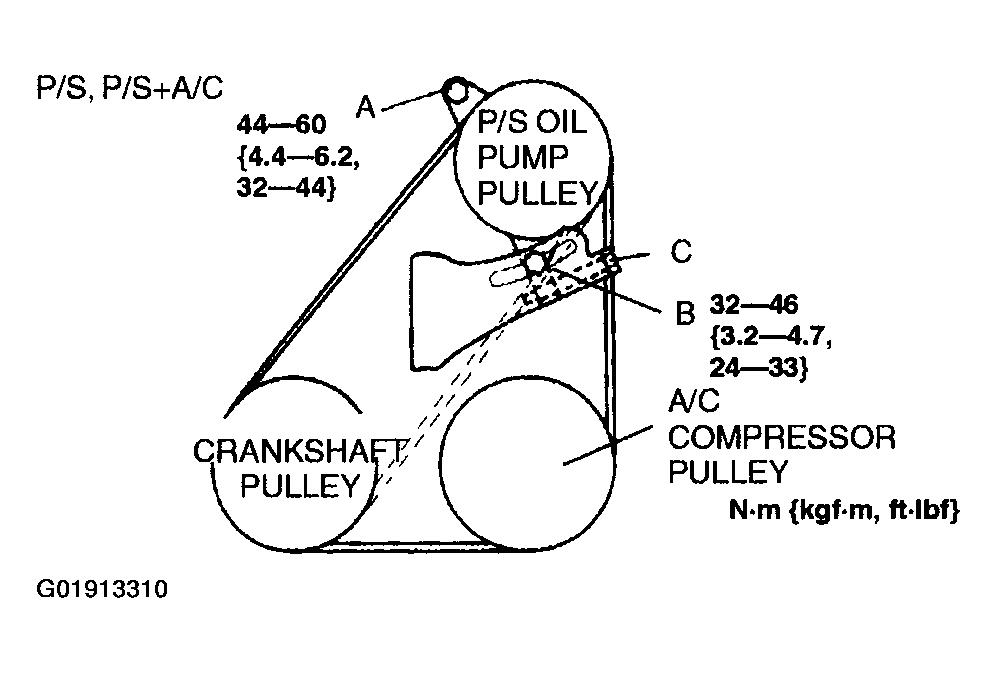

Fig 2: Adjusting Drive Belt Deflection - P/S, P/C + A/C With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the belt is replaced with a new one or the belt has been on a running engine for less than 5 minutes, adjust deflection or tension to "New" specification.
- If the belt has been on a running engine for more than 5 minutes, adjust deflection or tension to "Used" specification.
Fig 3: Adjusting Drive Belt Deflection - Generator
Courtesy of MAZDA MOTORS CORP.

Deflection

Fig 4: Drivebelt Deflection Limit
Courtesy of MAZDA MOTORS CORP.

Fig 5: Inspecting Drivebelt Deflection - P/S, P/C + A/C
Courtesy of MAZDA MOTORS CORP.

Tension

Fig 6: Drivebelt Tension Limit
Courtesy of MAZDA MOTORS CORP.
Tighten mounting bolt A and B.
Inspect the belt deflection or tension.
- If not as specified, repeat from Step 1.

  Fig 7: Inspecting Drivebelt Deflection - P/S + A/C
  Courtesy of MAZDA MOTORS CORP.
