Selector Lever Component Inspection [Sport At]

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the center console.
Disconnect the selector lever component connector.
Inspect for continuity at the selector lever component.
- If not as specified, adjust the selector cable. (See SELECTOR LEVER ADJUSTMENT .)

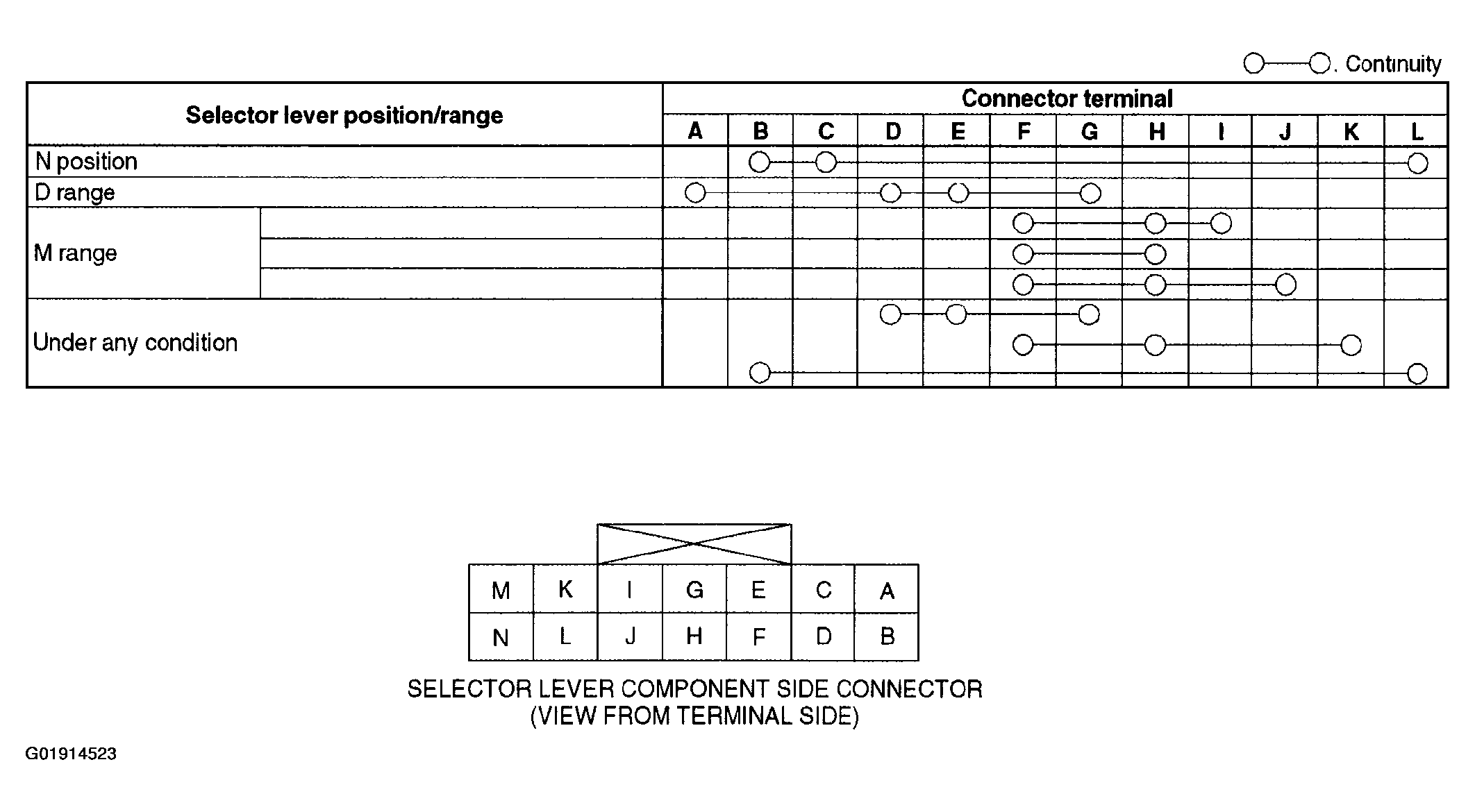

  Fig 1: Identifying Selector Lever Component Side Connector
  Courtesy of MAZDA MOTORS CORP.
