Pinpoint Test 6: No Operation In All The Temperature Settings

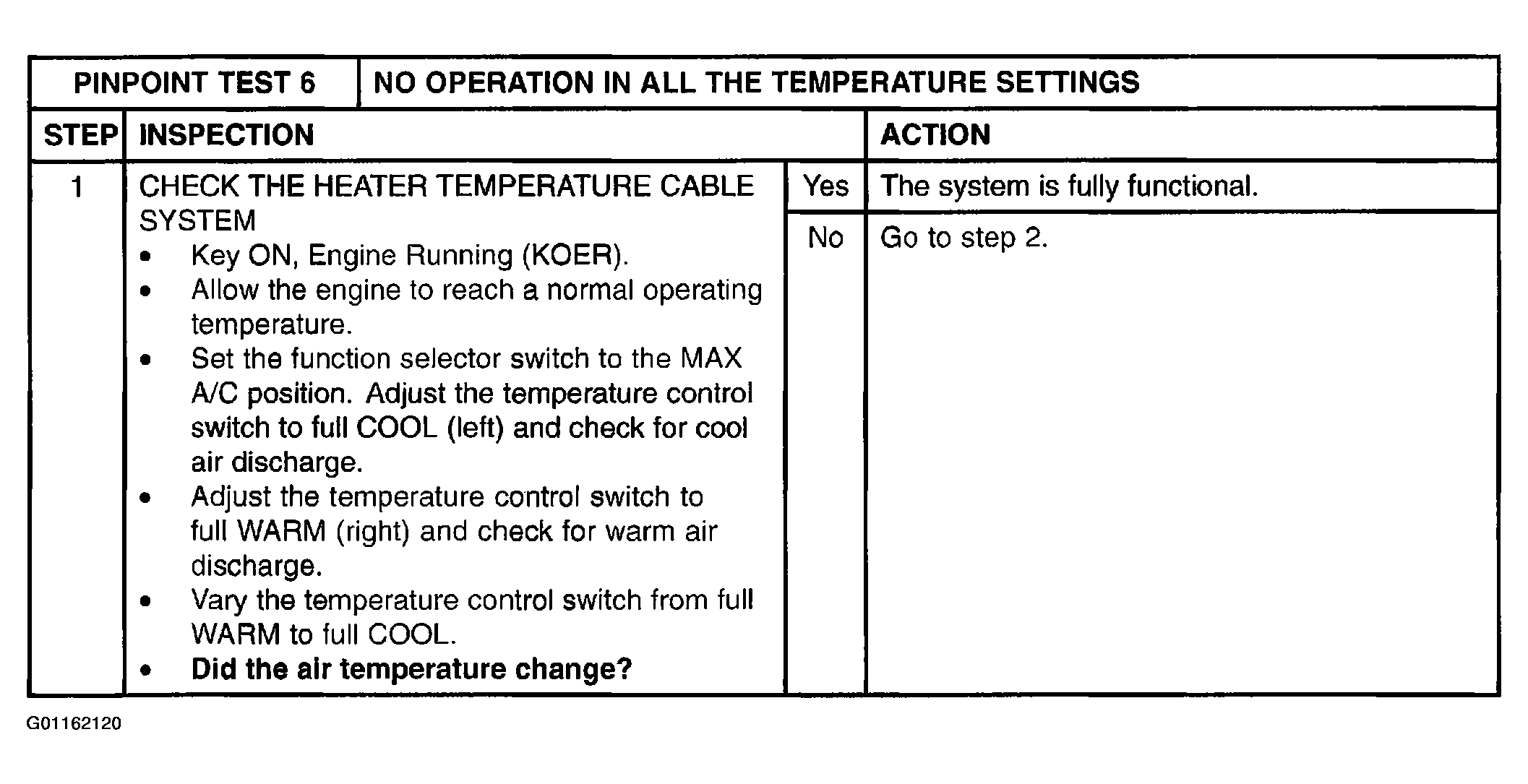

Fig 1: Pinpoint Test 6: No Operation In All The Temperature Settings (Step 1)

Courtesy of MAZDA MOTORS CORP.

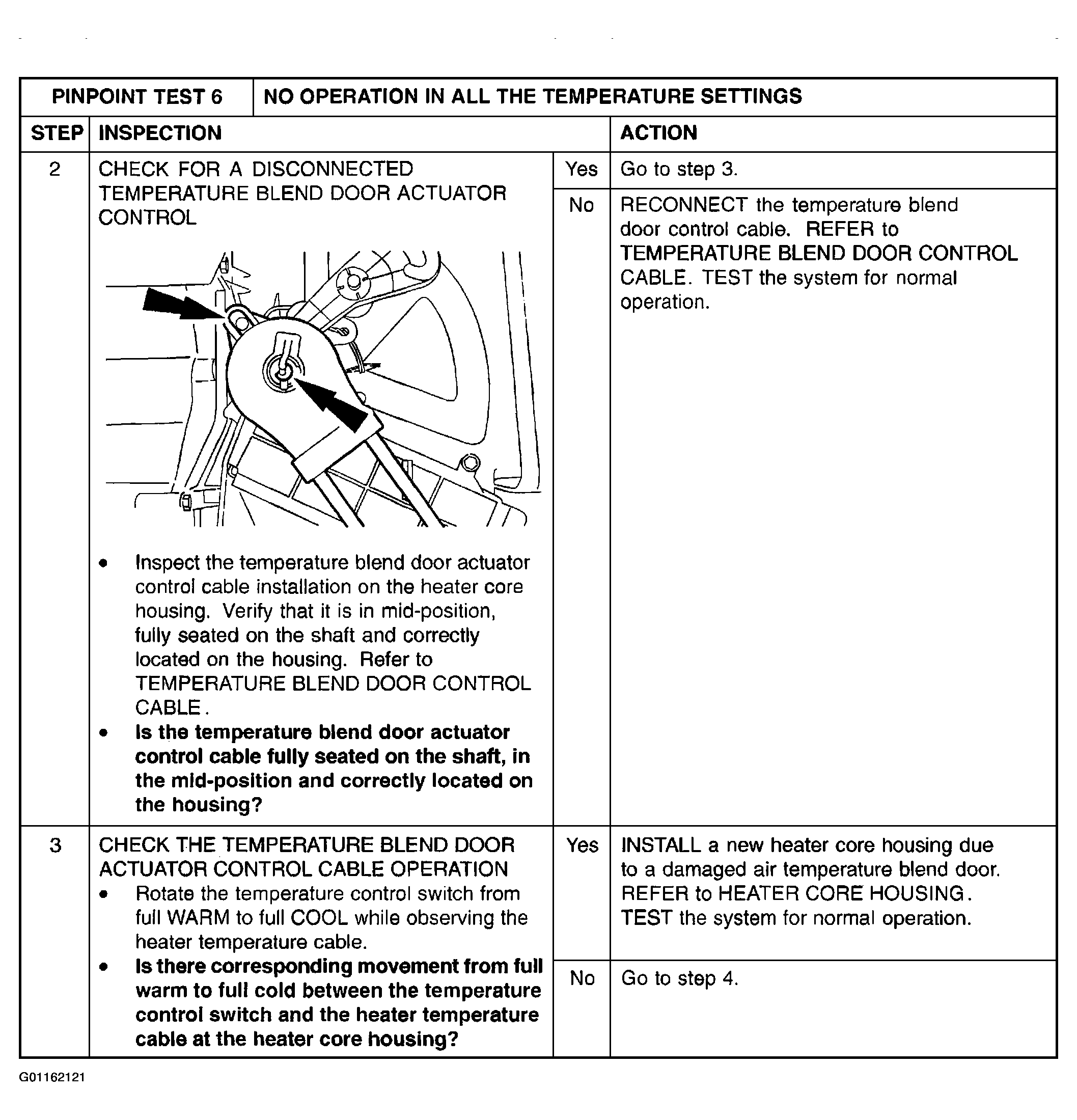

Fig 2: Pinpoint Test 6: No Operation In All The Temperature Settings (Steps 2 & 3)

Courtesy of MAZDA MOTORS CORP.

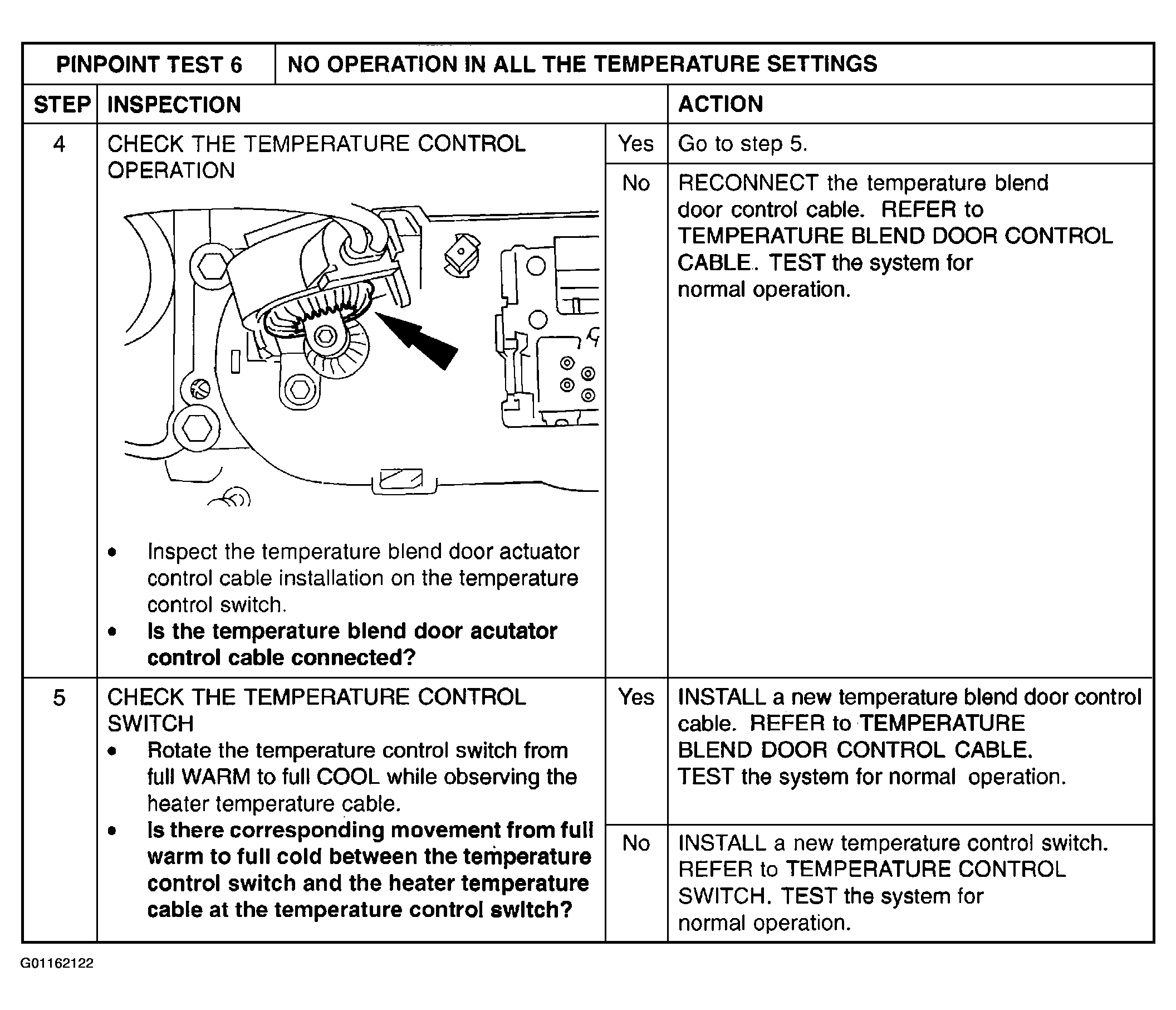

Fig 3: Pinpoint Test 6: No Operation In All The Temperature Settings (Steps 4 & 5)

Courtesy of MAZDA MOTORS CORP.
