Pinpoint Test 5: Insufficient Air Conditioning (A/C) Cooling

NOTE:

• Verify the cooling fans are operating correctly. If the cooling fans are inoperative, high system pressures and insufficient cooling will result.

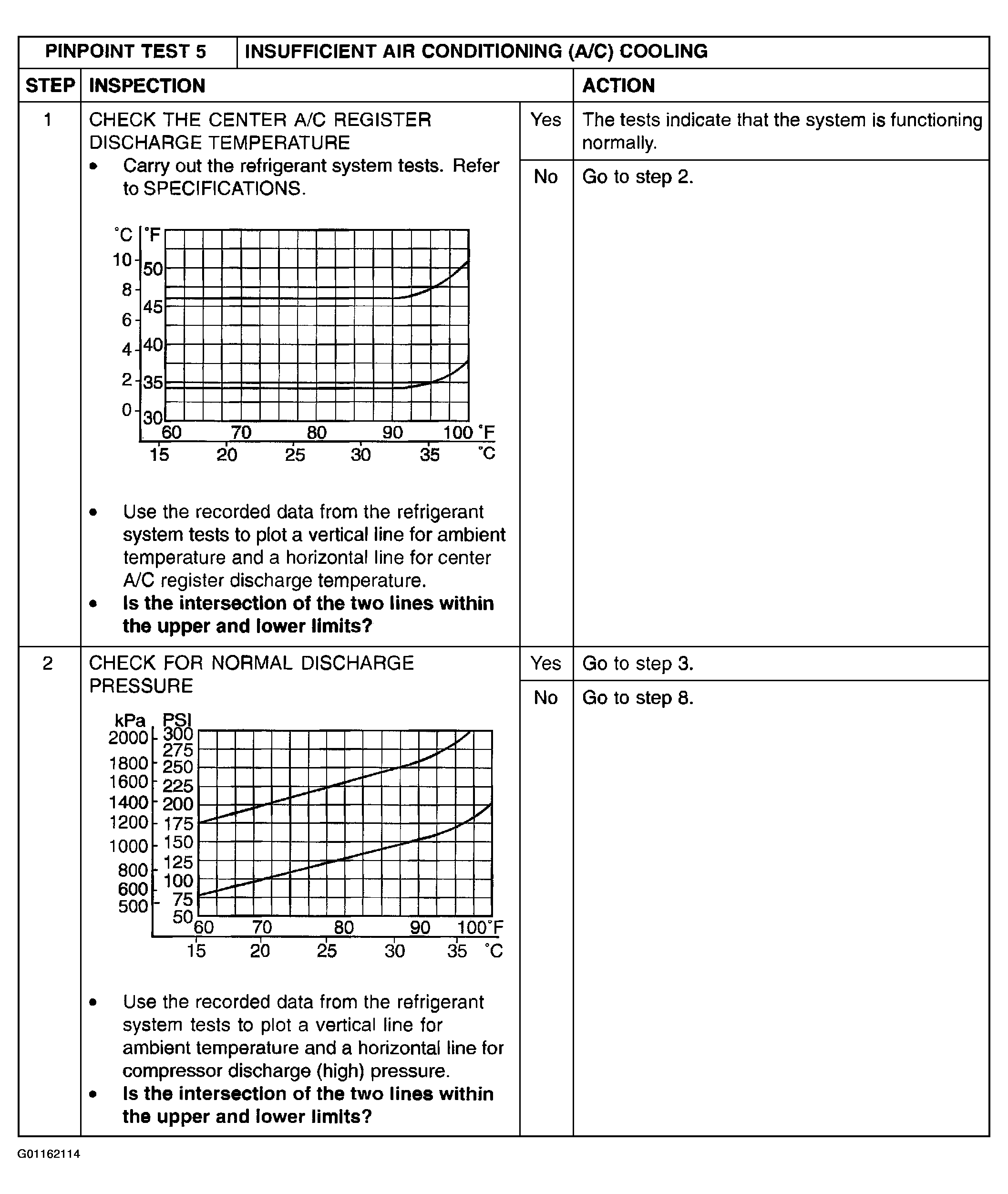

Fig 1: Pinpoint Test 5: Insufficient Air Conditioning (A/C) Cooling (Steps 1 & 2)

Courtesy of MAZDA MOTORS CORP.

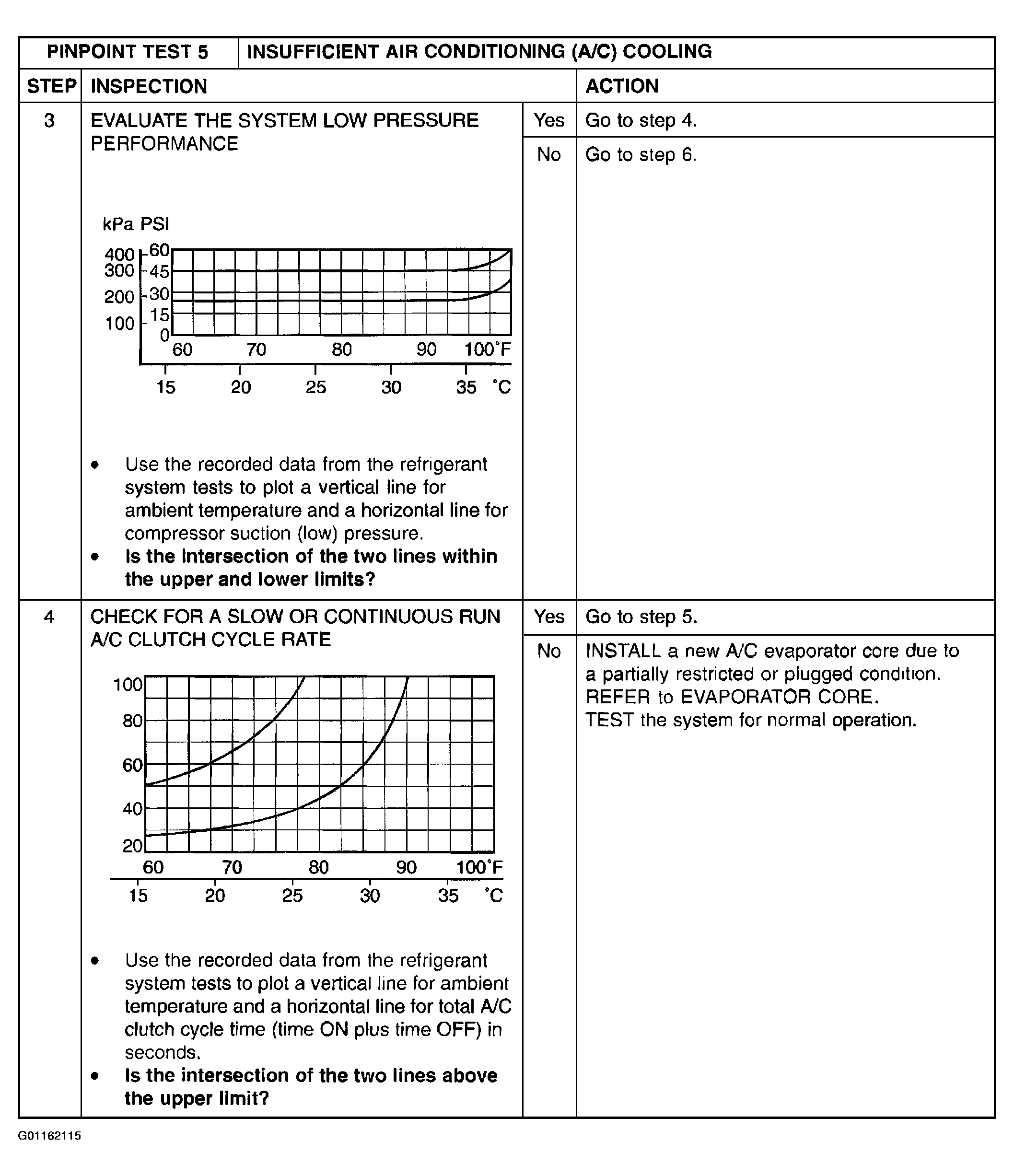

Fig 2: Pinpoint Test 5: Insufficient Air Conditioning (A/C) Cooling (Steps 3 & 4)

Courtesy of MAZDA MOTORS CORP.

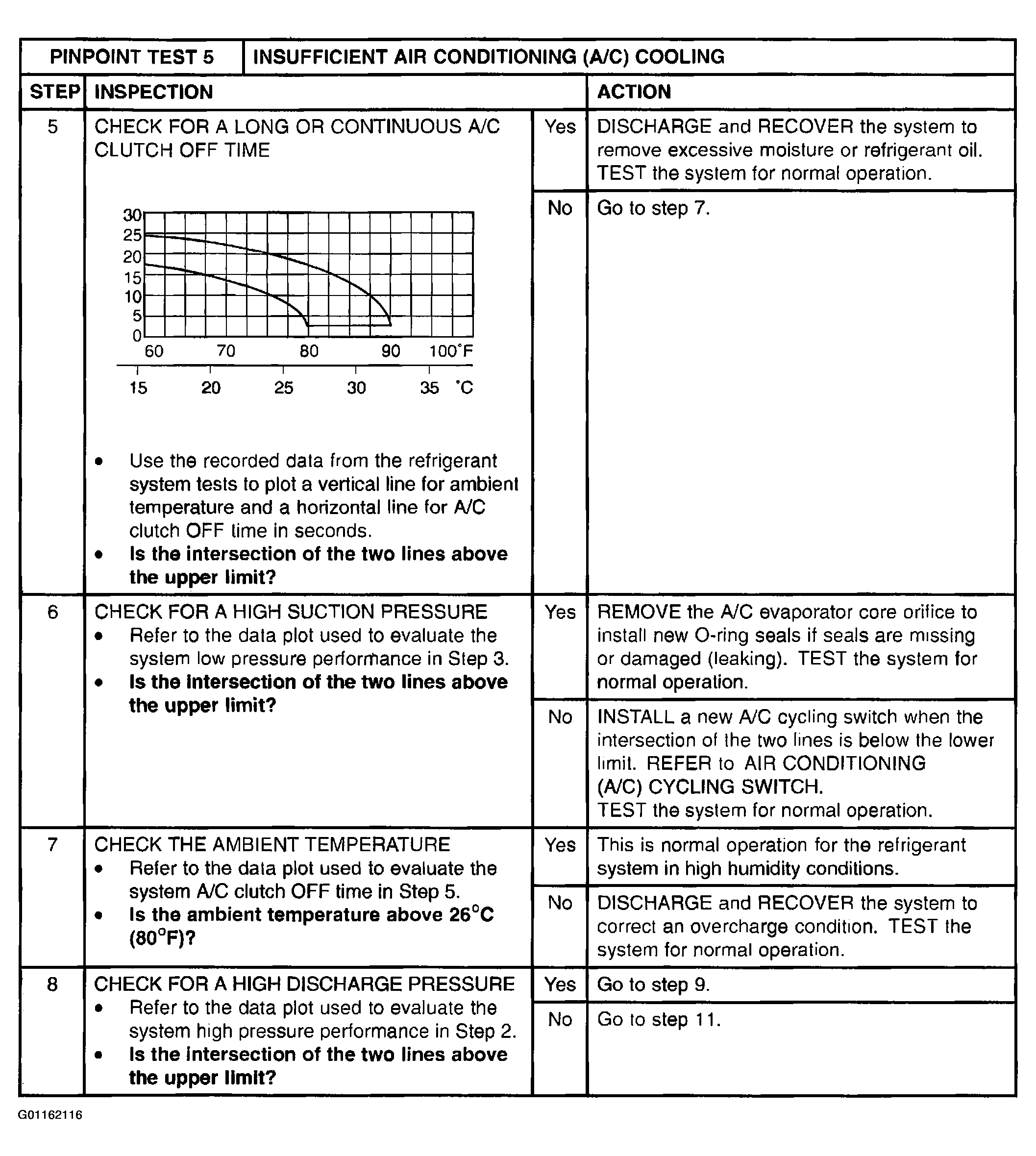

Fig 3: Pinpoint Test 5: Insufficient Air Conditioning (A/C) Cooling (Steps 5-8)

Courtesy of MAZDA MOTORS CORP.

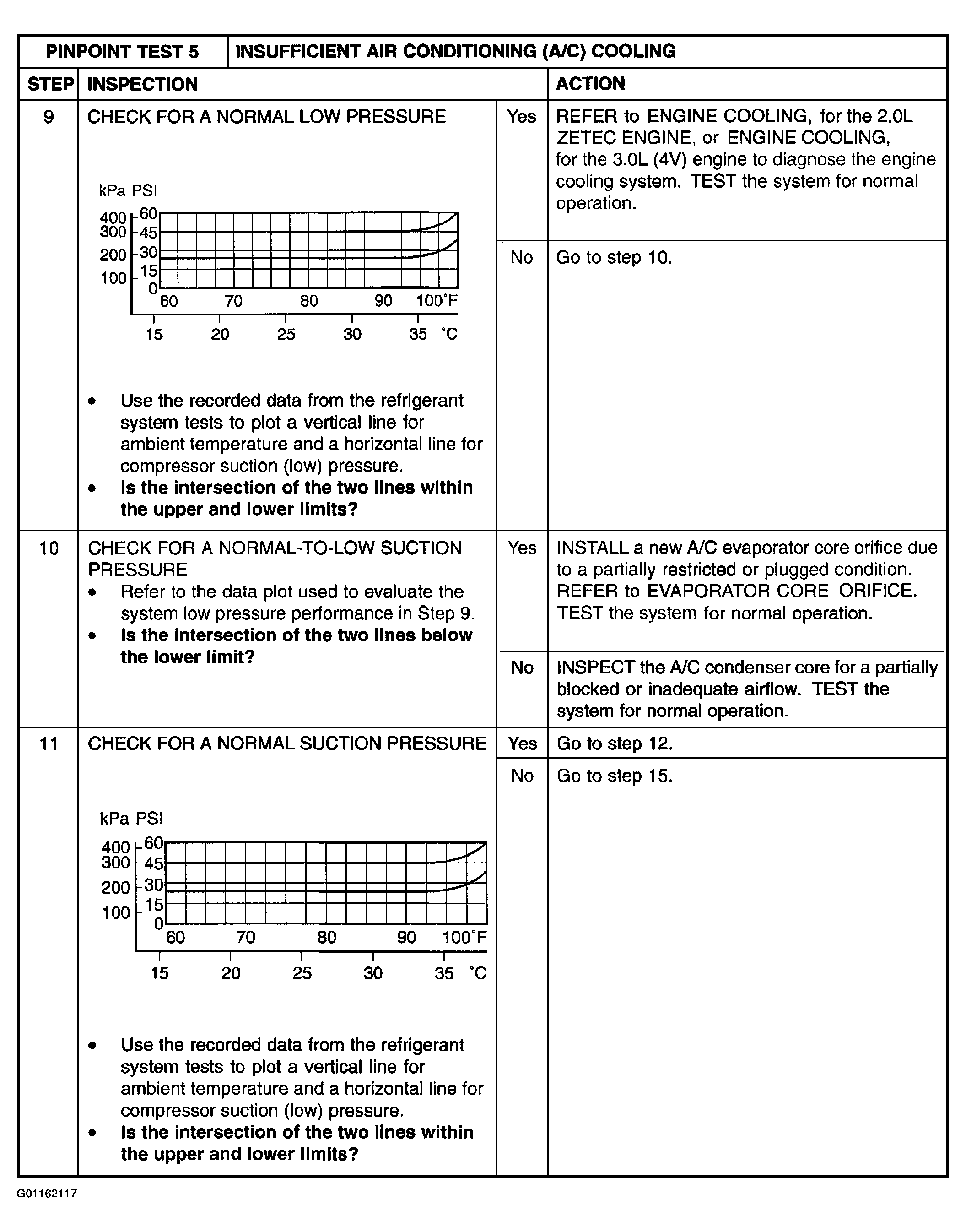

Fig 4: Pinpoint Test 5: Insufficient Air Conditioning (A/C) Cooling (Steps 9 & 11)

Courtesy of MAZDA MOTORS CORP.

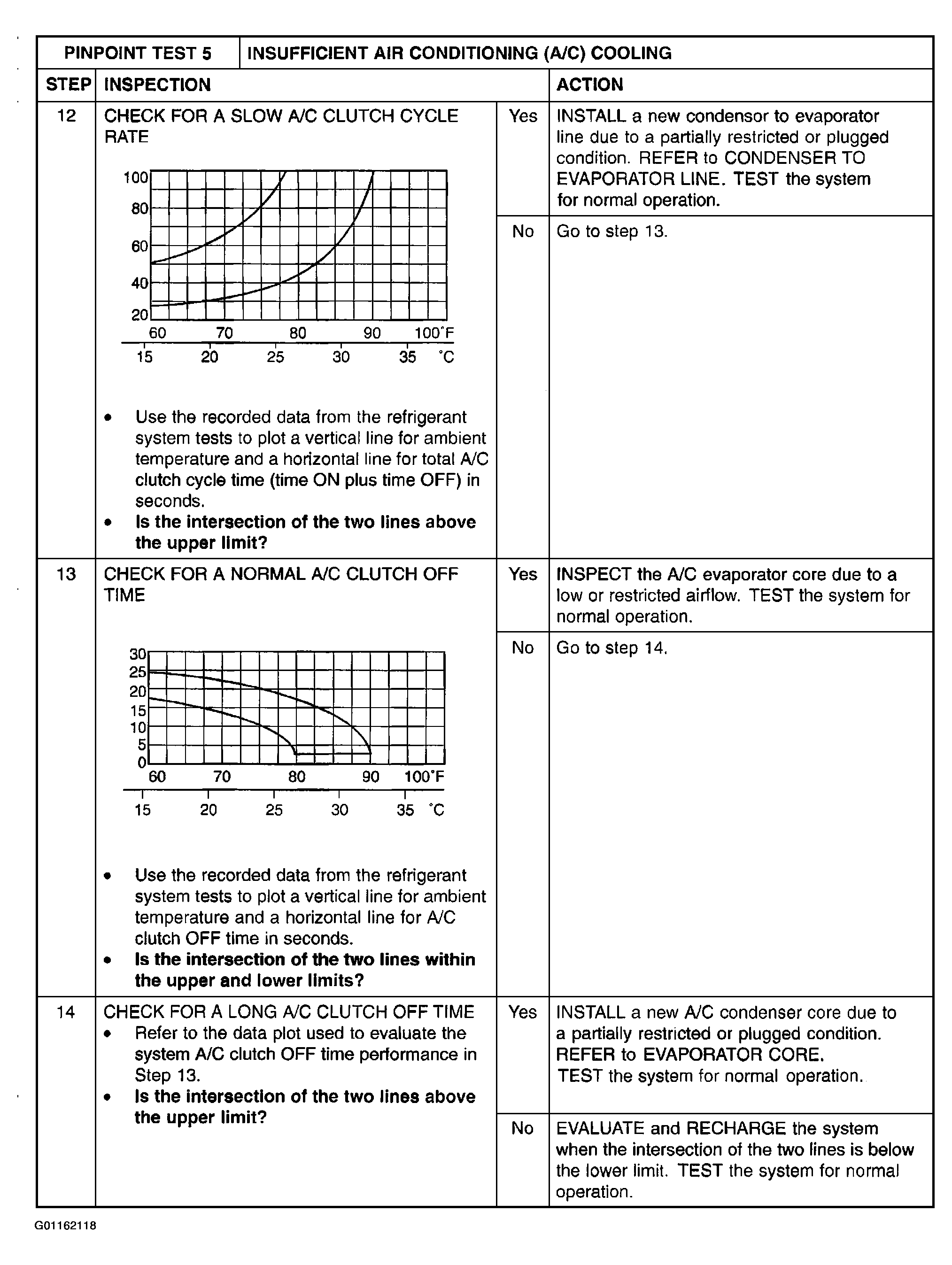

Fig 5: Pinpoint Test 5: Insufficient Air Conditioning (A/C) Cooling (Steps 12-14)

Courtesy of MAZDA MOTORS CORP.

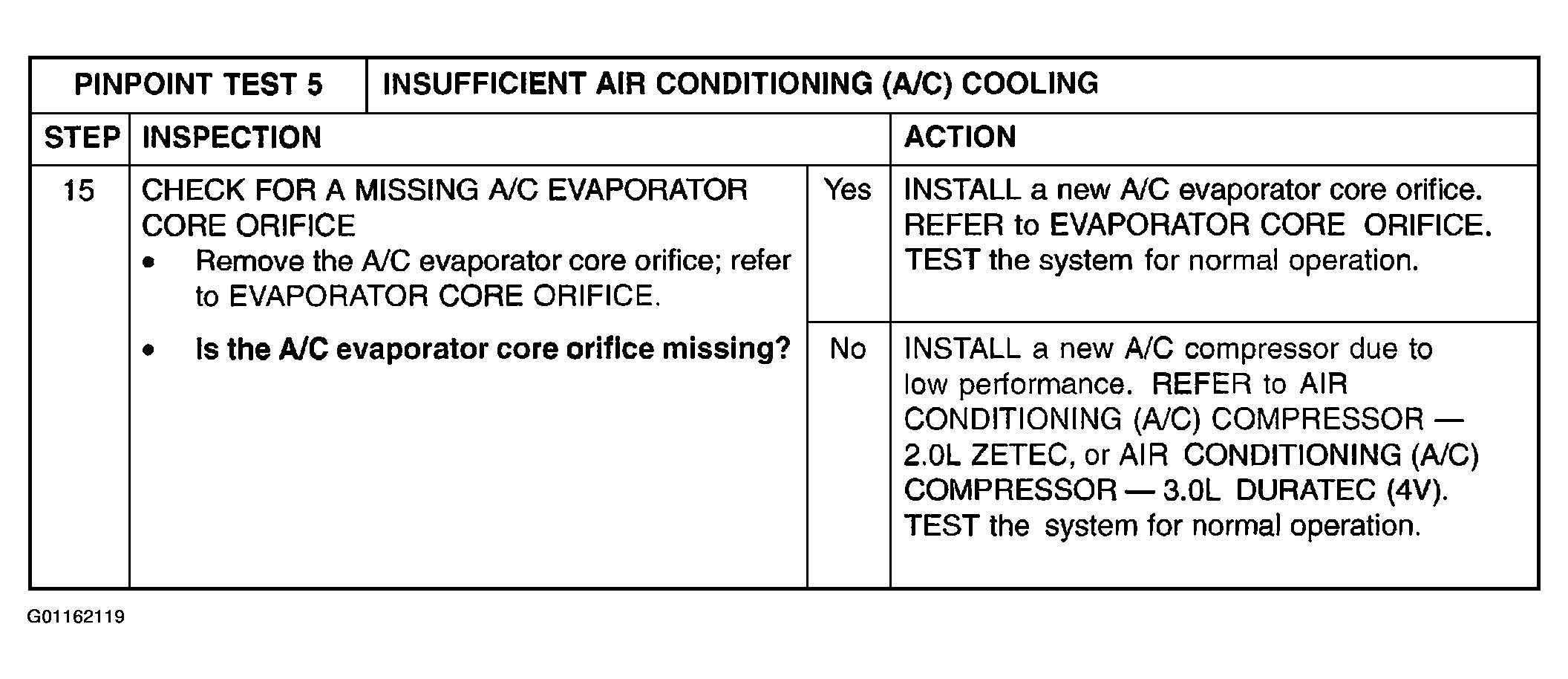

Fig 6: Pinpoint Test 5: Insufficient Air Conditioning (A/C) Cooling (Step 15)

Courtesy of MAZDA MOTORS CORP.
