Pinpoint Test 4: The Air Conditioning (A/C) Is Always On

CAUTION:
  • Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

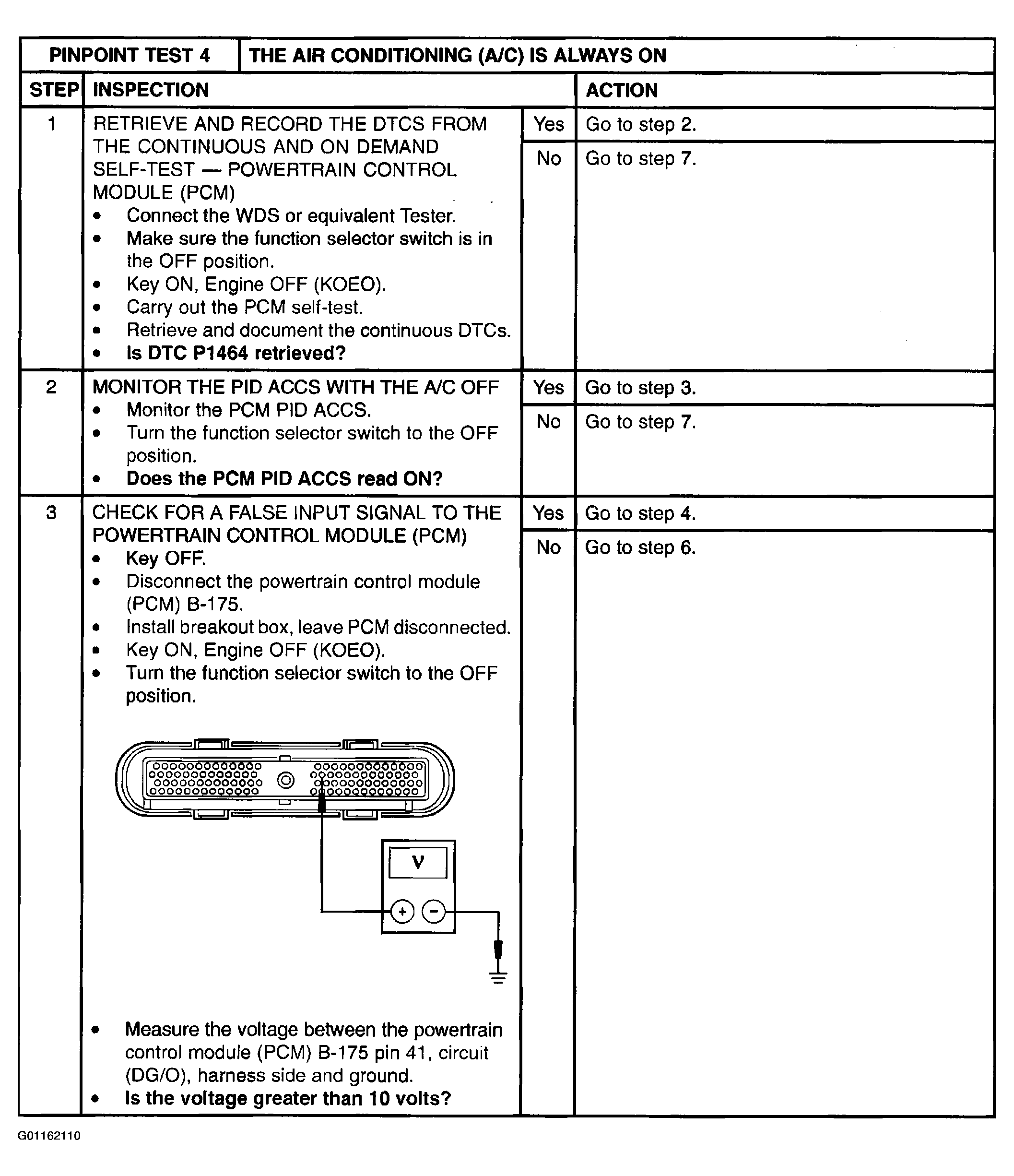

Fig 1: Pinpoint Test 4: The Air Conditioning (A/C) Is Always On (Steps 1-3)
G01162110Courtesy of MAZDA MOTORS CORP.

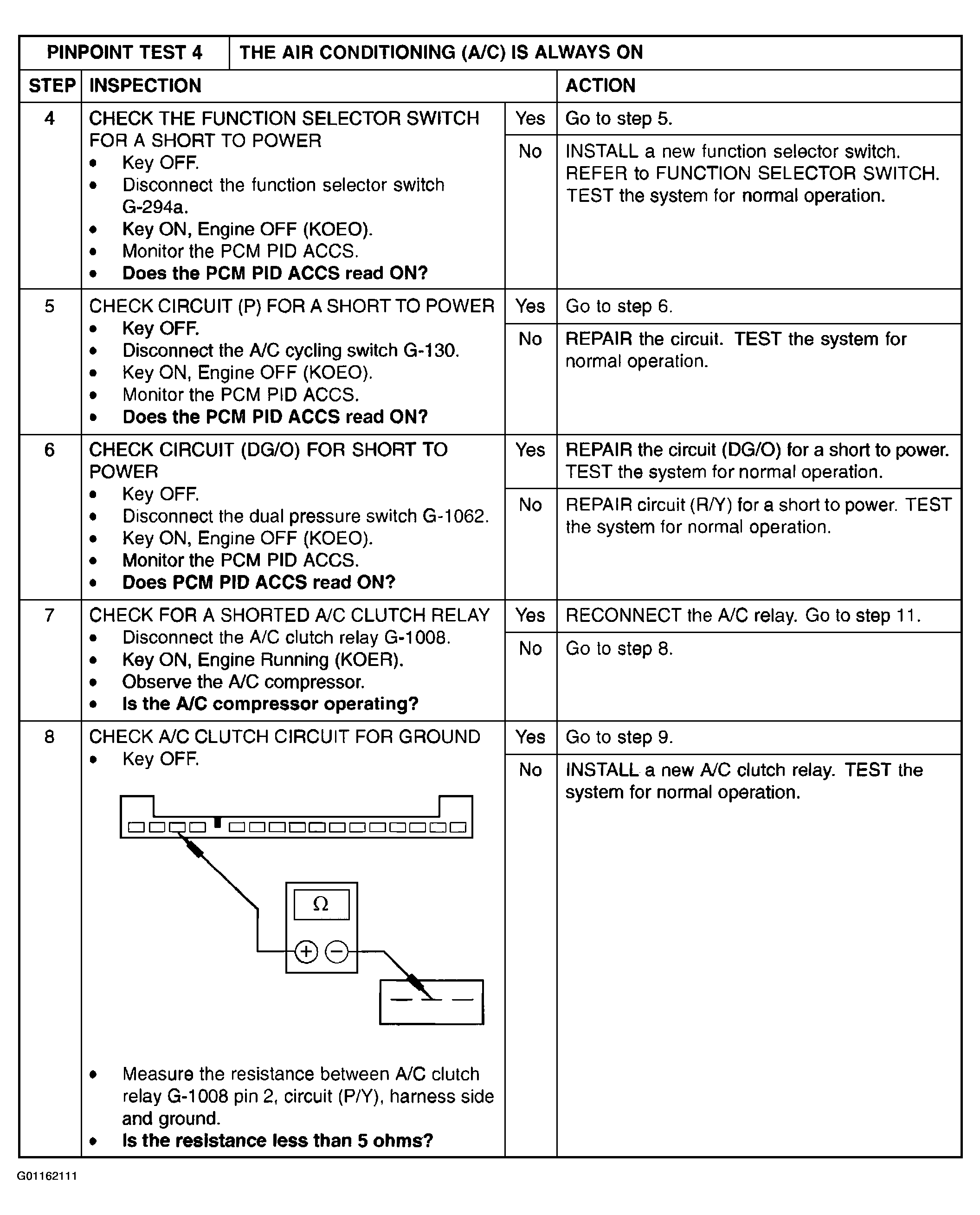

Fig 2: Pinpoint Test 4: The Air Conditioning (A/C) Is Always On (Steps 4-8)
G01162111Courtesy of MAZDA MOTORS CORP.

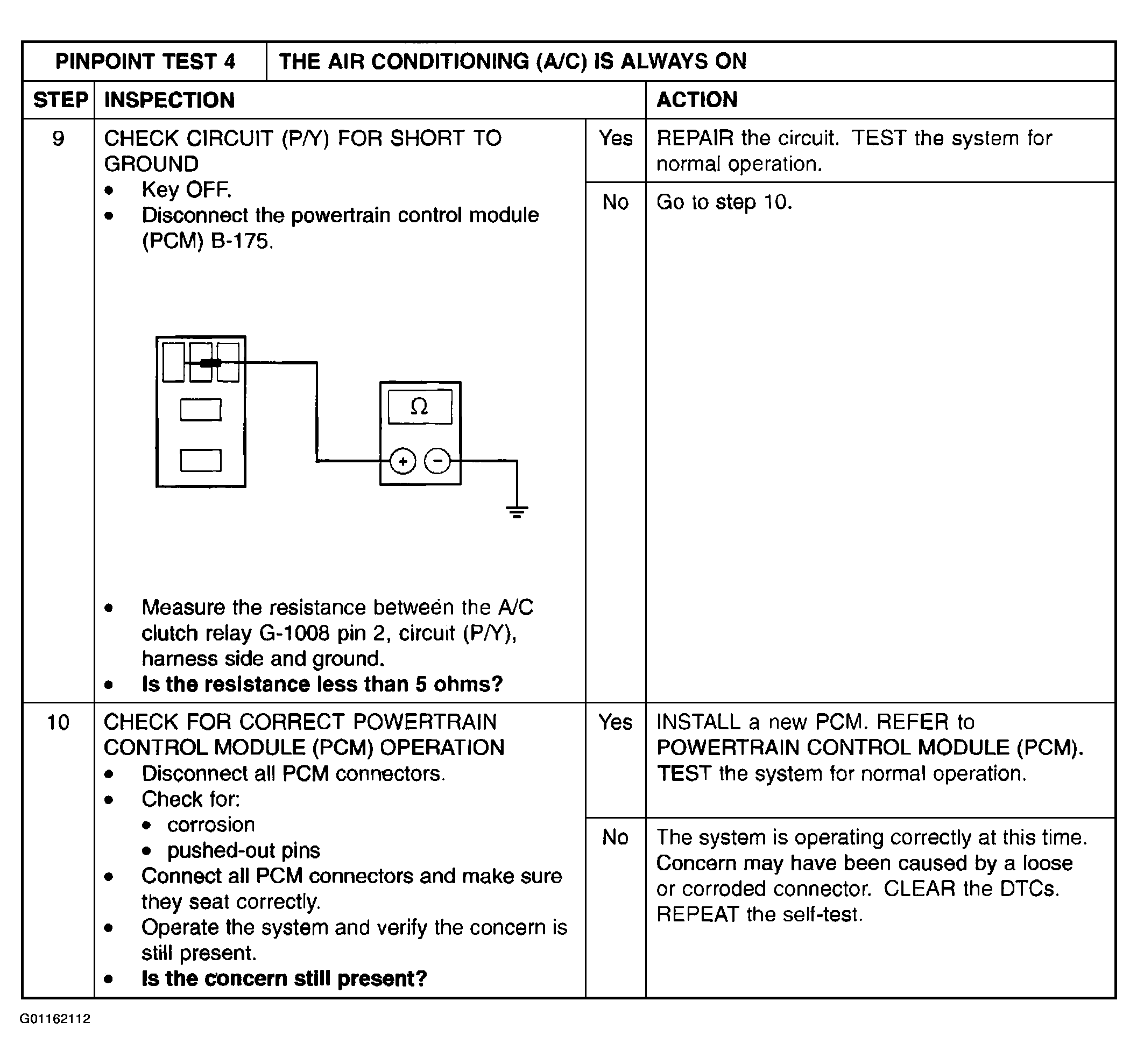

Fig 3: Pinpoint Test 4: The Air Conditioning (A/C) Is Always On (Steps 9 & 10)
G01162112Courtesy of MAZDA MOTORS CORP.

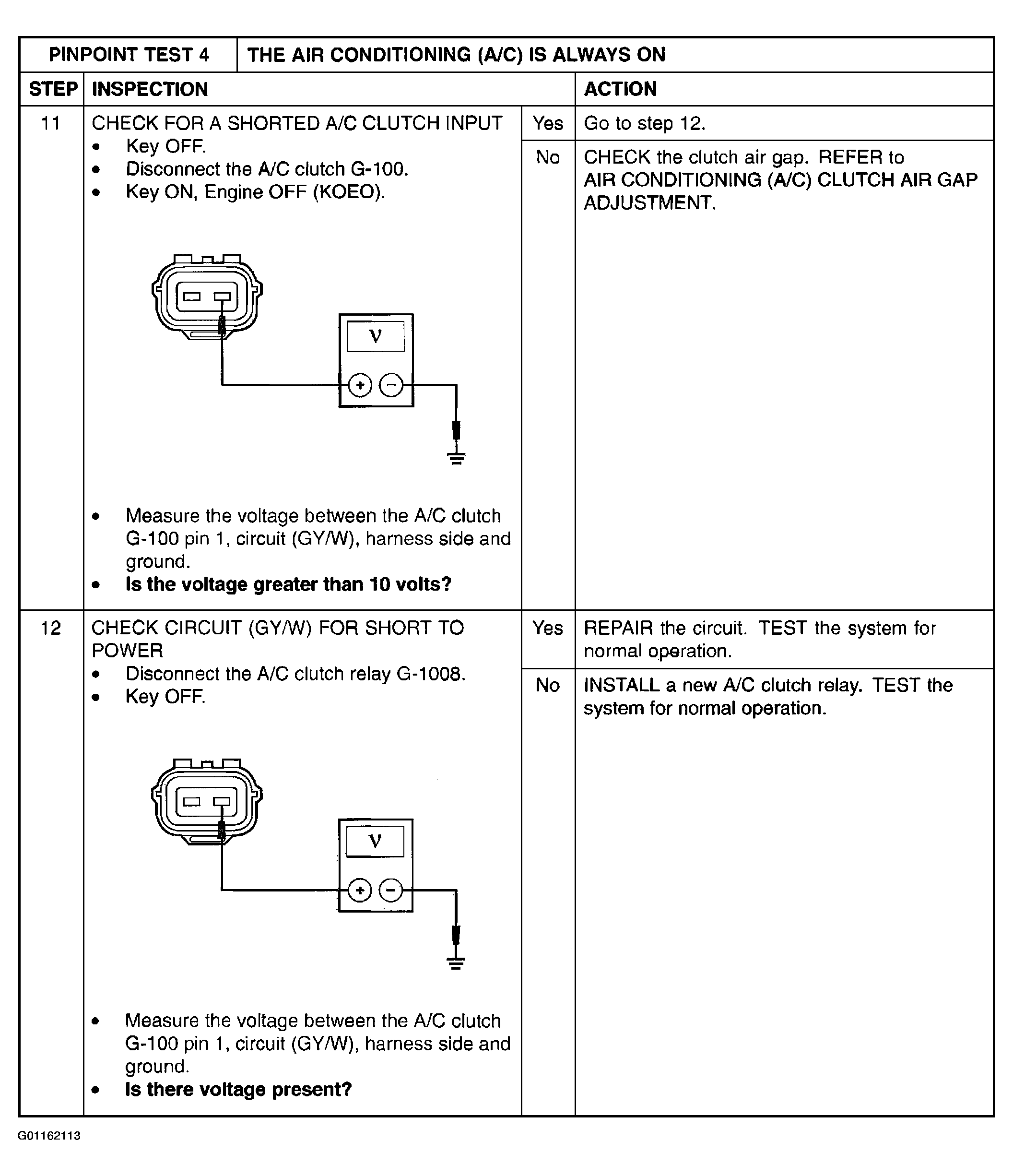

Fig 4: Pinpoint Test 4: The Air Conditioning (A/C) Is Always On (Steps 11 & 12)
G01162113Courtesy of MAZDA MOTORS CORP.
