Pinpoint Test 2: Insufficient, Erratic, Or No Heat

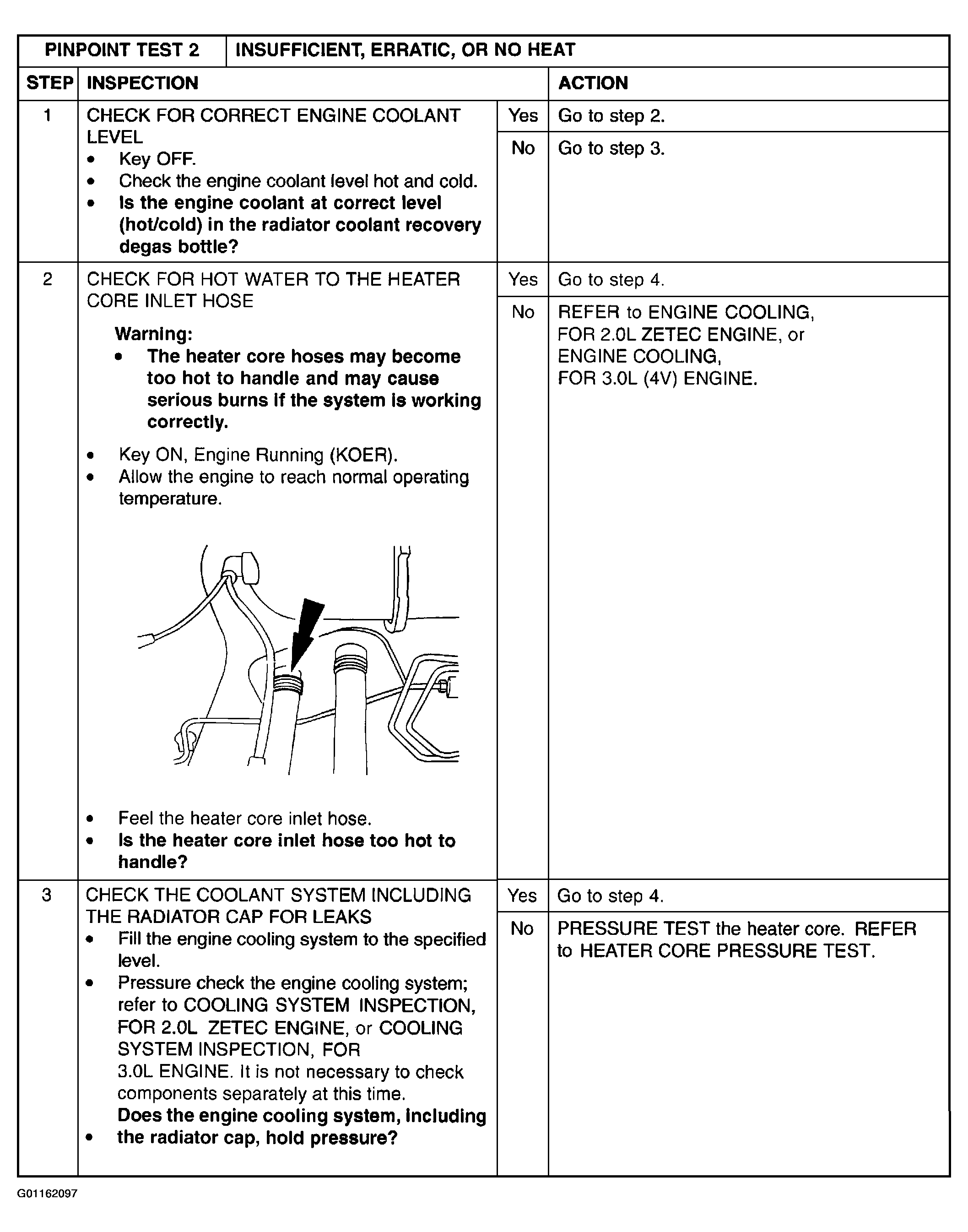

Fig 1: Pinpoint Test 2: Insufficient, Erratic, Or No Heat (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

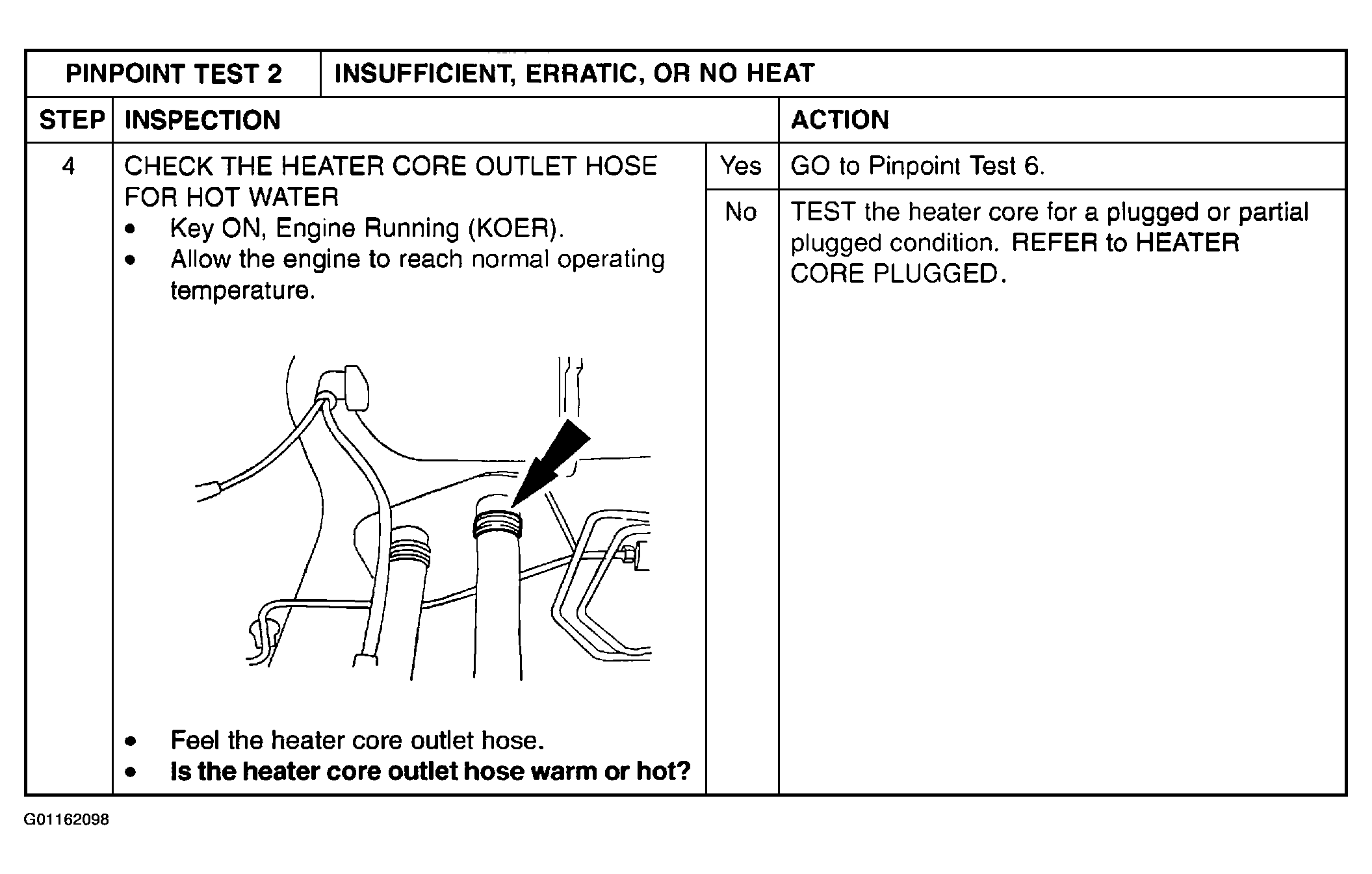

Fig 2: Pinpoint Test 2: Insufficient, Erratic, Or No Heat (Step 4)

Courtesy of MAZDA MOTORS CORP.
