Pinpoint Test 10: No Operation In Lower Speeds: Notes

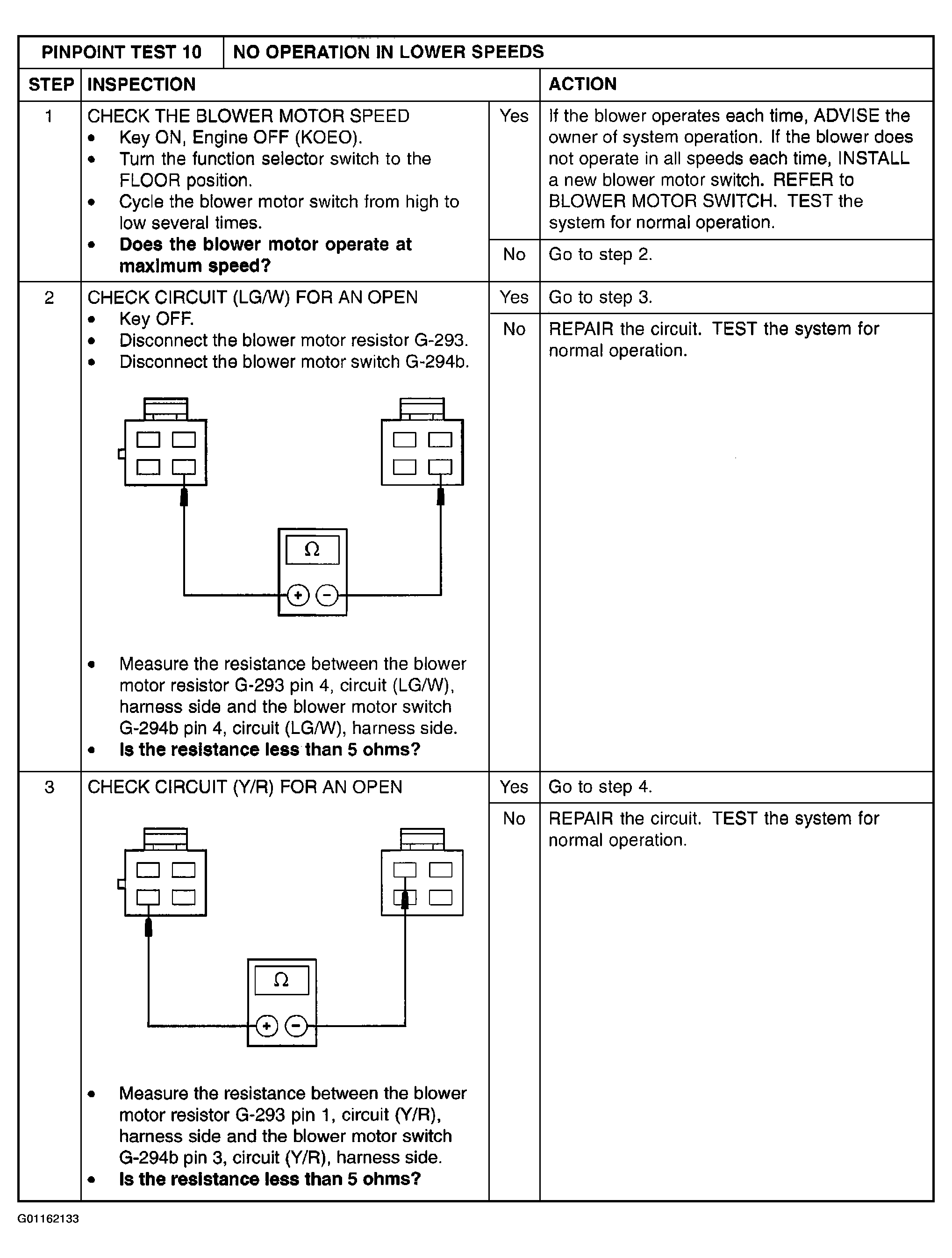

Fig 1: Pinpoint Test 10: No Operation In Lower Speeds (Steps 1-3)
G01162133Courtesy of MAZDA MOTORS CORP.

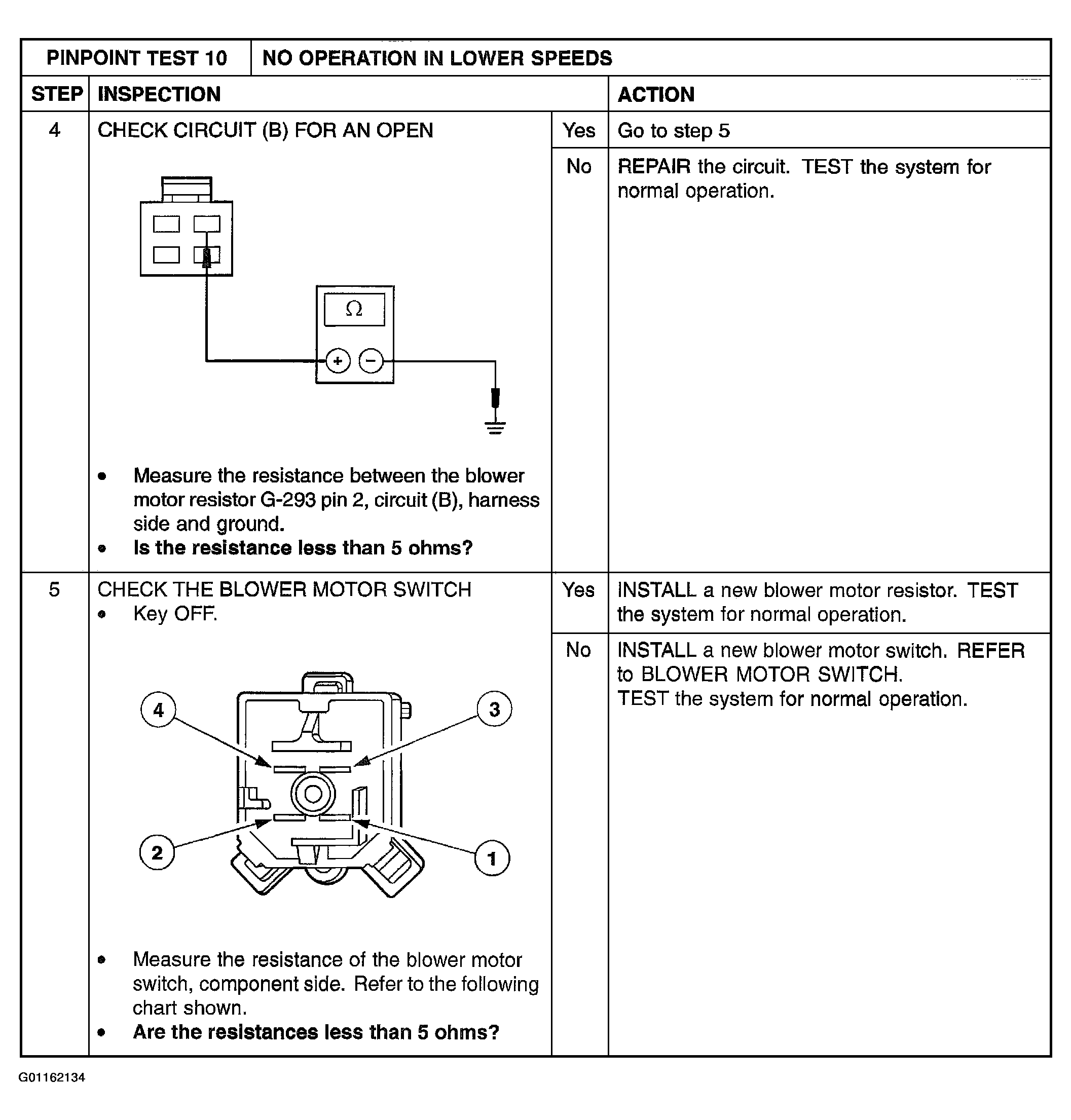

Fig 2: Pinpoint Test 10: No Operation In Lower Speeds (Steps 4 & 5)
G01162134Courtesy of MAZDA MOTORS CORP.
