Manual A/C-Heater Systems - HVAC: Specifications

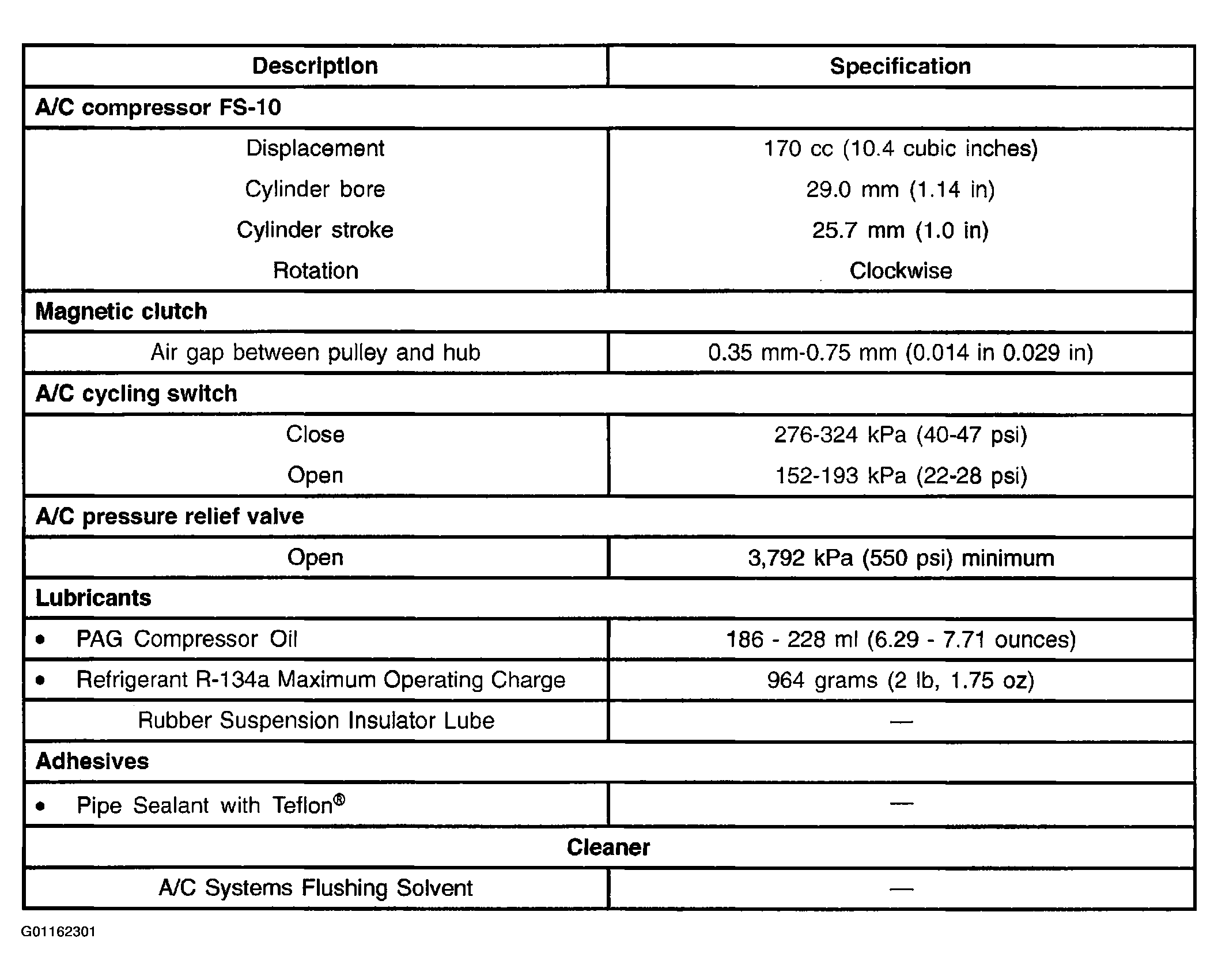

Fig 1: Specifications

Courtesy of MAZDA MOTORS CORP.

SPECIFICATIONS

Application

Specification

Compressor Type

Ford FS-10, Swashplate 10-Cyl.

Compressor Belt Deflection

⁽¹⁾

Compressor Oil Capacity ⁽²⁾

9.0 ozs.

Refrigerant (R-134a) Capacity

30.0 ozs.

System Operating Pressures ⁽³⁾

High Side

125-230 psi (8.8-16.2 kg/cm² )

Low Side

26-46 psi (1.8-3.2 kg/cm² )

⁽¹⁾	Belt tension is automatically adjusted by belt tensioner. Tension indicator should be within specified marks.

⁽²⁾	Use PAG compressor oil.

⁽³⁾	Specification is with ambient temperature at 80°F (27°C).

WARNING: To avoid injury from accidental air bag deployment, read and carefully follow all SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM procedures in AIR BAG SYSTEM SAFETY article in GENERAL SERVICING.
