Removal and Installation

Remove the driver and front passenger seats. For additional information, refer to DRIVER SEAT and PASSENGER SEAT .

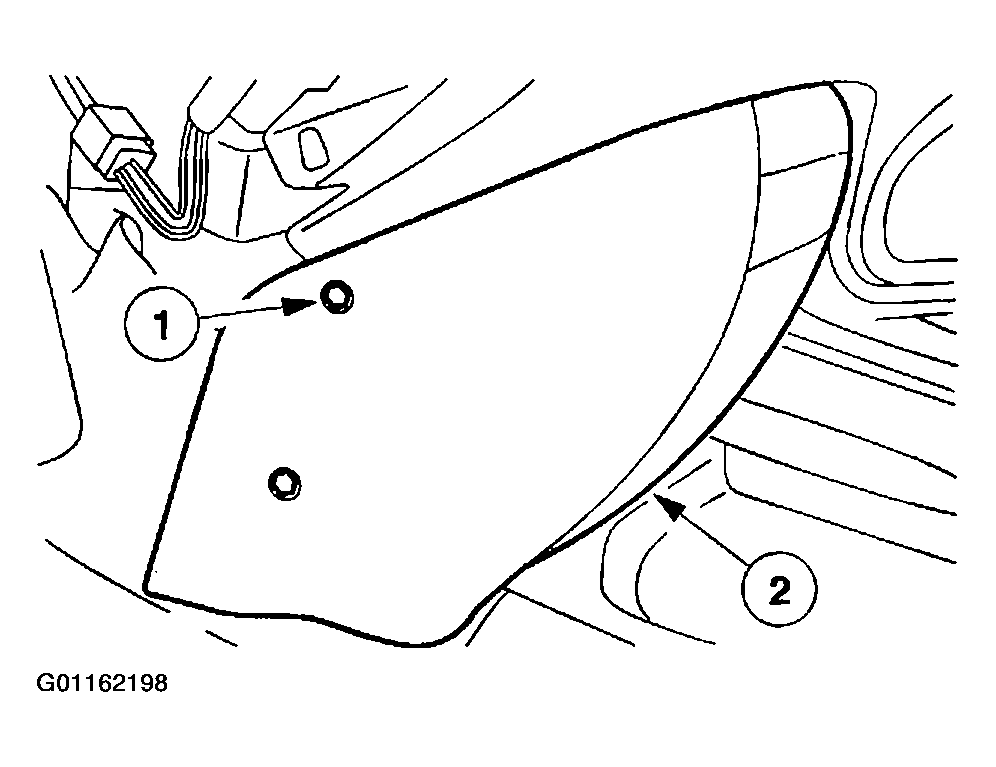

Remove the utility compartment.
1. Remove the four plastic fasteners.
2. Remove the utility compartment.
3. Disconnect the electrical connection.

  Fig 1: Removing/Installing Front Door Scuff Plates
  Courtesy of MAZDA MOTORS CORP.
Remove LH and RH front door scuff plates.

Fig 2: Removing/Installing Lower A-Pillar Panels
Courtesy of MAZDA MOTORS CORP.
Remove LH and RH lower A-pillar panels.

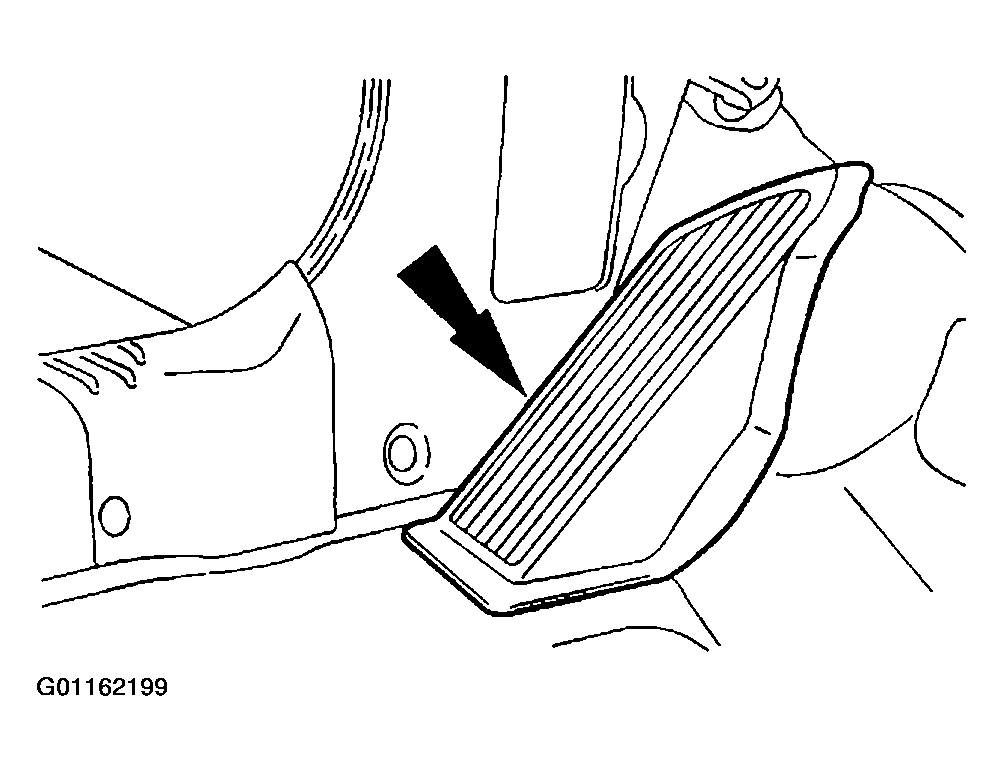

Fig 3: Removing/Installing LH Foot Rest
Courtesy of MAZDA MOTORS CORP.
Remove the LH foot rest.
Pull back the carpet to gain access to the rear floor vent.

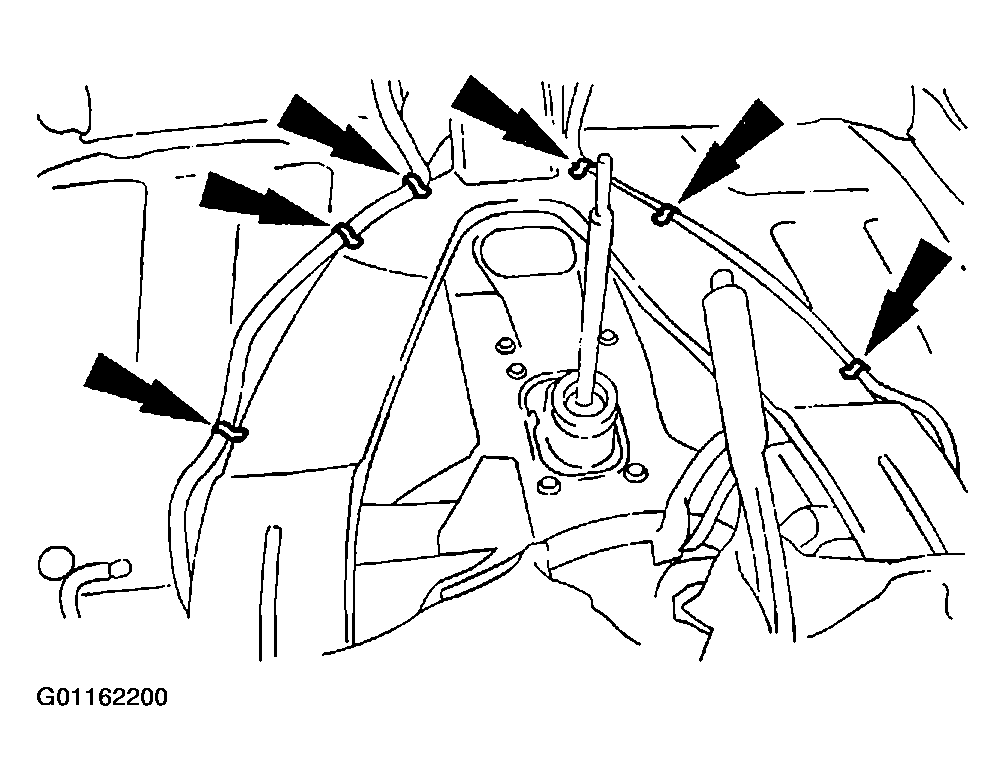

Fig 4: Removing/Installing Wire Harness Pin-Type Retainer
Courtesy of MAZDA MOTORS CORP.
Remove the wire harness pin-type retainer.
Remove the floor duct pin-type retainers and remove the duct.
To install, reverse the removal procedure.
