Removal and Installation

  1. Drain the engine coolant.

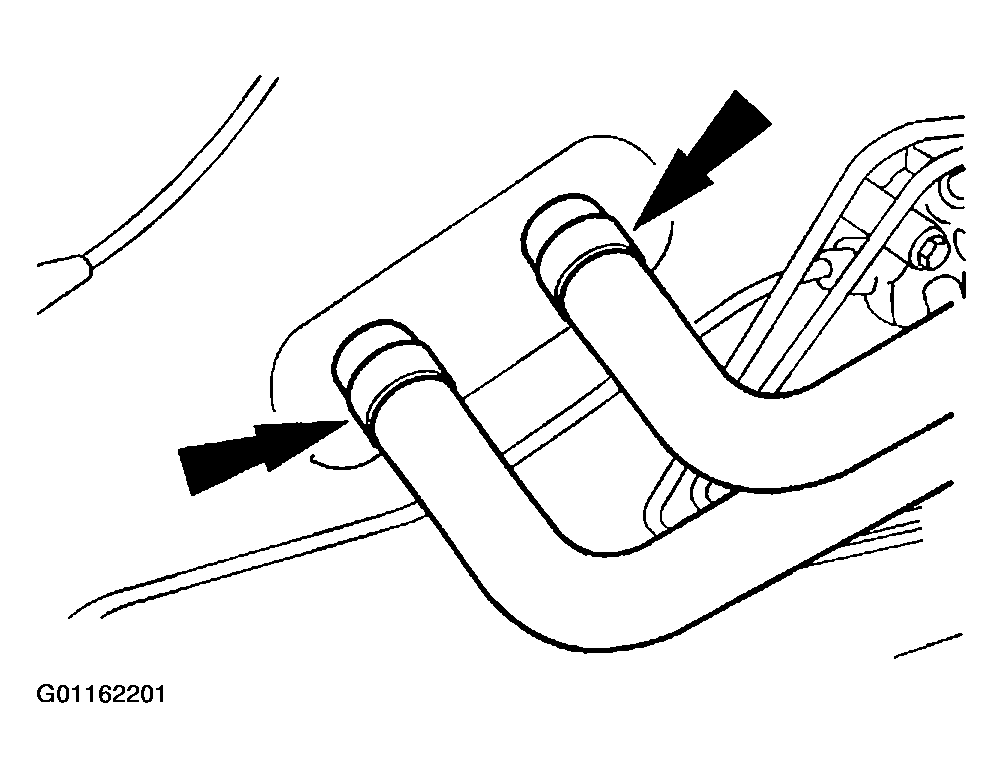

    Fig 1: Disconnecting/Connecting Heater Hoses From The Heater Core
    G01162201Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the heater hoses from the heater core.

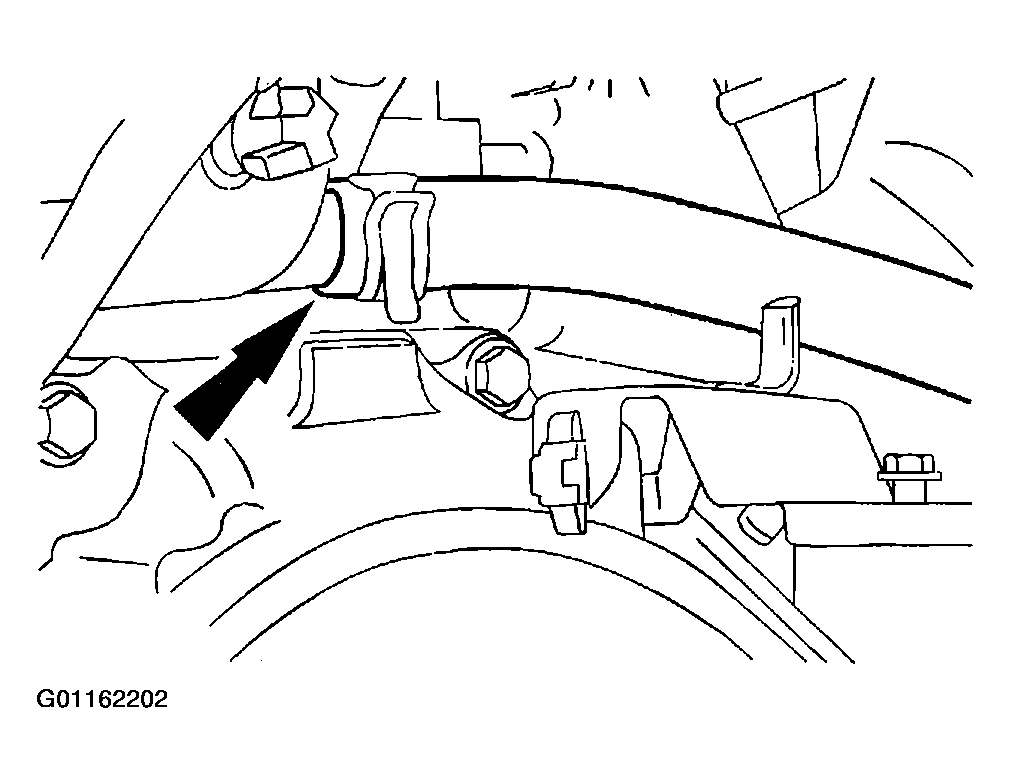

    Fig 2: Disconnecting/Connecting Heater Hose From The Hose Connection
    G01162202Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the heater hose from the hose connection.
  4. Remove the RH front wheel.

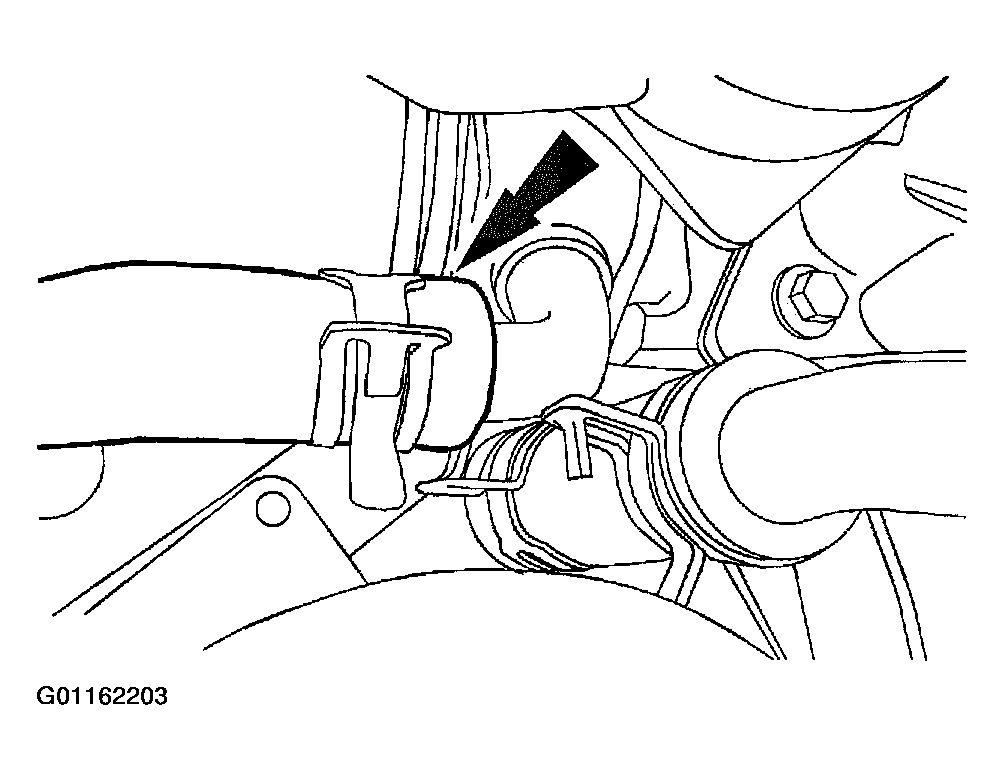

    Fig 3: Disconnecting/Connecting Heater Hose From The Hose Connection
    G01162203Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the heater hose from the hose connection.
  6. To install, reverse the removal procedure.
    1. Lubricate the hoses with Rubber Suspension Insulator Lube.
