Removal and Installation

  1. Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT CLUSTER FINISH PANEL .
    Fig 1: Removing/Installing Function Selector Switch Knob
    G01162281Courtesy of MAZDA MOTORS CORP.
  2. Remove the function selector switch knob.

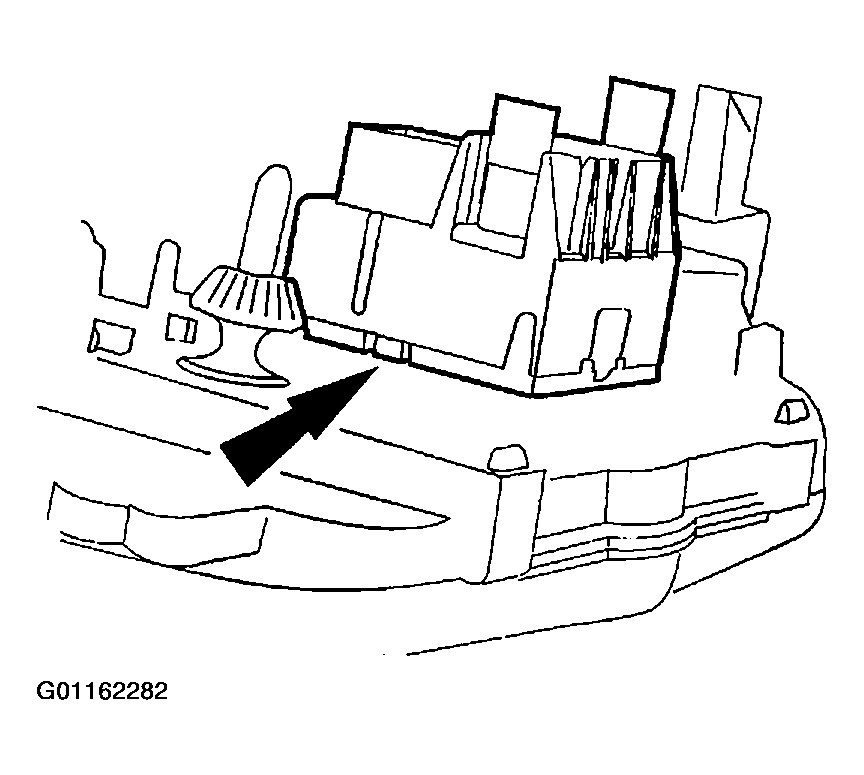

    Fig 2: Removing/Installing Function Selector Switch
    G01162282Courtesy of MAZDA MOTORS CORP.
  3. Remove the function selector switch.
    1. Push in the locking tab on one side of the function selector switch.
    NOTE:
    • Align the function selector switch locking tabs with the holes in the housing and press the function selector into the housing. Verify that both locking tabs are secured.
  4. To install, reverse the removal procedure.
