Removal and Installation

  1. Remove the instrument panel. For additional information, refer to INSTRUMENT PANEL .

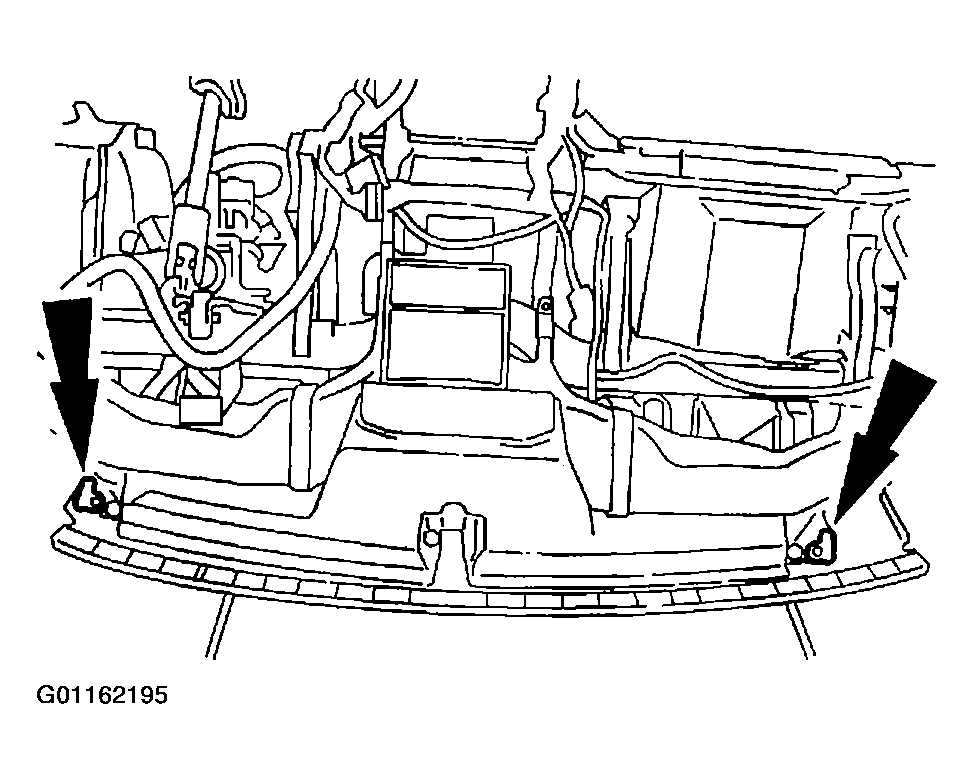

    Fig 1: Removing/Installing Screws And Retaining Guides
    G01162195Courtesy of MAZDA MOTORS CORP.
  2. Remove the screws and the retaining guides.

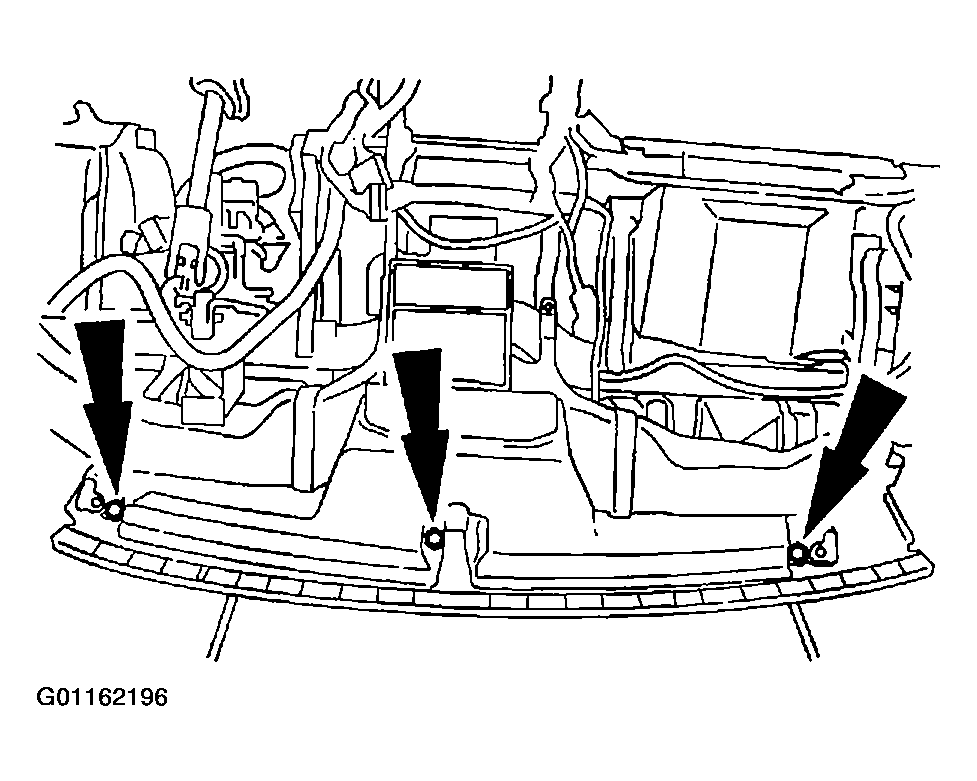

    Fig 2: Removing/Installing The Duct
    G01162196Courtesy of MAZDA MOTORS CORP.
  3. Remove the screws and remove the duct.
  4. To install, reverse the removal procedure.
