Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Manual A/C-Heater Systems - HVAC
>>
Climate Control System
>>
Electrical Components
Electrical Components
The temperature control switch is a cable operated system that controls the air temperature door.
The heater blower motor switch varies the blower motor speed.

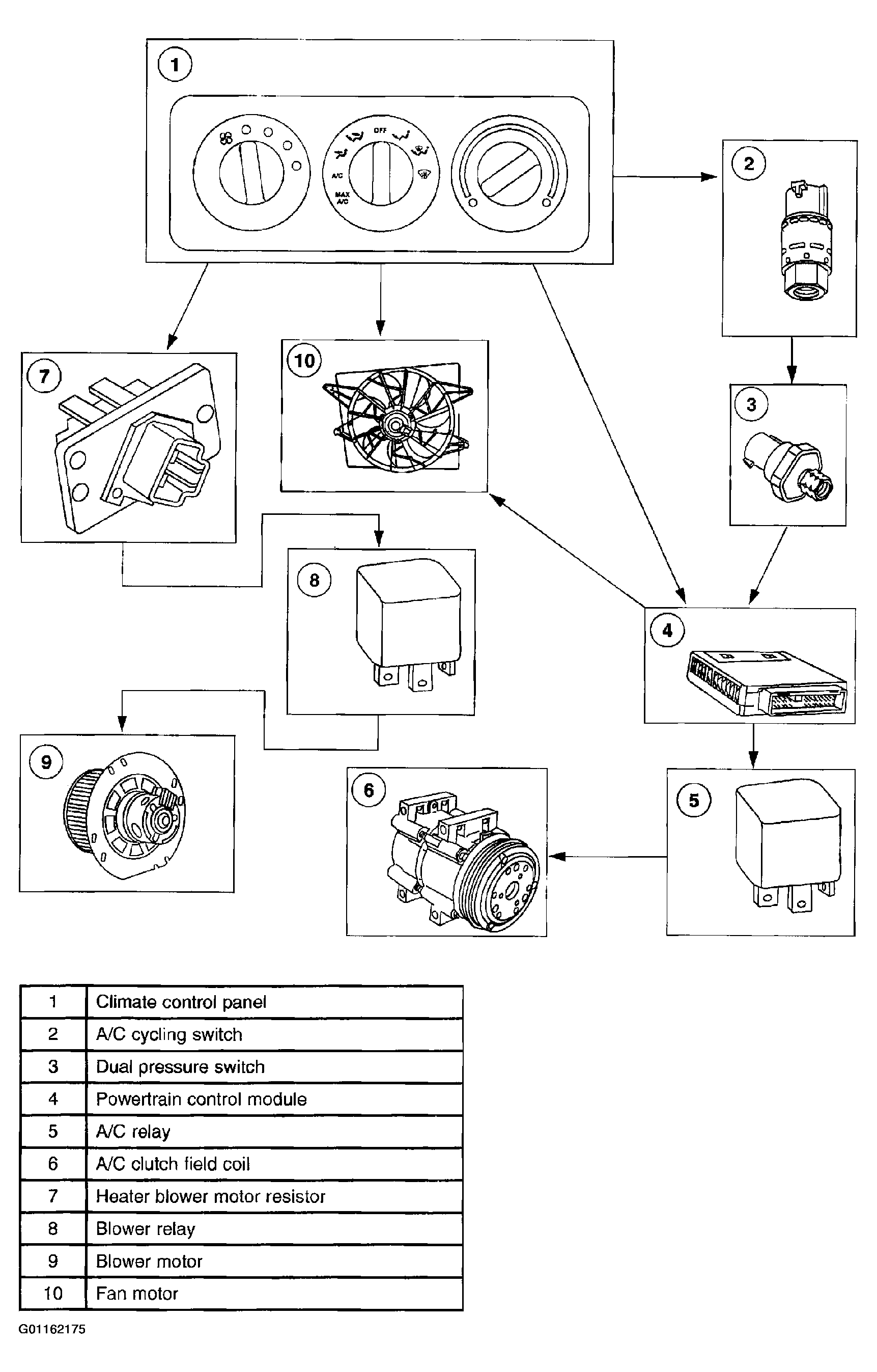

Fig 1: Climate Control Components
Courtesy of MAZDA MOTORS CORP.
