Removal and Installation

  1. Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT CLUSTER FINISH PANEL .

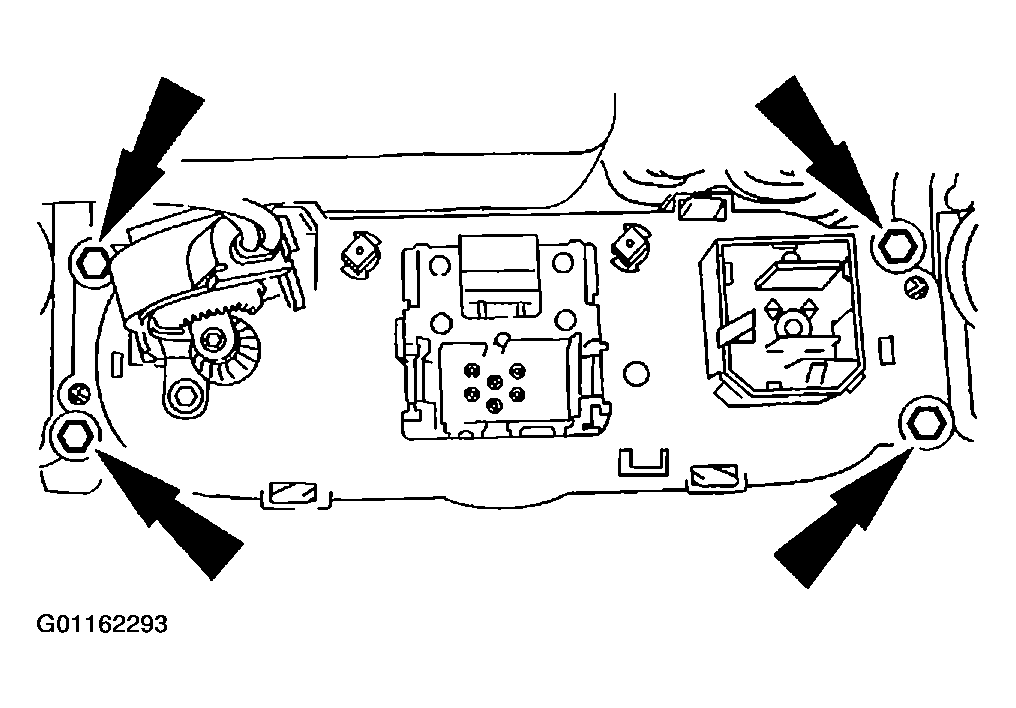

    Fig 1: Removing/Installing Climate Control Assembly
    G01162293Courtesy of MAZDA MOTORS CORP.
  2. Remove the four screws and the climate control assembly.
  3. To install, reverse the removal procedure.
