Removal and Installation

  1. Remove the defroster duct. For additional information, refer to DEFROSTER DUCT  .

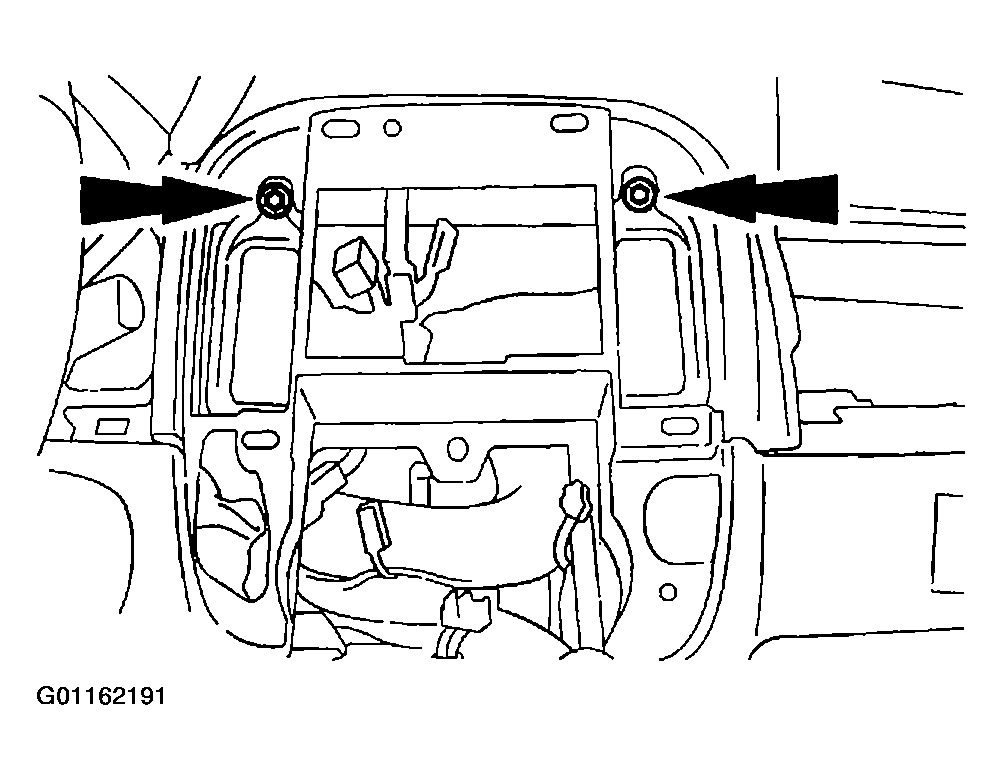

    Fig 1: Removing/Installing Screws From Front Side Of Instrument Panel
    G01162191Courtesy of MAZDA MOTORS CORP.
  2. Remove the screws from the front side of the instrument panel.
    Fig 2: Removing/Installing Left Vent Duct Screw
    G01162192Courtesy of MAZDA MOTORS CORP.
  3. Remove the screw for the left vent duct.
    Fig 3: Removing/Installing Right Vent Duct Screw
    G01162193Courtesy of MAZDA MOTORS CORP.
  4. Remove the screw for the right vent duct.

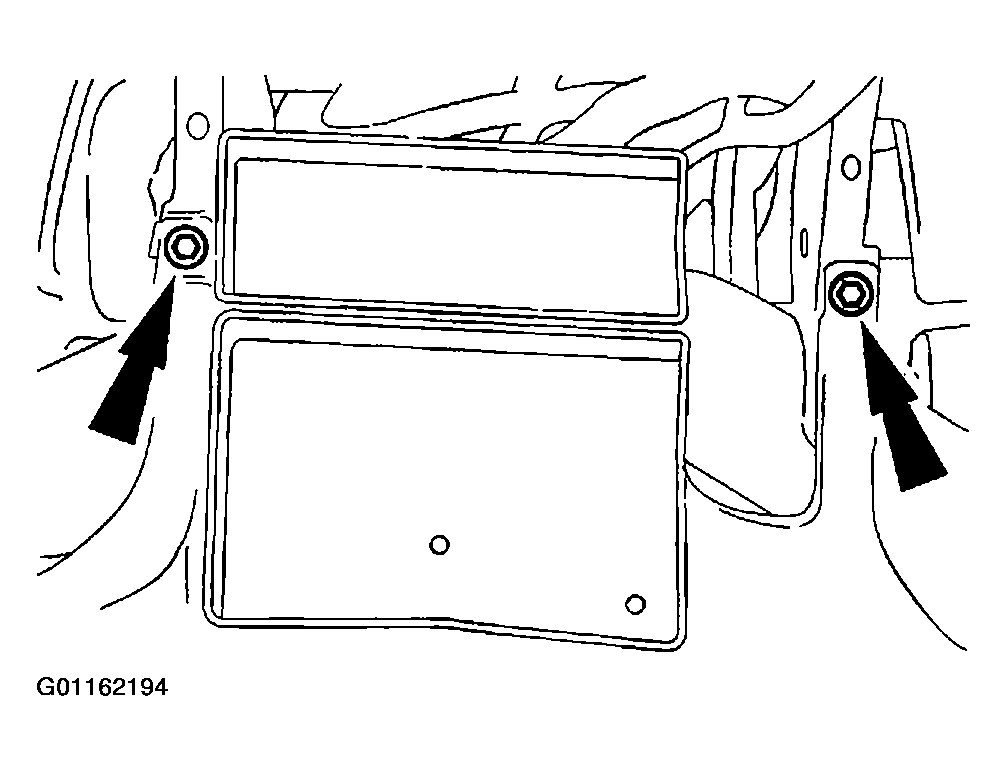

    Fig 4: Removing/Installing Center Vent Duct Screws
    G01162194Courtesy of MAZDA MOTORS CORP.
  5. Remove the screws for the center vent duct and remove the vent duct.
  6. To install, reverse the removal procedure.
