Removal and Installation

  1. Remove the RH A-pillar lower trim.

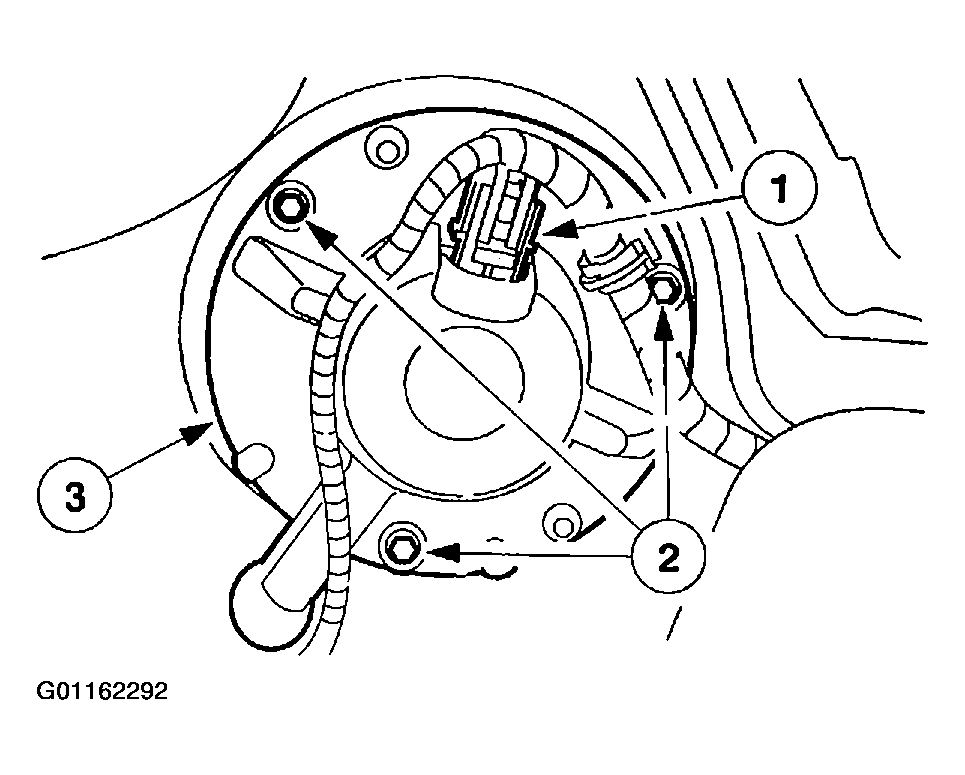

    Fig 1: Removing/Installing Blower Motor
    G01162292Courtesy of MAZDA MOTORS CORP.
  2. Remove the blower motor.
    1. Disconnect the electrical connector.
    2. Remove the washer screws.
    3. Remove the blower motor and cover, lower the assembly from the housing.
  3. To install, reverse the removal procedure.
