Removal and Installation

  1. Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT CLUSTER FINISH PANEL .
    Fig 1: Removing/Installing Blower Motor Switch Knob
    G01162294Courtesy of MAZDA MOTORS CORP.
  2. Remove the blower motor switch knob.

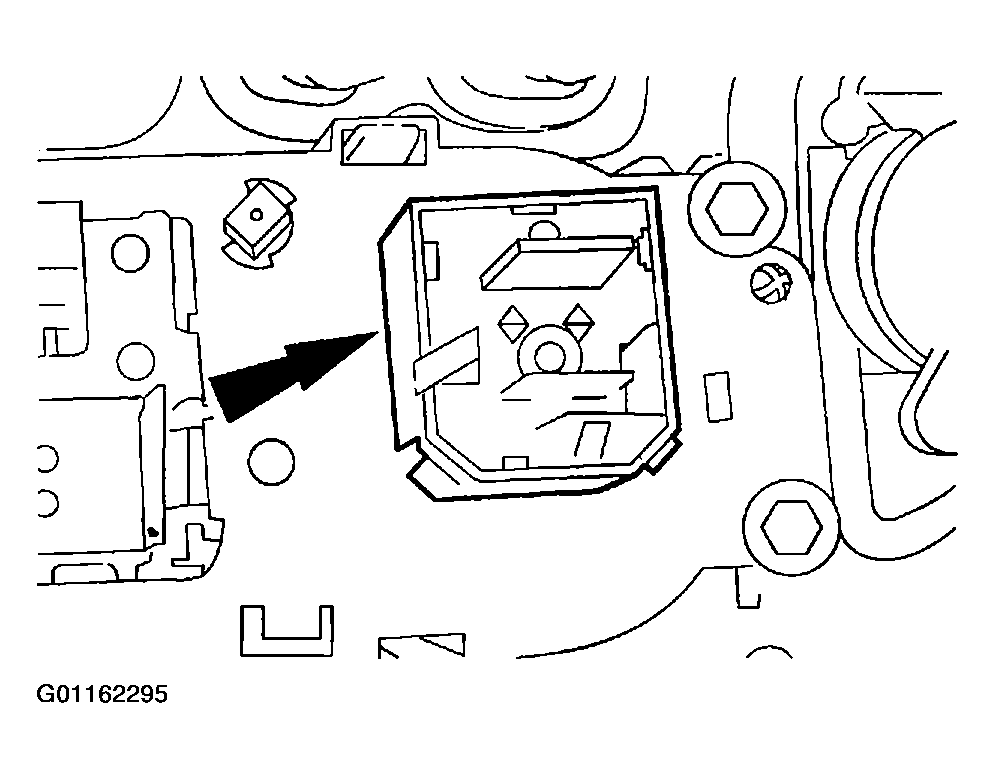

    Fig 2: Removing/Installing Blower Motor Switch
    G01162295Courtesy of MAZDA MOTORS CORP.
  3. Remove the blower motor switch.
    1. Depress the locking tab.
  4. To install, reverse the removal procedures.
