Removal and Installation

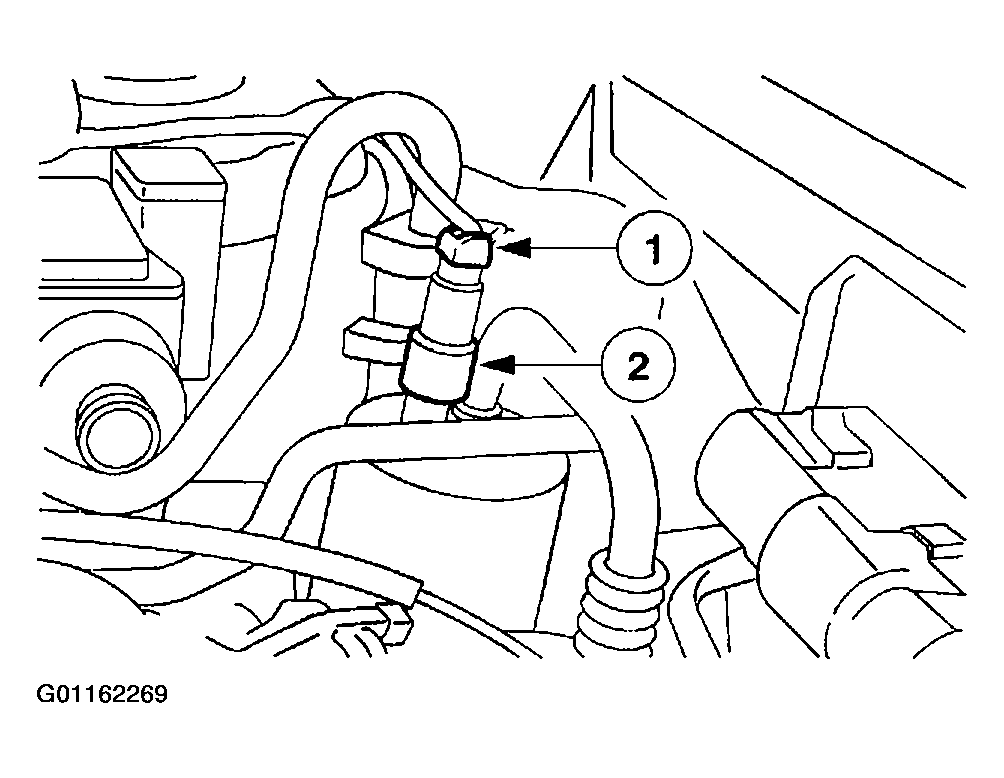

Fig 1: Removing/Installing A/C Cycling Switch
G01162269Courtesy of MAZDA MOTORS CORP.
  1. Remove the A/C cycling switch.
    1. Disconnect the A/C cycling switch electrical connector.
    2. Remove the A/C cycling switch.
  2. To install, reverse the removal procedure.
    1. Lubricate the O-ring seals with PAG Compressor Oil.
