Air Conditioning (A/C) Clutch Air Gap Adjustment

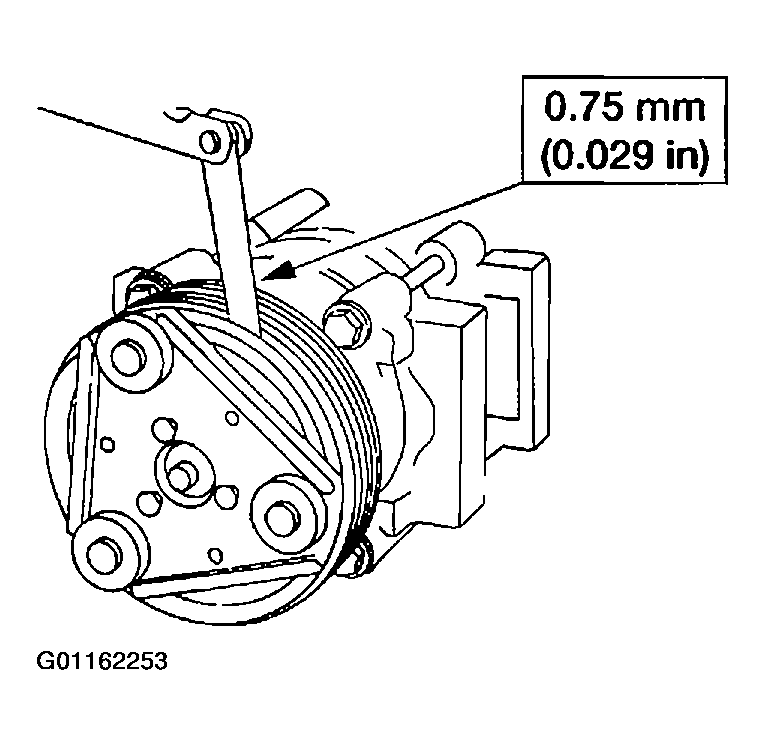

Fig 1: Checking The A/C Clutch Air Gap

Courtesy of MAZDA MOTORS CORP.

1. Check the A/C clutch air gap at three equally-spaced places between the clutch hub and the A/C clutch pulley.
2. Remove the A/C clutch. Add or remove spacers between the A/C clutch and the compressor shaft until clearance is within specification. For additional information, refer to CLUTCH AND CLUTCH FIELD COIL  .
