Removal & Installation (2WD)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Mazda B4000, 2004 Mazda B3000, 2004 Mazda B2300, 2003 Mazda B4000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

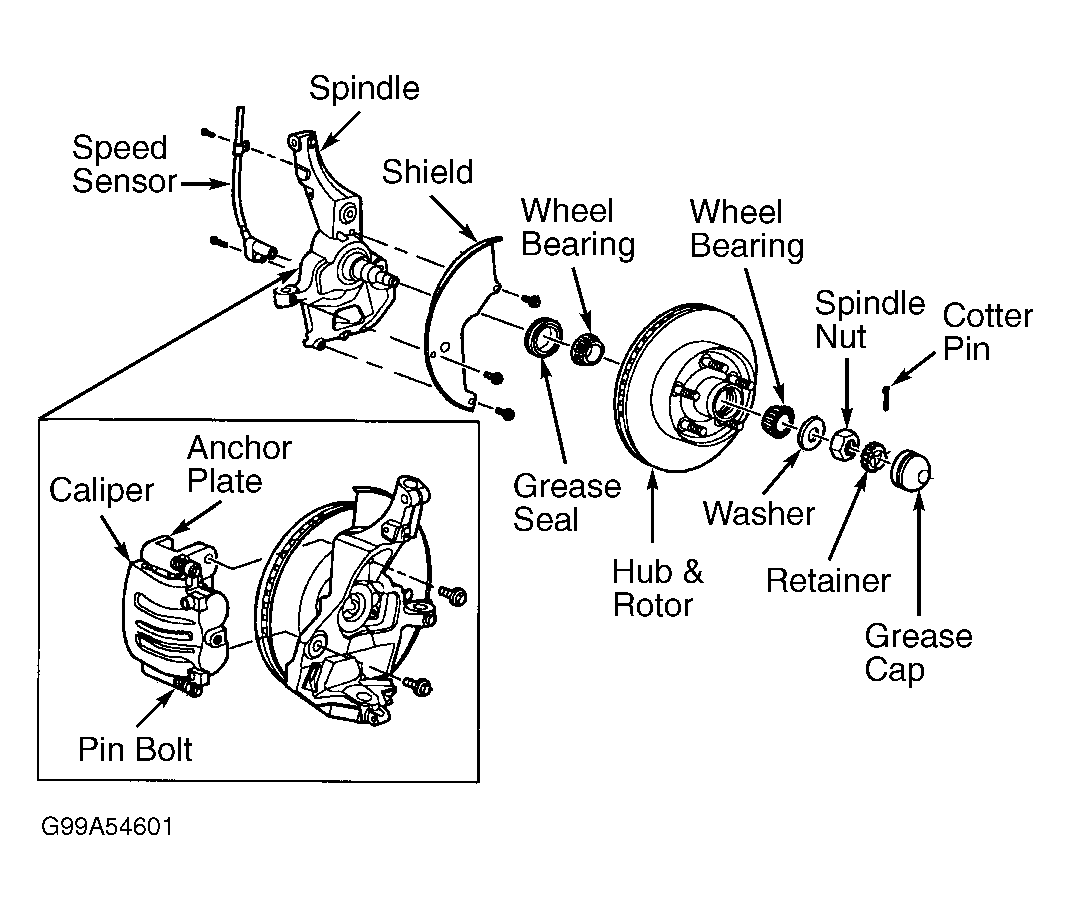

- Raise and support vehicle. Remove front wheel assemblies and brake caliper. See FRONT DISC BRAKE PADS . Remove the two front disc brake caliper anchor plate bolts. Remove the front disc brake caliper anchor plate. Remove grease cap, cotter pin, retainer, adjusting nut, washer and outer bearing. Carefully remove hub and rotor assembly. Remove inner bearing and seal. See Fig 1 .
- To install, reverse removal procedure. Adjust front wheel bearings. See FRONT WHEEL BEARINGS under ADJUSTMENTS. Tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS .
