Wheel Cylinders & Calipers
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Mazda B4000, 2004 Mazda B3000, 2004 Mazda B2300, 2003 Mazda B4000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
- Clean all dirt from and remove the brake master cylinder filler cap and fill the brake master cylinder reservoir with the specified brake fluid. Place a box end wrench on the right rear bleeder screw.

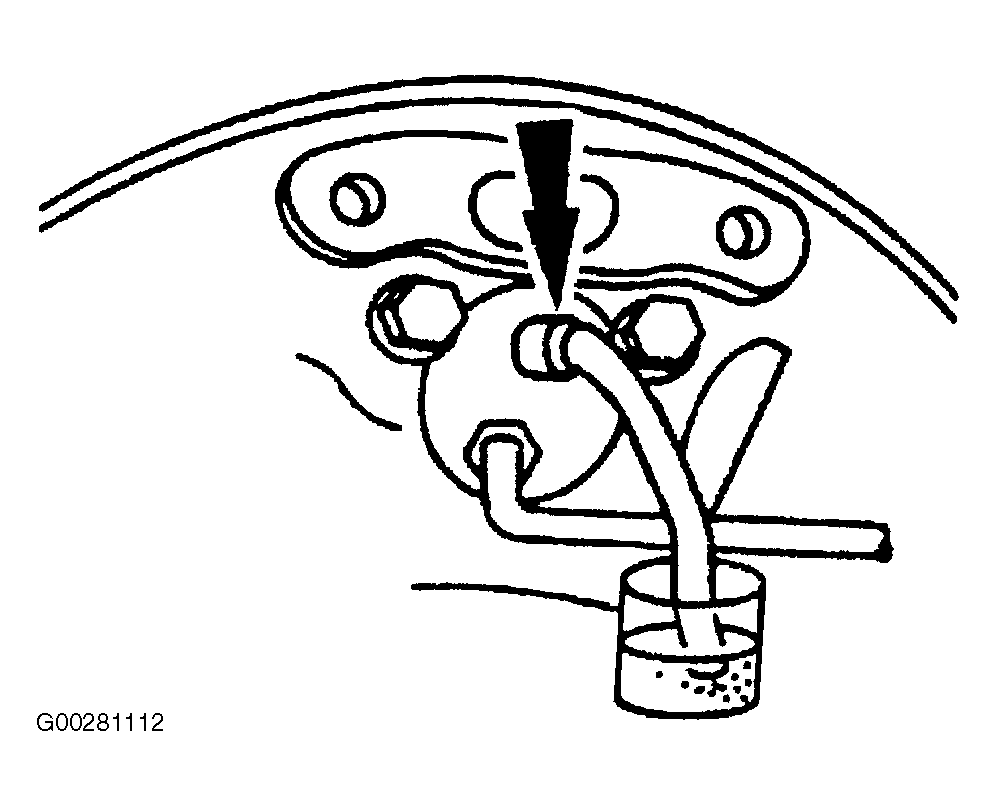

- Attach a rubber drain tube to the right rear bleeder screw and submerge the free end of the tube in a container partially filled with clean brake fluid. See Fig 1 . Have an assistant pump, and then hold firm pressure on, the brake pedal.
- Loosen the right rear bleeder screw until a stream of brake fluid comes out. While an assistant maintains pressure on the brake pedal, tighten the right rear bleeder screw. Repeat until clear, bubble-free fluid comes out.
- Refill the brake master cylinder reservoir as necessary. Tighten the right rear bleeder screw to specification. See TORQUE SPECIFICATIONS .
- Repeat steps 1 through 3 for the left rear bleeder screw.

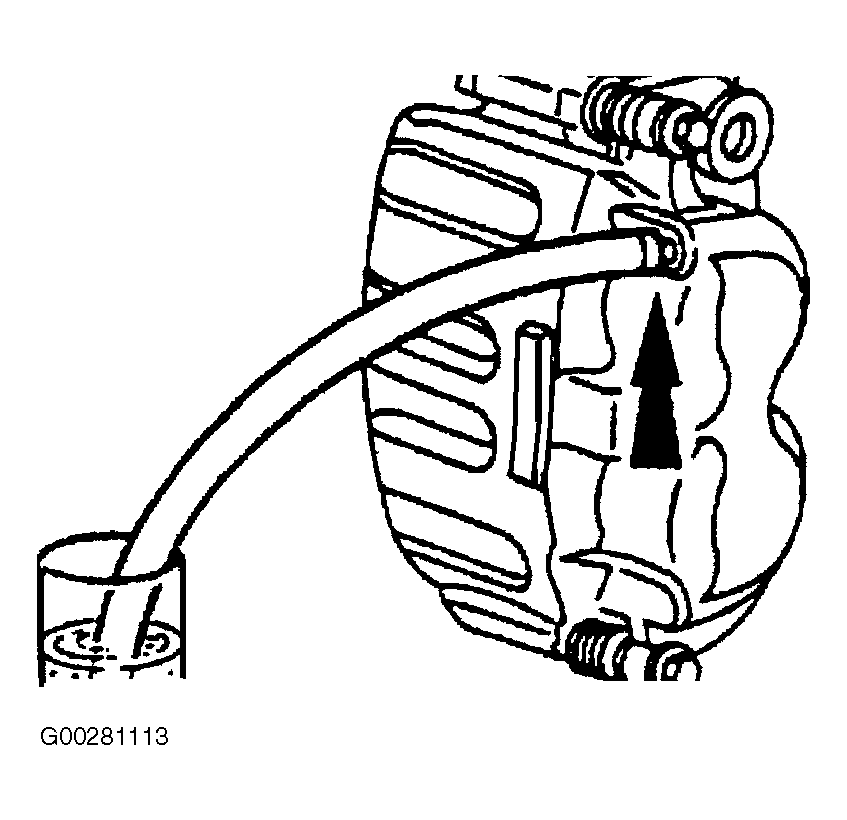

- Place a box end wrench on the right front disc brake caliper bleeder screw. Attach a rubber drain tube to the right front disc brake caliper bleeder screw, and submerge the free end of the tube in a container partially filled with clean brake fluid. See Fig 2 .
- Have an assistant pump, and then hold firm pressure on, the brake pedal. Loosen the right front disc brake caliper bleeder screw until a stream of brake fluid comes out. While an assistant maintains pressure on the brake pedal, tighten the right front disc brake caliper bleeder screw.
- Repeat until clear, bubble-free fluid comes out. Refill the brake master cylinder reservoir as necessary. Tighten the right front disc brake caliper bleeder screw to specification.
- Repeat steps 6 through 8 for the left front disc brake caliper bleeder screw.
