No.3 Engine Mount Rubber And No.3 Engine Joint Bracket Installation Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten the stud bolt of the No.3 engine mount bracket.

    Tightening Torque

    1. 7.0-13 N.m {71.4-132.5 kgf.cm, 62.0-115.0 in.lbf}

  2. Hand-tighten the No.3 engine mount rubber and No.3 engine joint bracket.

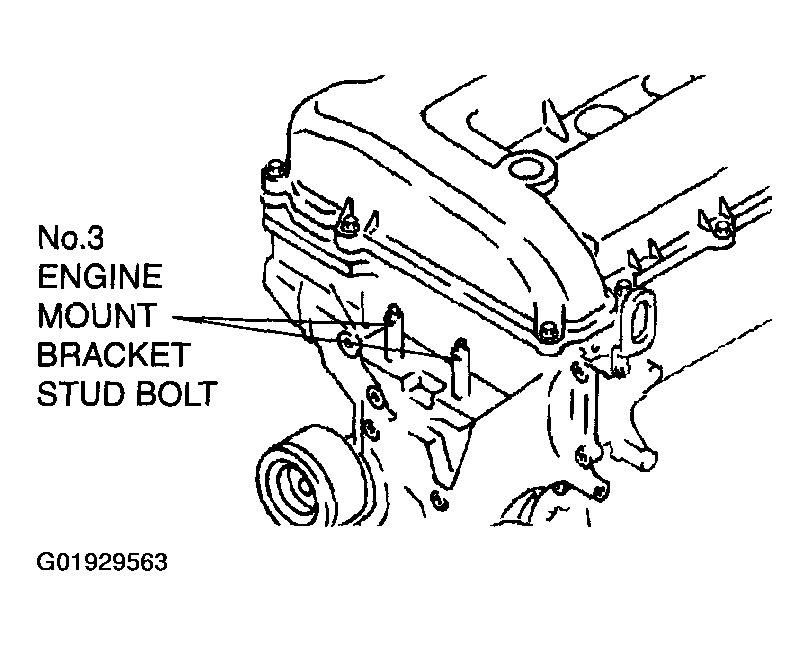

    Fig 1: Identifying No.3 Engine Mount Bracket Stud Bolts
    G01929563Courtesy of MAZDA MOTORS CORP.
  3. Tighten the bolts and nuts in the order shown.
    Fig 2: No.3 Engine Mount Bolt/Nut Tightening Sequence
    G01929564Courtesy of MAZDA MOTORS CORP.
