Engine Front Cover Installation Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Install the engine front cover within 10 min of applying the silicone sealant.
Silicone sealant is not needed in the area indicated by C as shown in the figure as it is a seal.

Fig 1: Applying Silicone Sealant

Courtesy of MAZDA MOTORS CORP.

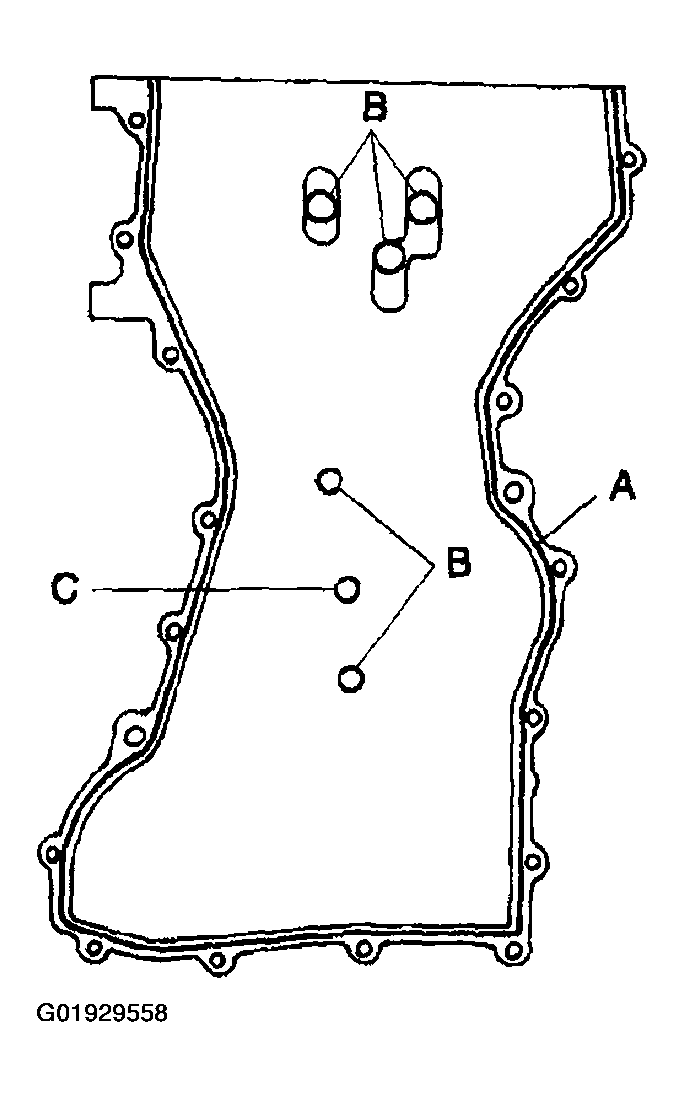

Apply silicone sealant to the engine front cover as shown.
Thickness
1. A: 2.0-3.0 mm {0.079-0.118 in}
2. B: 1.5-2.5 mm {0.059-0.098 in}
Install the engine front cover bolts in the order as shown.

Fig 2: Engine Front Cover Bolt Torque Specifications
Courtesy of MAZDA MOTORS CORP.

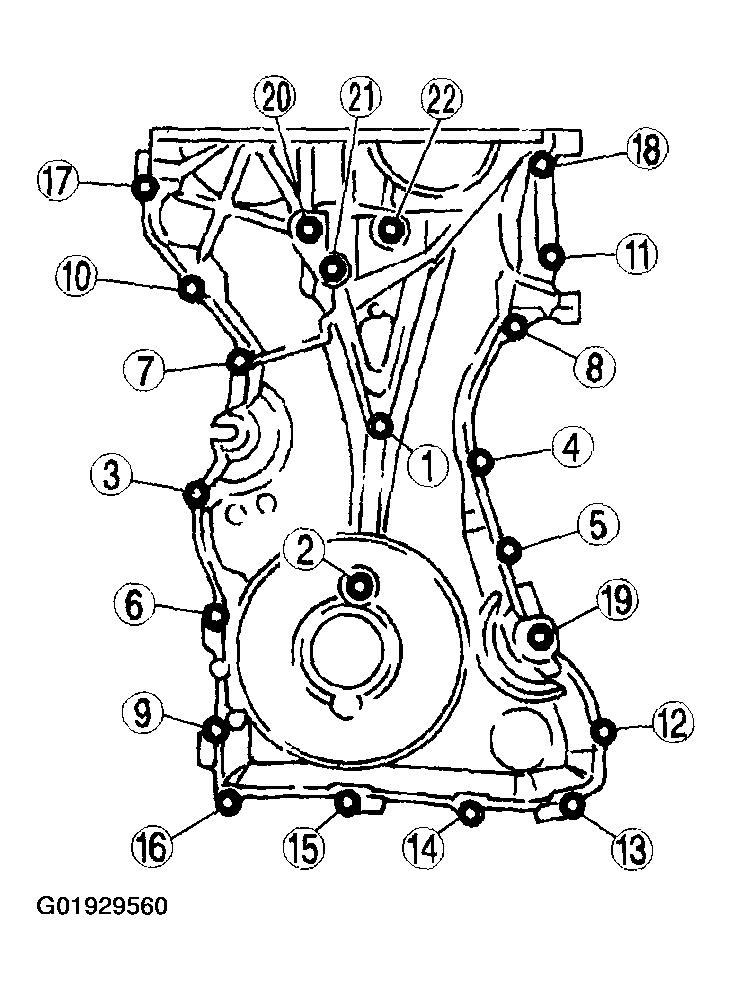

Fig 3: Engine Front Cover Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
