Cylinder Head Cover Installation Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Install the cylinder head cover within 10 min of applying the silicone sealant.

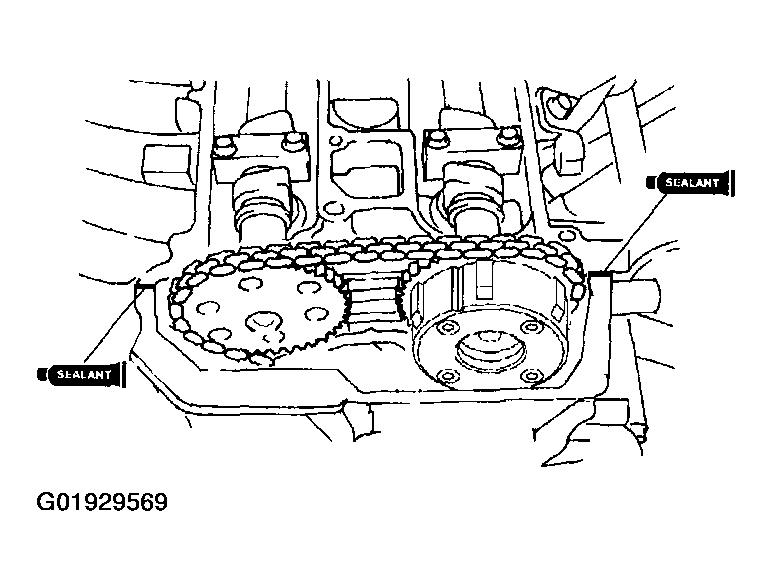

Fig 1: Applying Silicone Sealant

Courtesy of MAZDA MOTORS CORP.

Apply silicone sealant to the mating faces as shown.
Thickness
1. 4.0-6.0 mm {0.16-0.23 in}
Install the cylinder head cover with a new gasket.
Tighten the bolts in the order shown.
Tightening Torque
1. 8.0-11.5 N.m {81.6-117.2 kgf.cm, 70.9-101.7 in.lbf}

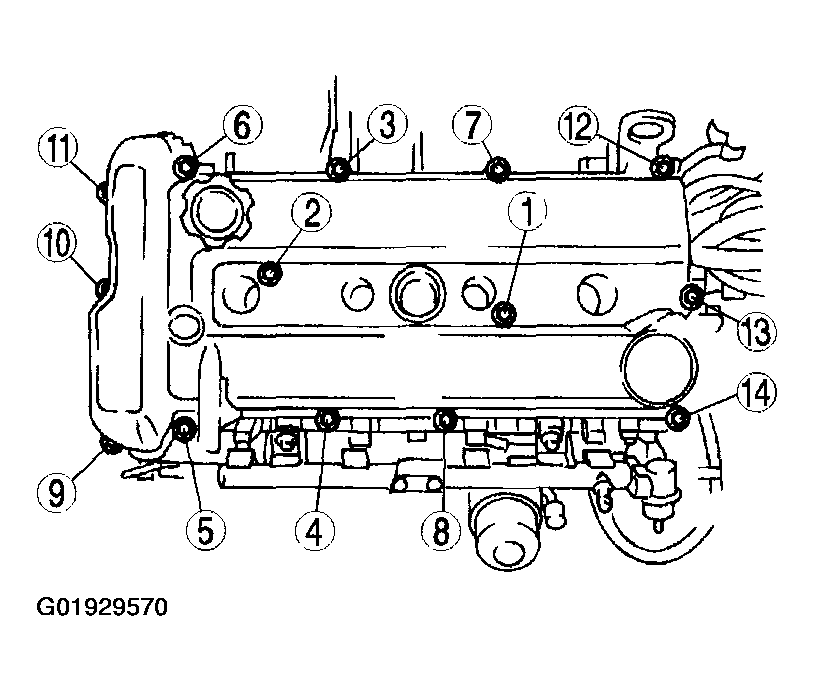

Fig 2: Cylinder Head Cover Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
