Crankshaft Pulley Lock Bolt Installation Note
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

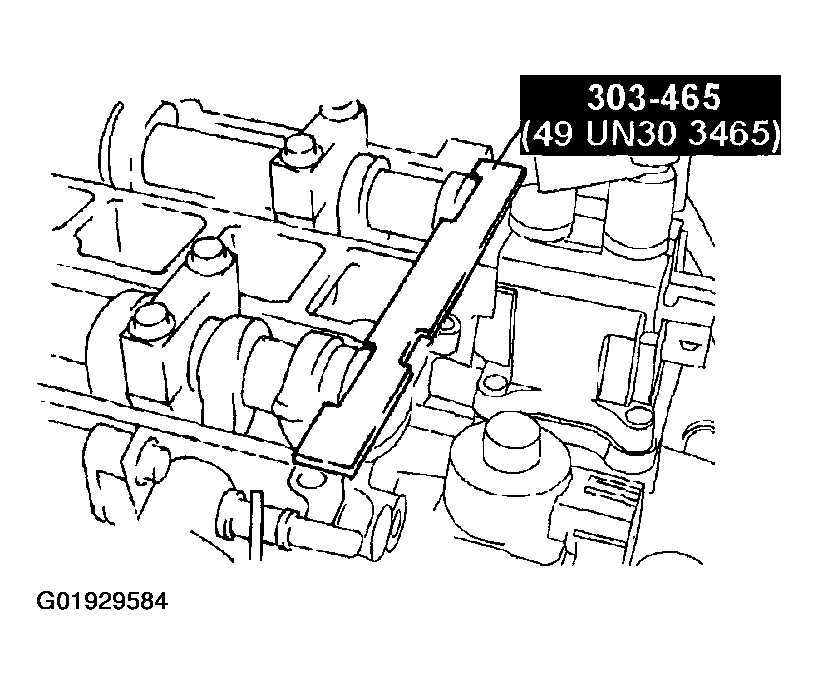

- Install the SST on the camshaft as shown.

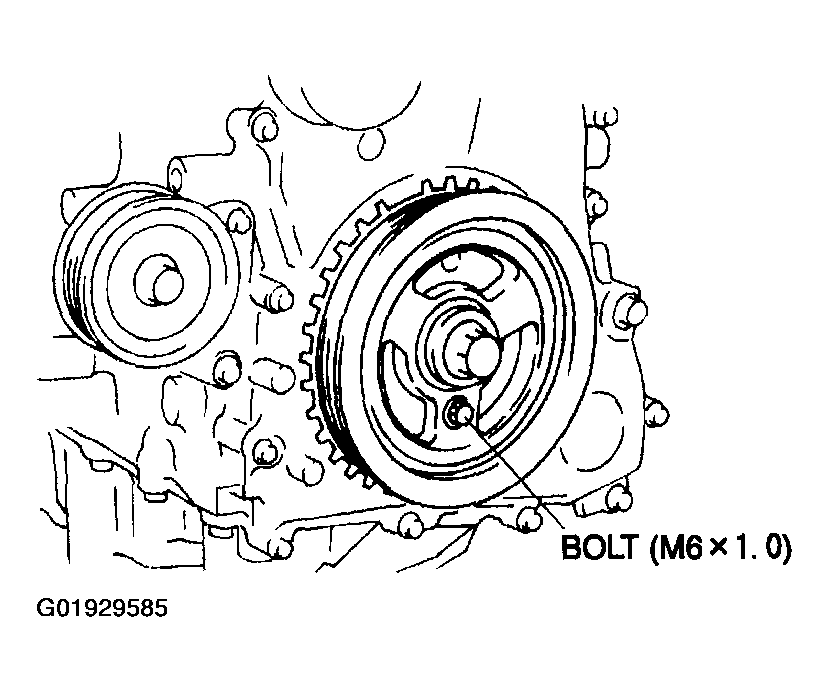

- Install the M6 x 1.0 bolt by hand.
- Rotate the crankshaft clockwise until the crankshaft is in the No.1 cylinder TDC position (until the balance weight is contacting to the SST ).

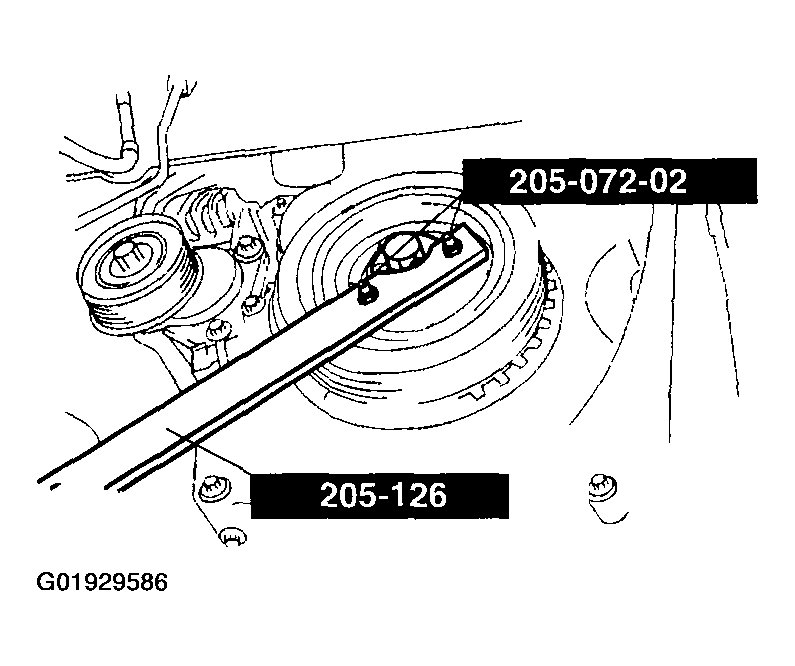

- Hold the crankshaft pulley using the SSTs .
- Tighten the crankshaft pulley lock bolt in the order shown following two steps using the SST
(49 D032 316).
- Tighten to 96-104 N.m {9.8-10.6 kgf.m, 70.9-76.7 ft.lbf}
- Tighten 87°-93°
- Remove the M6 x 1.0 bolt.
- Remove the SST from the camshaft.
- Remove the SST from the cylinder block lower blind plug.
- Rotate the crankshaft two times clockwise until the crankshaft is in the TDC position, reinstall the SSTs
to the camshaft and cylinder block, and inspect the valve timing.
- If not aligned, loosen the crankshaft pulley lock bolt and repeat from Step 1.

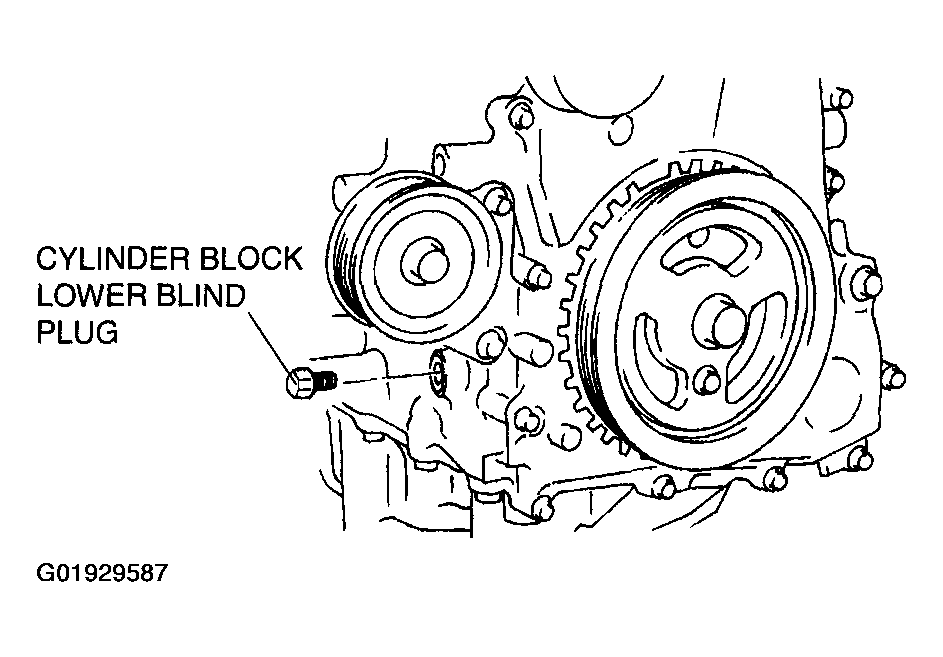

- Install the cylinder block lower blind plug.
Tightening Torque
- 18-22 N.m {1.9-2.2 kgf.m, 13.3-16.2 ft.lbf}
