Idle Speed Inspection
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Idle speed is not adjustable.
- Idle speed verification requires WDS or equivalent.
- Verify that the idle speed (WDS: RPM PID) is within the specification using WDS or equivalent.

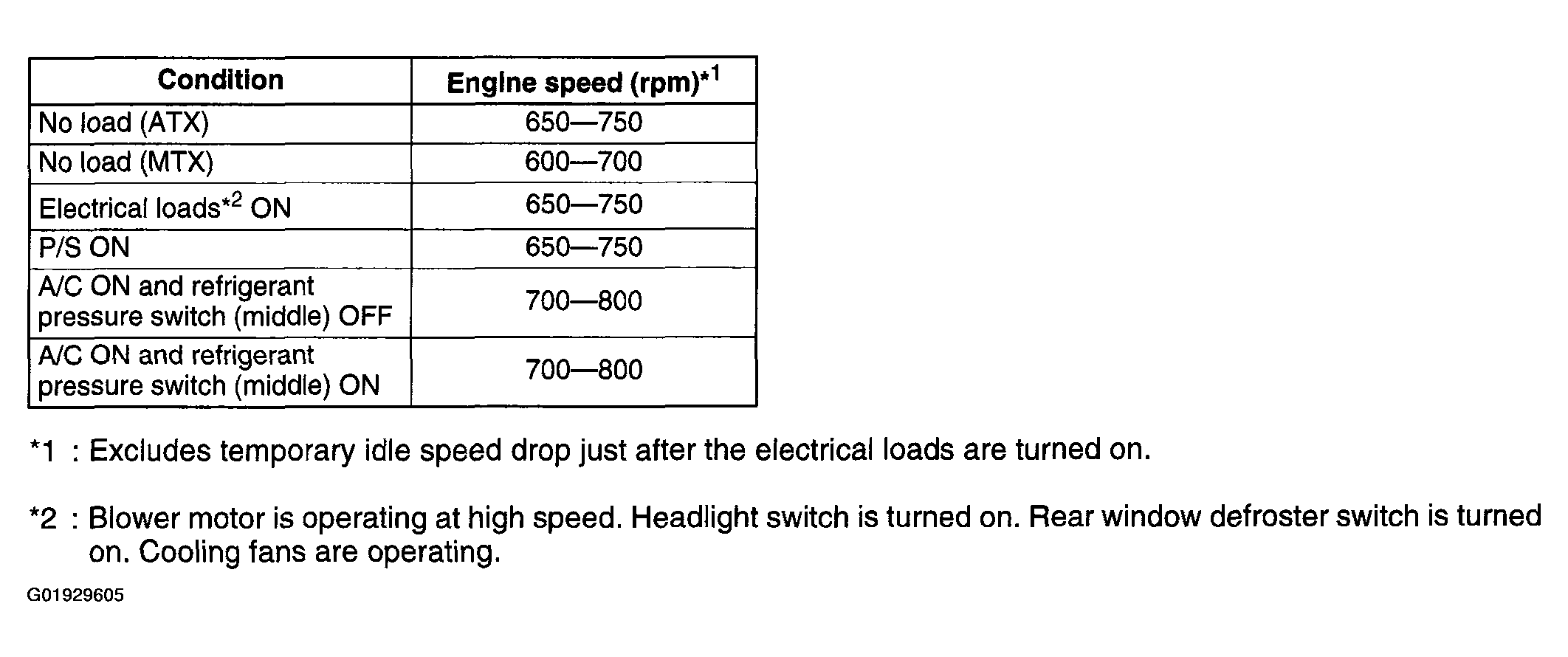

Idle Speed
Courtesy of MAZDA MOTORS CORP.
