No.4 Engine Mount Bracket And No.4 Engine Mount Rubber Removal Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Secure the engine and the transaxle using a hoist.

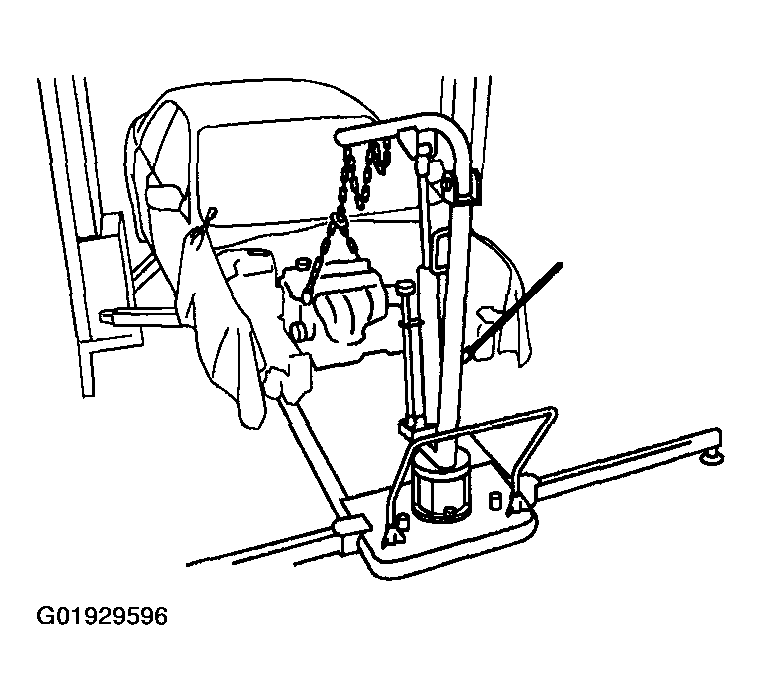

Fig 1: Securing Engine & Transaxle
Courtesy of MAZDA MOTORS CORP.
Remove the No.4 engine mount bracket and engine mount rubber together as a unit.

Fig 2: Removing No.4 Engine Mount Bracket & Engine Mount Rubber
Courtesy of MAZDA MOTORS CORP.
