No.3 Engine Joint Bracket Installation Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the No.3 engine mount bracket stud bolt.
Tightening Torque
1. 7.0-13 N.m {71.4-132.5 kgf.cm, 62.0-115.0 in.lbf}

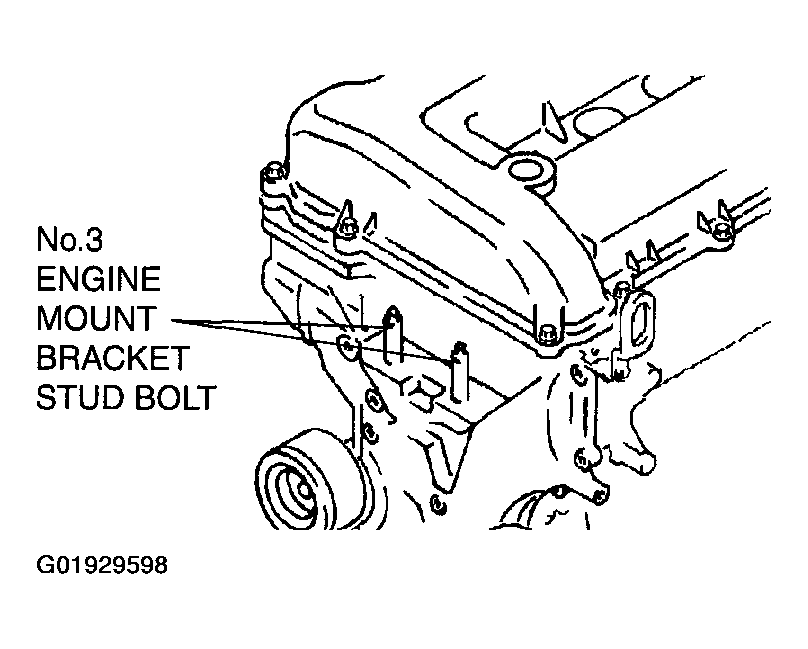

Fig 1: Identifying No.3 Engine Mount Bracket Stud Bolts
Courtesy of MAZDA MOTORS CORP.
Tighten the No.3 engine joint bracket bolt and nut in the order as shown.
Tightening Torque
1. 74.5-104.9 N.m {7.6-10.6 kgf.m, 55.0-76.6 ft.lbf}
Fig 2: No.3 Engine Joint Bracket Bolt & Nut Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
