No.1 Engine Mount Rubber Removal Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove through bolt A on the No.1 engine mount bracket side.

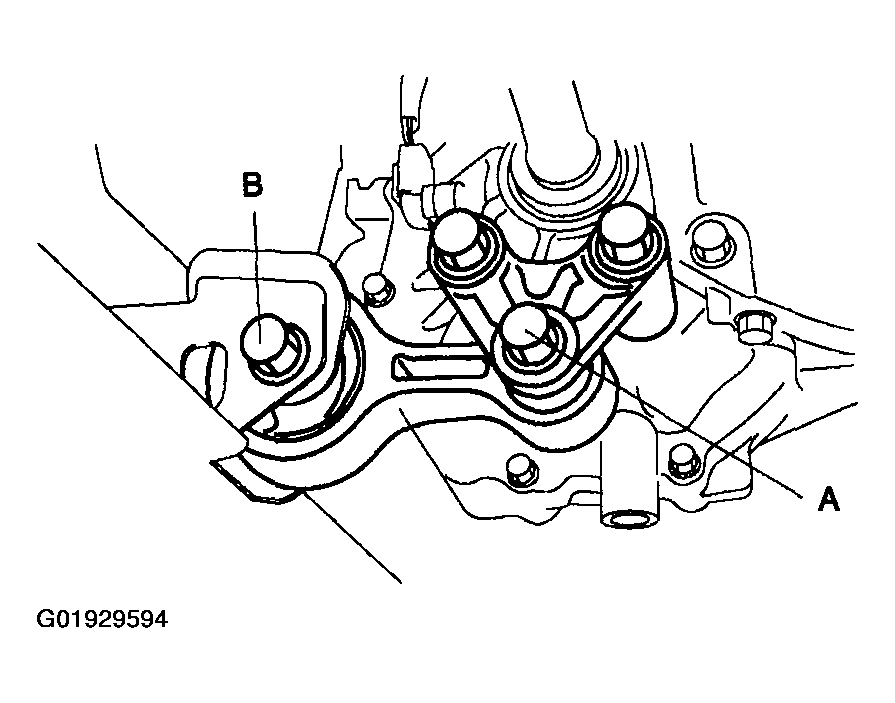

Fig 1: Identifying No.1 Engine Mount Bolts
Courtesy of MAZDA MOTORS CORP.
Loosen through bolt B on the crossmember side until approximately three pitches are showing.
NOTE:
- Do not remove the No.1 engine mount rubber from the vehicle.

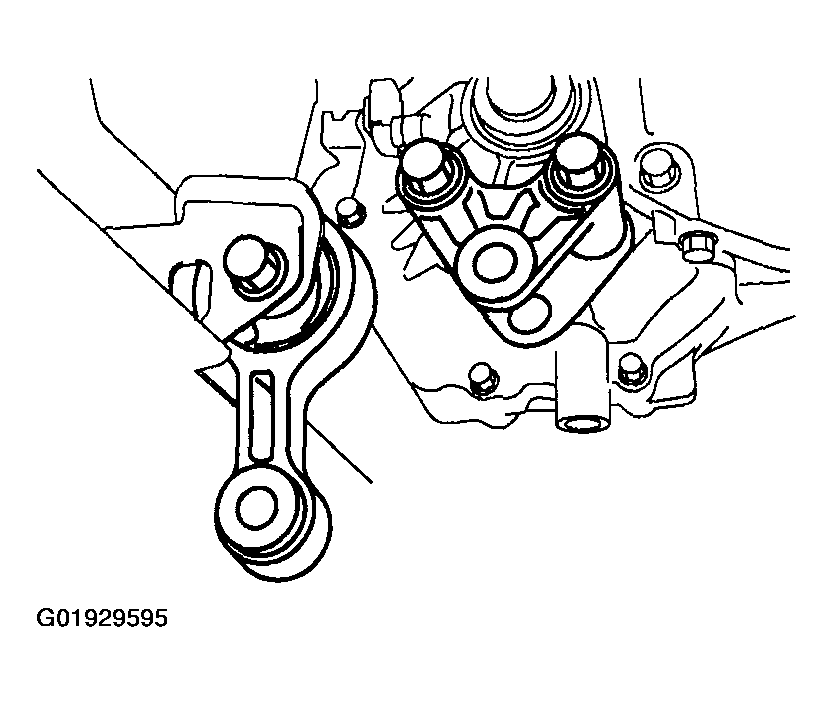

Fig 2: Leaving No.1 Engine Mount
Courtesy of MAZDA MOTORS CORP.
