No.1 Engine Mount Rubber Installation Note
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

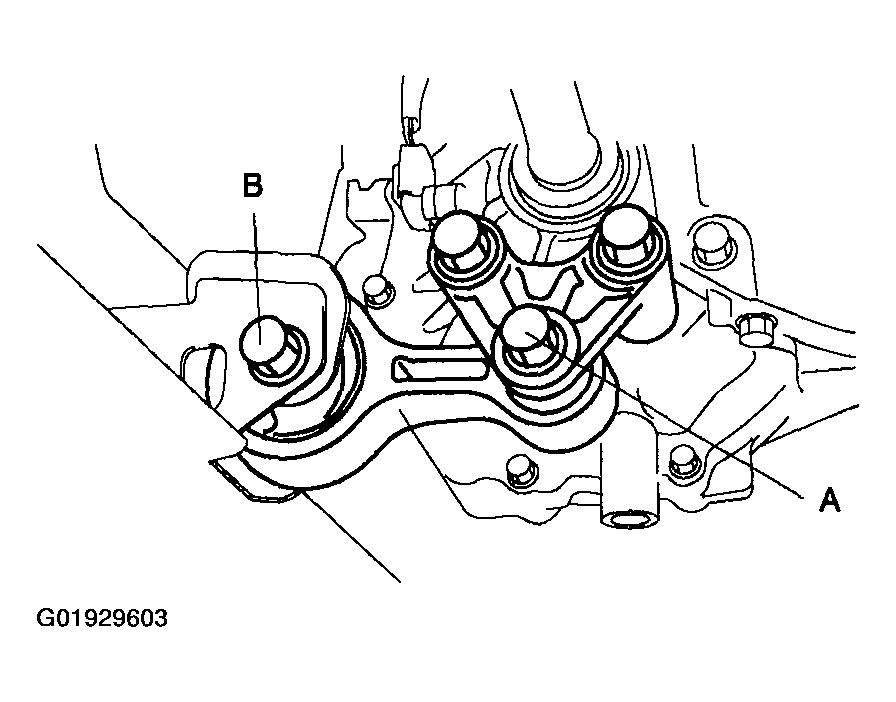

- Tighten through bolt A on the No.1 engine mount bracket.
Tightening Torque
- 85.3-116.6 N.m {8.7-11.8 kgf.m, 63-85 ft.lbf}
- Tighten through bolt B on the crossmember side.
Tightening Torque
- 93.1-116.6 N.m {9.5-11.8 kgf.m, 68.7-85.9 ft.lbf}
