No.1 Engine Mount Bracket Installation Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Tighten No.1 engine mount bracket bolt A.
Tightening Torque
1. 93.1-116.6 N.m {9.5-11.8 kgf.m, 68.7-85.9 ft.lbf}
Tighten No.1 engine mount bracket bolt B.
Tightening Torque
1. 93.1-116.6 N.m {9.5-11.8 kgf.m, 68.7-85.9 ft.lbf}

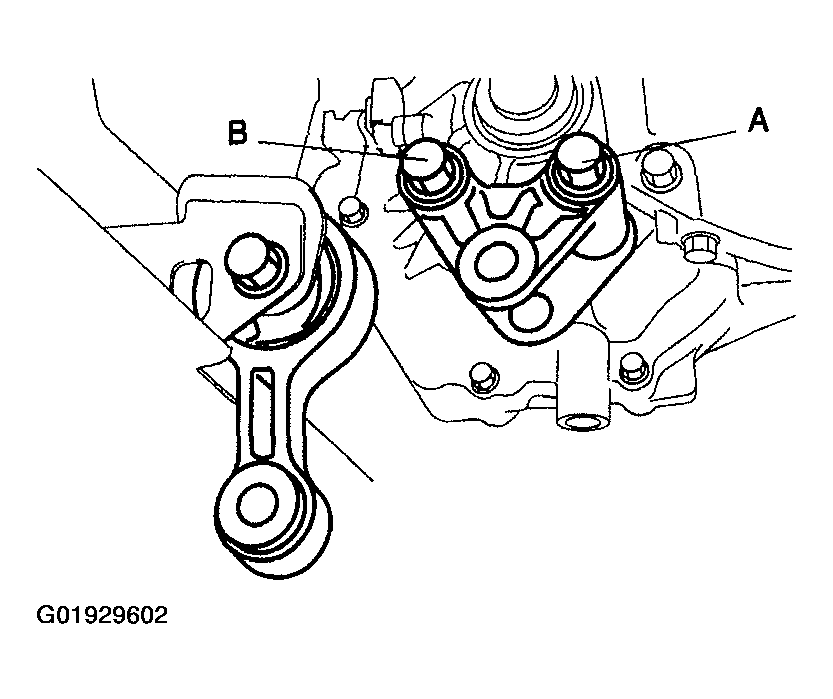

Fig 1: Identifying No.1 Engine Mount Bracket Bolts
Courtesy of MAZDA MOTORS CORP.
