Drive Belt Inspection: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Front and water pump drive belt deflection/tension inspection is not necessary because of the use of the front drive belt auto tensioner.

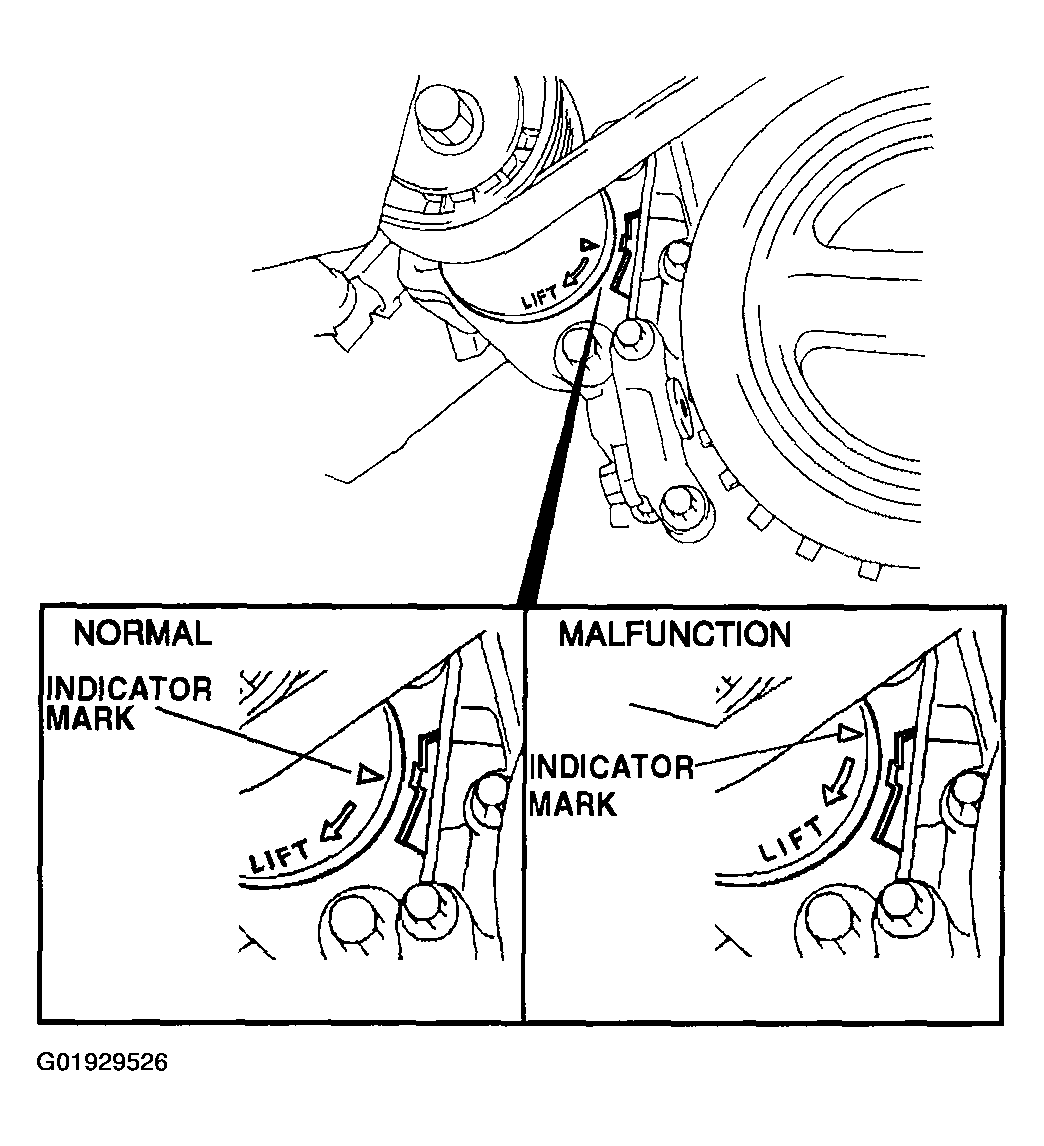

Fig 1: Identifying Drive Belt Auto Tensioner Wear Indicator
Courtesy of MAZDA MOTORS CORP.
