Cylinder Head Removal Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the cylinder head bolts in two or three steps in the order shown.

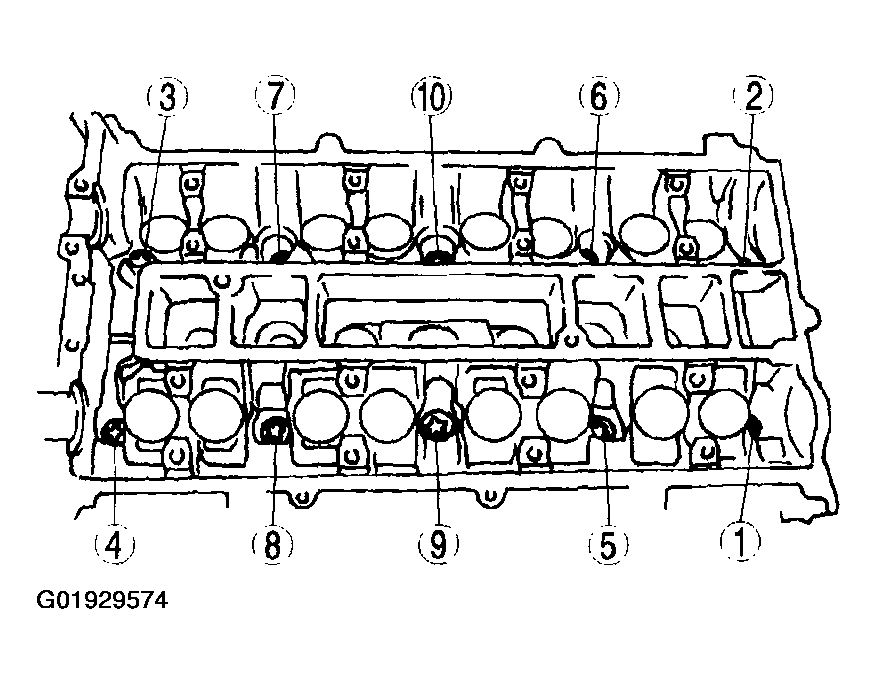

    Fig 1: Cylinder Head Bolt Loosening Sequence
    G01929574Courtesy of MAZDA MOTORS CORP.
