Camshaft Removal Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The cylinder head and the camshaft caps are numbered to be reassembled in their original position correctly. When removed, keep the caps with the cylinder head they were removed from. Do not mix the caps.
  1. Loosen the camshaft cap bolts in two or three steps in the order shown.

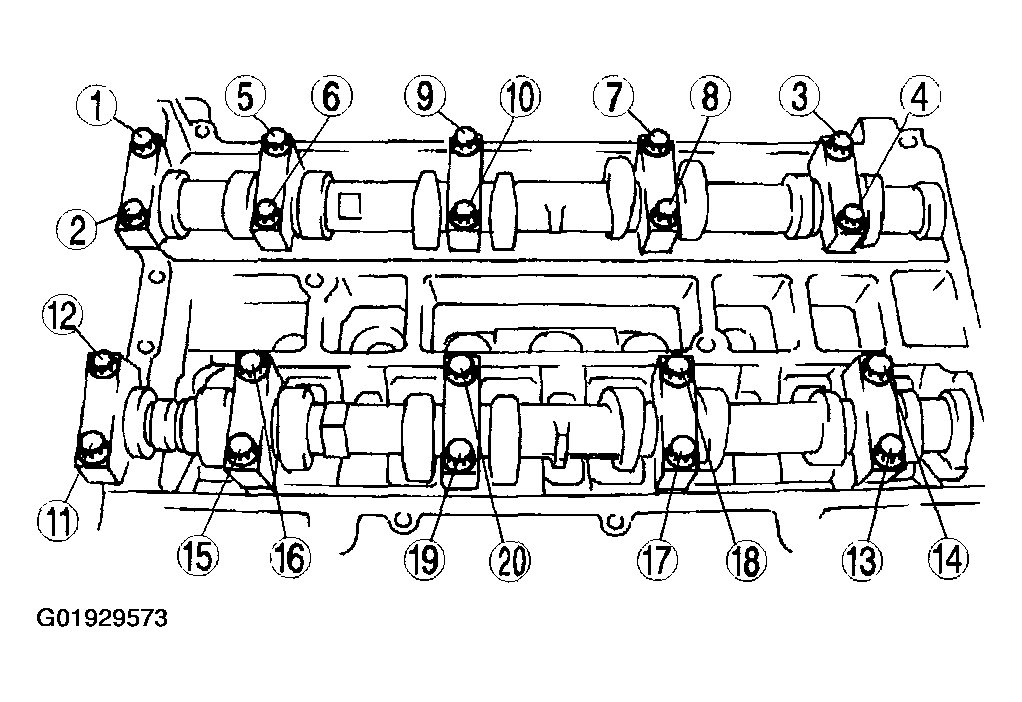

    Fig 1: Camshaft Cap Bolt Loosening Sequence
    G01929573Courtesy of MAZDA MOTORS CORP.
