Removal & Installation: Pcm: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the TCM. See TCM  .
  3. Remove in the order indicated in the illustration.
  4. Install in the reverse order of removal.

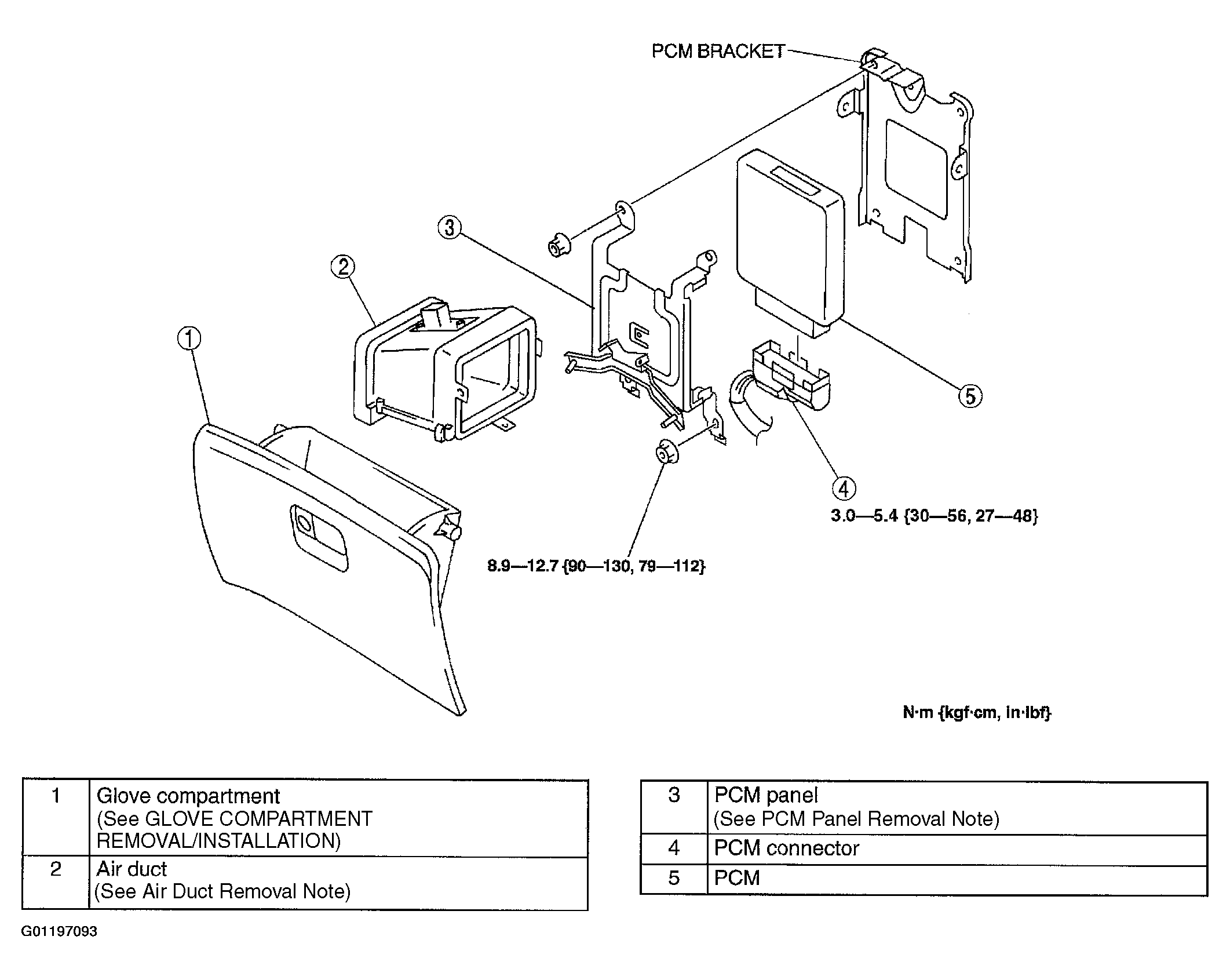

Fig 1: Removing PCM
G01197093Courtesy of MAZDA MOTORS CORP.
