Removal & Installation: TCM

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the floor mat of passenger seat.
  3. Remove in the order indicated in the illustration.
  4. Install in the reverse order of removal.
  5. Install the floor mat of passenger seat.
  6. Connect the negative battery cable.

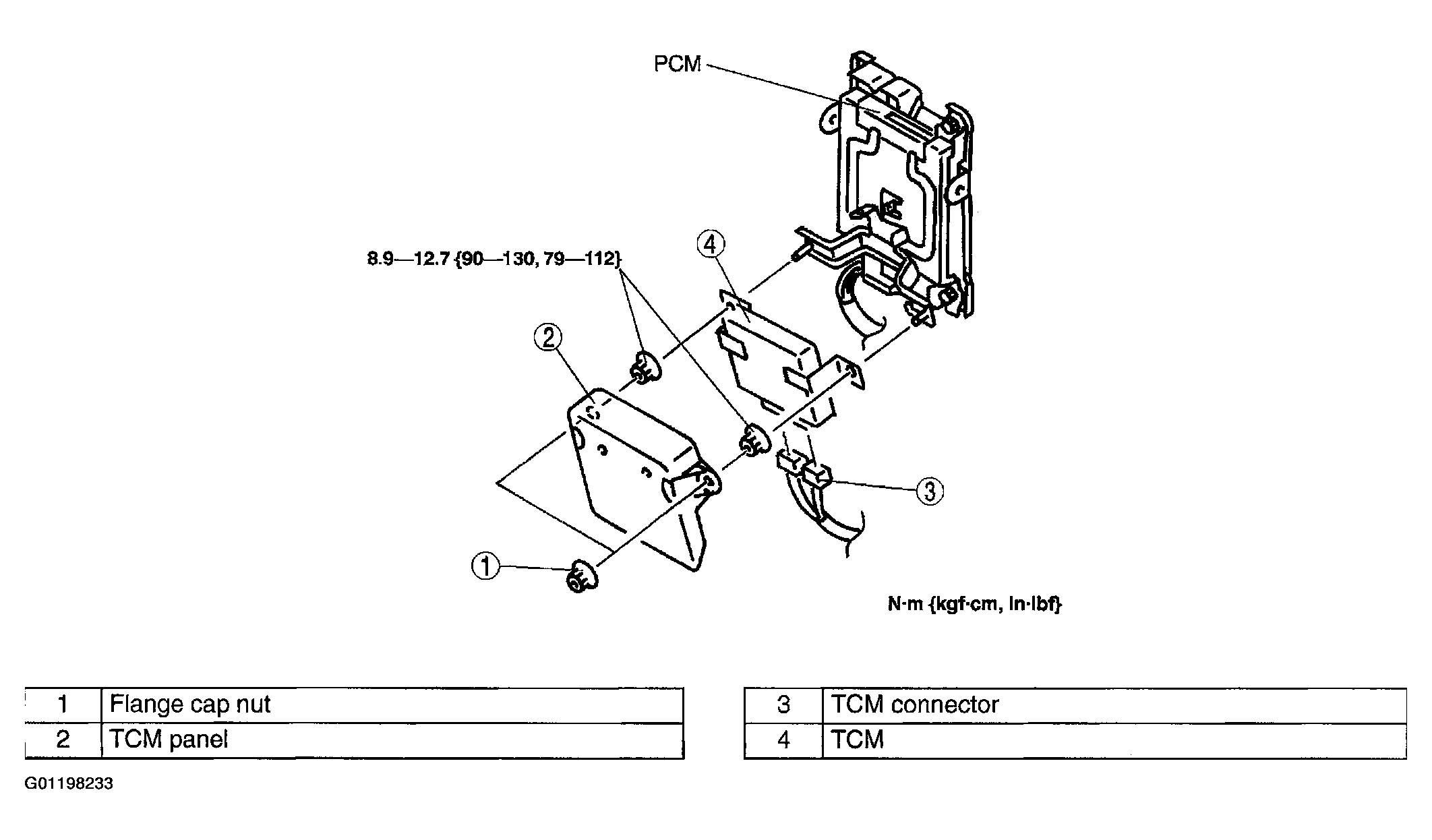

Fig 1: Removing TCM
G01198233Courtesy of MAZDA MOTORS CORP.
